Product Details | DRAIN COCK

4820-01-132-1603 An item with one mounting end and one free flowing end with a metal to metal valve closure. It is designed to drain fluids from radiators, boilers, and similar items.

Part Alternates: 321E04, 321-E-04, 321E0-4, 321E14, 321E1-4, 4820-01-132-1603, 01-132-1603, 4820011321603, 011321603

Valves | Valves, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
48 24 MAY 1982 01-132-1603

Drawings & Photos | NSN 4820-01-132-1603


Demand History | NSN 4820-01-132-1603

Part Number Request Date QTY Origin
4820-01-132-1603 2021-05-134 8 US

Cross Reference | NSN 4820-01-132-1603

Part Number Cage Code Manufacturer
321-E-04 09990 PARKER-HANNIFIN CORPORATION DBA HYDRAULIC VALVE DIV
321-E-04 30327 IMPERIAL
321-E-04 82271 PARKER-HANNIFIN CORPORATION DBA HYDRAULIC CARTRIDGE SYSTEMS DIV
321E0-4 30327 IMPERIAL
321E1-4 30327 IMPERIAL

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4820-01-132-1603

Technical Data | NSN 4820-01-132-1603

Characteristic Specifications

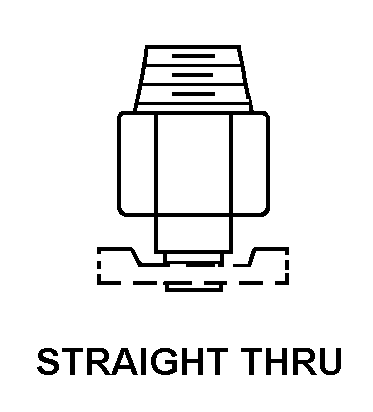

STYLE DESIGNATOR A3 STRAIGHT THRU
VALVE OPERATION METHOD MANUAL
CONNECTION TYPE THREADED EXTERNAL PIPE 1ST END
CONNECTION STYLE B46B PLAIN 1ST END
THREAD SERIES DESIGNATOR NPT 1ST END
NOMINAL THREAD SIZE 0.250 INCHES 1ST END
THREAD DIRECTION RIGHT-HAND 1ST END

Restrictions/Controls & Freight Information | NSN 4820-01-132-1603

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 051080 FAUCETS,BIBCOCKS,GATES VALVES
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 576 unknown
Originating Activity Code AX Defense Supply Center Columbus
Columbus, OH 43216-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
