NSN 4820-01-131-5918 20058, 20058E51M, 8002
Product Details | SAFETY RELIEF VALVE
4820-01-131-5918 A valve designed to automatically release excessive pressures. It is actuated by static pressure upstream of the valve and is used as a safety valve or relief valve, and may be set to close at a predetermined pressure. It is not designed for regulation of continuously fluctuating loads. It may be inline or cartridge (manifold) design. Excludes VALVE (1), RELIEF, PRESSURE AND TEMPERATURE.
Part Alternates: 20058, 20058E51M, 8002, 4820-01-131-5918, 01-131-5918, 4820011315918, 011315918
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 13 MAY 1982 | 01-131-5918 | 05488 ( VALVE, SAFETY RELIEF ) |
Drawings & Photos | NSN 4820-01-131-5918
Demand History | NSN 4820-01-131-5918
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2005801S0025 | 2024-05-134 | 1 | DIBBS |
| 20058 | 2021-12-349 | 1 | DIBBS |
| 20058E51M | 2021-12-349 | 1 | DIBBS |
Cross Reference | NSN 4820-01-131-5918
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 20058 | 01343 | ANDERSON GREENWOOD LP DBA ANDERSON GREENWOOD CROSBY |
| 20058 | 15187 | PENTAIR VALVES & CONTROLS US LP DBA NAVY PRODUCT TEAM |
| 20058E51M | 01343 | ANDERSON GREENWOOD LP DBA ANDERSON GREENWOOD CROSBY |
| 20058E51M | 15187 | PENTAIR VALVES & CONTROLS US LP DBA NAVY PRODUCT TEAM |
| 8002 | 01343 | ANDERSON GREENWOOD LP DBA ANDERSON GREENWOOD CROSBY |
| 8002 | 15187 | PENTAIR VALVES & CONTROLS US LP DBA NAVY PRODUCT TEAM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-131-5918
Related Products | NSN 4820-01-131-5918
Technical Data | NSN 4820-01-131-5918
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BODY NICKEL ALLOY FLOW CONTROL DEVICE NICKEL ALLOY SEAT STEEL COMP 316 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-390,ALLOY D4/D/ FED SPEC SINGLE MATERIAL RESPONSE BODY QQ-C-390,ALLOY D4/D/ FED SPEC 1ST MATERIAL RESPONSE OR QQ-N-281 FED SPEC 2ND MATERIAL RESPONSE FLOW CONTROL DEVICE QQ-C-390,ALLOY D4/D/ FED SPEC 1ST MATERIAL RESPONSE OR QQ-N-281 FED SPEC 2ND MATERIAL RESPONSE SEAT |
| STYLE DESIGNATOR | A7 ANGLE |
| FLOW CONTROL DEVICE | DISK |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | UNTHREADED INTERNAL PIPE ALL ENDS |

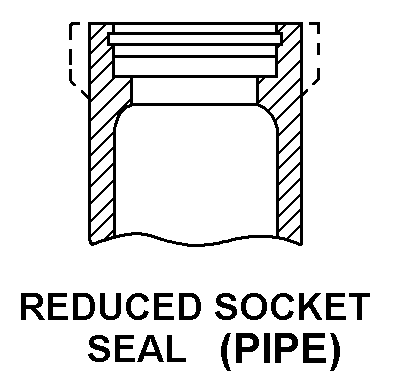

| CONNECTION STYLE | G25B REDUCED GASKET SEAL ALL ENDS |
| NOMINAL PIPE SIZE ACCOMMODATED | 0.500 INCHES ALL ENDS |
| BONNET TYPE | INSIDE SPRING |
| BONNET ATTACHMENT METHOD | BOLTED |
| ADJUSTABLE PRESSURE RANGE | 25.0 TO 29.0 POUNDS PER SQUARE INCH |
| III END ITEM IDENTIFICATION | COMBAT SYSTEM SUPPORT EQUIPMENT |
Restrictions/Controls & Freight Information | NSN 4820-01-131-5918
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-131-5918
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
