NSN 4820-01-131-3043 B122170000, B-12217-0000, B-12217-IN-0000 1 1-2IN
Product Details | LIFT-CHECK VALVE
4820-01-131-3043 A valve with a stem that may be mechanically actuated to two different positions by rotary or linear motion. In the first position, one side of the valve disk is located against the seat permitting movement of the disk in a manner that will allow a flow of fluid in one direction through the valve. In the second position, the valve disk is lifted from the seat to allow a flow of fluid in either direction through the valve. The valve disk may be spring loaded. See also VALVE, STOP-CHECK and VALVE, STOP-LIFT-CHECK.
Part Alternates: B122170000, B-12217-0000, B-12217-IN-0000 1 1-2IN, B12217IN0000112IN, 4820-01-131-3043, 01-131-3043, 4820011313043, 011313043
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 07 MAY 1982 | 01-131-3043 | 27828 ( VALVE, LIFT-CHECK ) |
Drawings & Photos | NSN 4820-01-131-3043
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-131-3043
Technical Data | NSN 4820-01-131-3043
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 922 OR COPPER ALLOY 836 BODY COPPER ALLOY 922 OR COPPER ALLOY 836 FLOW CONTROL DEVICE ASBESTOS PACKING COPPER ALLOY 922 OR COPPER ALLOY 836 SEAT COPPER ALLOY 462 OR COPPER ALLOY 464 OR COPPER ALLOY 482 OR COPPER ALLOY 485 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-390,ALLOY D4 FED SPEC 1ST MATERIAL RESPONSE OR QQ-C-390,ALLOY B5 FED SPEC 2ND MATERIAL RESPONSE BODY QQ-C-390,ALLOY D4 FED SPEC 1ST MATERIAL RESPONSE OR QQ-C-390,ALLOY B5 FED SPEC 2ND MATERIAL RESPONSE FLOW CONTROL DEVICE QQ-C-390,ALLOY D4 FED SPEC 1ST MATERIAL RESPONSE OR QQ-C-390,ALLOY B5 FED SPEC 2ND MATERIAL RESPONSE SEAT |

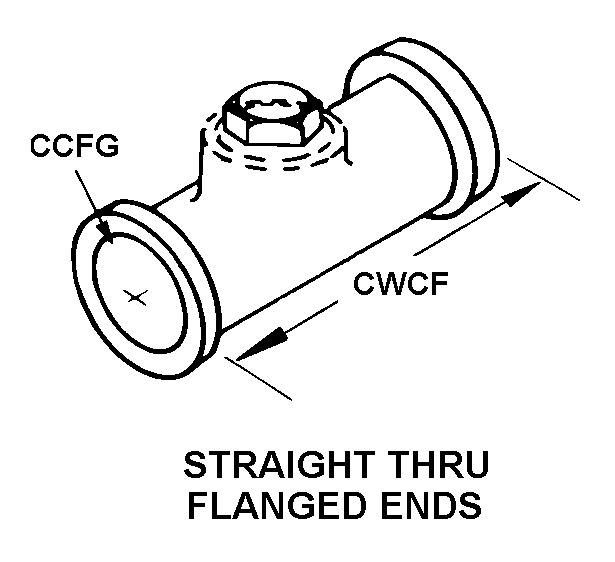

| STYLE DESIGNATOR | A2A STRAIGHT THRU FLANGED ENDS |
| VALVE SIZE | 1.500 INCHES |
| FACE TO FACE DISTANCE | 5.000 INCHES |
| FLOW CONTROL DEVICE | DISK |
| MAXIMUM OPERATING PRESSURE | 150.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | FLANGE ALL ENDS |
| FLANGE SHAPE | ROUND WITH HOLES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER | 5.000 INCHES ALL ENDS |
| NOMINAL THICKNESS | 0.440 INCHES ALL ENDS |
| BOLT HOLE QUANTITY | 4 ALL ENDS |
| BOLT HOLE NOMINAL DIAMETER | 0.620 INCHES ALL ENDS |
| BOLT CIRCLE NOMINAL DIAMETER | 3.880 INCHES ALL ENDS |
| FLANGE FACE DESIGN | PLAIN ALL ENDS |
| MOUNTING POSITION | HORIZONTAL |
| BONNET TYPE | OUTSIDE SCREW-YOKE |
| BONNET ATTACHMENT METHOD | BOLTED |
| FURNISHED ITEMS AND QUANTITY | 1 HANDWHEEL |
Restrictions/Controls & Freight Information | NSN 4820-01-131-3043
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-131-3043
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
