Product Details | CALIBRATED FLOW VALVE

4820-01-123-7658 A valve specifically designed to automatically maintain a predetermined discharge flow rate which may be adjustable within a specific range. It is designed to be used with various fluids and may be preset and/or adjustable. It may be in-line or cartridge (manifold) design. Excludes VALVE, REGULATING, FEED WATER; VALVE, REGULATING, FLUID PRESSURE; VALVE, REGULATING, FUEL OIL; VALVE, REGULATING, OIL PRESSURE, AUTOMATIC PILOT; VAVLE, REGULATING, TEMPERATURE; VALVE, ANGLE; and VALVE, GLOBE.

Part Alternates: 11266, 112661, 11266-1, 145HS1422, 145HS142-2, 428321, 4820-01-123-7658, 01-123-7658, 4820011237658, 011237658

Valves | Valves, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
48 17 DEC 1981 01-123-7658

Drawings & Photos | NSN 4820-01-123-7658


Demand History | NSN 4820-01-123-7658

Part Number Request Date QTY Origin
11266-1 2024-01-29 4 DIBBS
11266-1 2024-01-08 1 DIBBS
11266-1 2023-07-201 4 DIBBS
11266-1 2020-01-15 13 DIBBS
11266-1 2019-12-353 13 DIBBS
4820-01-123-7658 2019-09-261 1 DIBBS-RFPs
4820-01-123-7658 2013-04-101 24 DIBBS
4820-01-123-7658 2012-11-334 31 DIBBS
145HS1422 2011-12-363 1 US
4820-01-123-7658 2011-09-264 21 DIBBS
4820-01-123-7658 2011-08-213 19 DIBBS
4820-01-123-7658 2011-06-174 20 DIBBS
4820-01-123-7658 2011-05-136 20 DIBBS
4820-01-123-7658 2011-03-75 20 DIBBS
4820-01-123-7658 2011-02-33 8 DIBBS
4820-01-123-7658 2009-11-327 1 DIBBS
4820-01-123-7658 2009-10-302 1 DIBBS
4820-01-123-7658 2009-04-114 14 DIBBS
4820-01-123-7658 2009-01-07 40 DIBBS
4820-01-123-7658 2008-12-358 1 DIBBS
4820-01-123-7658 2008-11-323 4 DIBBS

Cross Reference | NSN 4820-01-123-7658

Part Number Cage Code Manufacturer
11266 16780 EATON AEROSPACE LLC DBA SOLENOID VALVES
11266-1 16780 EATON AEROSPACE LLC DBA SOLENOID VALVES
145HS142-2 77272 THE BOEING COMPANY DBA BOEING
428321 62983 EATON AEROSPACE LLC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4820-01-123-7658

Technical Data | NSN 4820-01-123-7658

Characteristic Specifications
BODY MATERIAL STEEL, QQ-S-763, CLASS 440C OR STEEL, AMS 5643
PACKING MATERIAL RUBBER, SYNTHETIC
FLOW CONTROL DEVICE DISK
FLOW CONTROL DEVICE MATERIAL STEEL, CORROSION RESISTING, QQ-S-763, CLASS 302, 303, 304, 305, 310, OR 316
END CONNECTION QUANTITY 2
FIRST END CONNECTION TYPE THREADED EXTERNAL TUBE

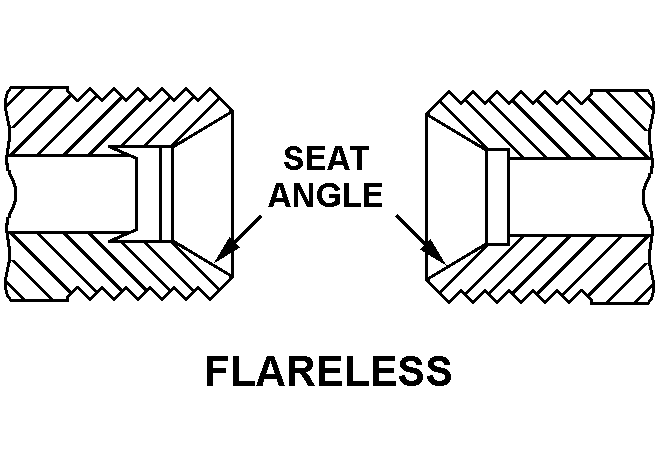

FIRST END STYLE DESIGNATOR D5 FLARELESS
FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED 0.500 INCHES NOMINAL
FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR 0.7500-16 UNJF
FIRST END THREAD CLASS 3A
FIRST END THREAD DIRECTION RIGHT-HAND
FIRST END SEAT ANGLE IN DEG 24.0
SECOND END RELATIONSHIP WITH FIRST END NOT IDENTICAL
SECOND END CONNECTION TYPE THREADED EXTERNAL BOSS

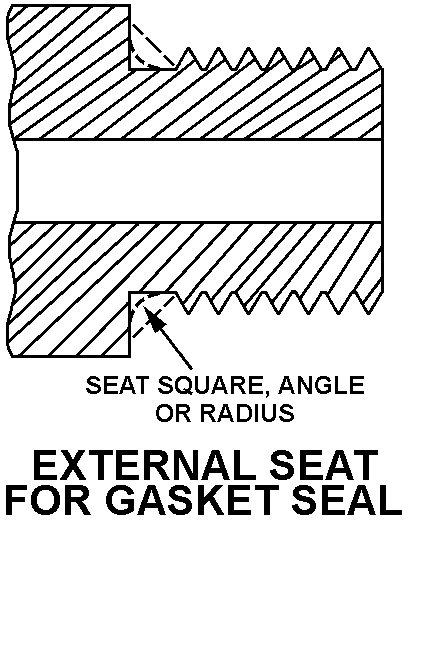

SECOND END STYLE DESIGNATOR D10 EXTERNAL SEAT FOR GASKET SEAL
SECOND END THREAD SIZE AND SERIES/TYPE DESIGNATOR 1.3125-12 UNJ
SECOND END THREAD CLASS 3A
SECOND END THREAD DIRECTION RIGHT-HAND

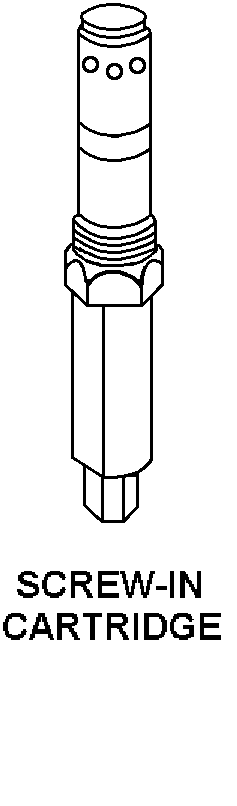

BODY STYLE A45 SCREW-IN CARTRIDGE
MEDIA FOR WHICH DESIGNED HYDRAULIC FLUID, PETROLEUM BASE
REGULATION TYPE AUTOMATIC SINGLE STAGE
TEMP RATING -50.0 DEG FAHRENHEIT MINIMUM AND 160.0 DEG FAHRENHEIT MAXIMUM
MAXIMUM INLET PRESSURE RATING 3300.0 POUNDS PER SQUARE INCH
VALVE DISCHARGE FLOW RATE 5.5 GALLONS PER MINUTE
SPECIAL FEATURES 1.0 GPM BY-PASS RATE AT 50.0 PSID MAX 160.0 DEG F; HEX WRENCHING FACILITY
III UNPACKAGED UNIT WEIGHT 0.50 POUNDS
MANUFACTURERS CODE 77272
MFR SOURCE CONTROLLING REFERENCE 145HS142-2
