NSN 4820-01-123-2904 A4494, 01-123-2904, 011232904
Product Details | DRAIN COCK
4820-01-123-2904 An item with one mounting end and one free flowing end with a metal to metal valve closure. It is designed to drain fluids from radiators, boilers, and similar items.
Part Alternates: A4494, 4820-01-123-2904, 01-123-2904, 4820011232904, 011232904
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 10 DEC 1981 | 01-123-2904 | 16988 ( COCK, DRAIN ) |
Drawings & Photos | NSN 4820-01-123-2904
Demand History | NSN 4820-01-123-2904
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| A4494 | 2024-05-149 | 22 | DIBBS |
| A4494 | 2024-05-134 | 22 | DIBBS |
| A4494 | 2024-05-123 | 22 | DIBBS |
| A4494 | 2021-01-28 | 45 | DIBBS |
| A4494 | 2020-10-293 | 21 | DIBBS |
| A4494 | 2020-10-282 | 21 | DIBBS |
| A4494 | 2020-10-281 | 7 | DIBBS |
| A4494 | 2020-09-264 | 7 | DIBBS |
| A4494 | 2020-09-247 | 6 | DIBBS |
| A4494 | 2020-08-223 | 15 | DIBBS |
| A4494 | 2020-07-212 | 15 | DIBBS |
| A4494 | 2020-04-111 | 11 | DIBBS |
| A4494 | 2020-04-100 | 11 | DIBBS |
| A4494 | 2020-02-58 | 28 | DIBBS |
| A4494 | 2019-05-133 | 20 | DIBBS |
| A4494 | 2019-05-122 | 20 | DIBBS |
| 4820-01-123-2904 | 2018-11-317 | 31 | DIBBS |
| 4820-01-123-2904 | 2018-11-305 | 31 | DIBBS |
| 4820-01-123-2904 | 2018-09-263 | 23 | DIBBS |
| 4820-01-123-2904 | 2018-08-242 | 9 | DIBBS |
| 4820-01-123-2904 | 2018-08-214 | 21 | DIBBS |
| 4820-01-123-2904 | 2017-11-334 | 10 | DIBBS |
| 4820-01-123-2904 | 2017-09-264 | 10 | DIBBS |
| 4820-01-123-2904 | 2016-11-312 | 14 | DIBBS |
| 4820-01-123-2904 | 2014-11-313 | 24 | DIBBS |
| 4820-01-123-2904 | 2014-08-222 | 155 | DIBBS |
| 4820-01-123-2904 | 2013-10-304 | 27 | DIBBS |
| 4820-01-123-2904 | 2012-12-349 | 24 | DIBBS |
| 4820-01-123-2904 | 2012-09-248 | 22 | DIBBS |
| 4820-01-123-2904 | 2011-09-245 | 13 | DIBBS |
| 4820-01-123-2904 | 2011-08-213 | 12 | DIBBS |
| 4820-01-123-2904 | 2011-06-180 | 14 | DIBBS |
| 4820-01-123-2904 | 2011-03-67 | 18 | DIBBS |
| 4820-01-123-2904 | 2011-01-18 | 8 | DIBBS |
Cross Reference | NSN 4820-01-123-2904
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A4494 | 97484 | EATON AEROSPACE LLC DIV FUEL AND ELECTRICAL DISTRIBUTION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-123-2904
Related Products | NSN 4820-01-123-2904
Technical Data | NSN 4820-01-123-2904
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |

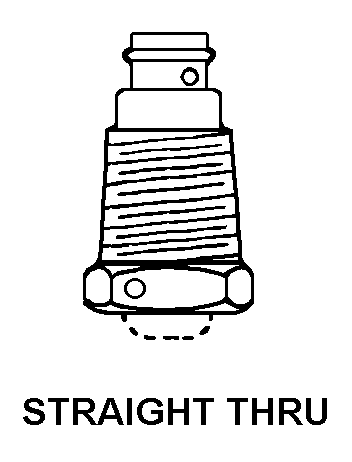

| STYLE DESIGNATOR | A16 STRAIGHT THRU |
| FLOW CONTROL DEVICE | PLUG |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END |
| CONNECTION STYLE | B46A PLAIN 1ST END |
| THREAD SERIES DESIGNATOR | UN 1ST END |
| NOMINAL THREAD SIZE | 1.062 INCHES 1ST END |
| THREAD QUANTITY PER INCH | 12 1ST END |
| THREAD CLASS | 3A 1ST END |
| THREAD DIRECTION | RIGHT-HAND 1ST END |
Restrictions/Controls & Freight Information | NSN 4820-01-123-2904
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-123-2904
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
