NSN 4820-01-115-0800 5102177934C71, 510-2177934-C71, 8032177934
Product Details | GLOBE VALVE
4820-01-115-0800 A valve with one inlet and one outlet connection with outlet flow parallel to inlet flow. The flow is controlled by the action of a stem which lifts the disk perpendicularly off the center axis of its seat. The stem is at a 90 degree (1.5708 radians) angle to axis of flow. Excludes VALVE, STOP-CHECK; COCK, SHUTOFF, SCREW STEM; and VALVE, SOLENOID.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 5102177934C71, 510-2177934-C71, 8032177934, 803-2177934, 803-2177934-716, 8032177934C716, 803-2177934-C716, 8032177934C716AF, 803-2177934-C716AF, 4820-01-115-0800, 01-115-0800, 4820011150800, 8032177934716, 011150800
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 27 JUN 1981 | 01-115-0800 | 05485 ( VALVE, GLOBE ) |
Drawings & Photos | NSN 4820-01-115-0800
Demand History | NSN 4820-01-115-0800
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-01-115-0800 | 2022-02-46 | 7 | DIBBS |
| 4820-01-115-0800 | 2021-05-129 | 10 | DIBBS |
| 4820-01-115-0800 | 2021-02-46 | 9 | DIBBS |
| 4820-01-115-0800 | 2020-05-146 | 8 | DIBBS |
| 4820-01-115-0800 | 2020-04-114 | 1 | DIBBS-RFPs |
| 8032177934 | 2013-01-22 | 1 | United States |
| 8032177934 | 2013-01-21 | 1 | United States |
| 4820-01-115-0800 | 2008-12-345 | 5 | DIBBS |
Cross Reference | NSN 4820-01-115-0800
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-115-0800
Technical Data | NSN 4820-01-115-0800
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE PACKING NICKEL ALLOY SEAT |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-C-15726,COMP 70-30 MIL SPEC SINGLE MATERIAL RESPONSE BODY QQ-N-281 FED SPEC SINGLE MATERIAL RESPONSE FLOW CONTROL DEVICE QQ-N-281 FED SPEC SINGLE MATERIAL RESPONSE STEM |
| STYLE DESIGNATOR | A1 STRAIGHT THRU |
| FLOW CONTROL DEVICE | DISK |
| MEDIA FOR WHICH DESIGNED | WATER-OIL-GAS SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 700.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 250.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | UNTHREADED INTERNAL TUBE ALL ENDS |

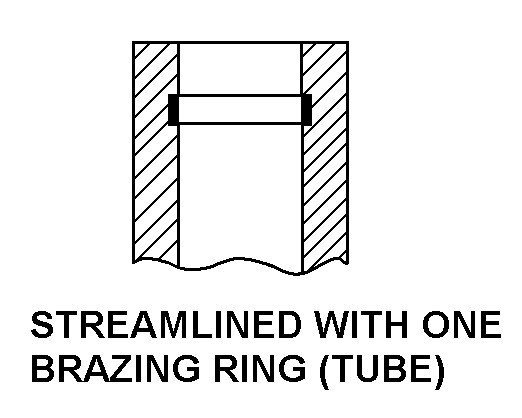

| CONNECTION STYLE | G21A STREAMLINED WITH ONE BRAZING RING ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.500 INCHES ALL ENDS |
| BONNET TYPE | PACKING RETAINING |
| FURNISHED ITEMS AND QUANTITY | 1 HANDWHEEL |
Restrictions/Controls & Freight Information | NSN 4820-01-115-0800
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-115-0800
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
