NSN 4820-01-114-5947 N56743, 56743, 21720N
Product Details | VALVE STEM GUIDE
4820-01-114-5947 A replaceable cylindrical item designed to provide wear surface and maintain alignment of a reciprocating valve stem and the like, it may have a flange(s) and/or grooves.20728050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components43100028Compressors and Vacuum Pumps45100033Plumbing Fixtures and Accessories48100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: N56743, 56743, 21720N, 21720N PC N029A, 21720N PIECE N0, 21720N PIECE NO29A 1-1/4IN, 21720NPCN029A, 21720NPIECEN0, 21720NPIECENO29A114IN, 21720W PIECE N0, 21720W PIECE NO29A 1-1/4IN, 21720WPIECEN0, 21720WPIECENO29A114IN, 36745, 4820-01-114-5947, 01-114-5947, 4820011145947, 011145947
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 19 JUN 1981 | 01-114-5947 | 32562 ( GUIDE, VALVE STEM ) |
Drawings & Photos | NSN 4820-01-114-5947
Cross Reference | NSN 4820-01-114-5947
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 21720N | 35795 | LESLIE CONTROLS, INC. |
| 21720N PC N029A | 35795 | LESLIE CONTROLS, INC. |
| 21720N PIECE N0 | 35795 | LESLIE CONTROLS, INC. |
| 21720N PIECE NO29A 1-1/4IN | 35795 | LESLIE CONTROLS, INC. |
| 21720W PIECE N0 | 35795 | LESLIE CONTROLS, INC. |
| 21720W PIECE NO29A 1-1/4IN | 35795 | LESLIE CONTROLS, INC. |
| 36745 | 35795 | LESLIE CONTROLS, INC. |
| 56743 | 35795 | LESLIE CONTROLS, INC. |
| N56743 | 35795 | LESLIE CONTROLS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-114-5947
Technical Data | NSN 4820-01-114-5947
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, CORROSION RESISTING |
| METALLIC HARDNESS RATING | NOT RATED |

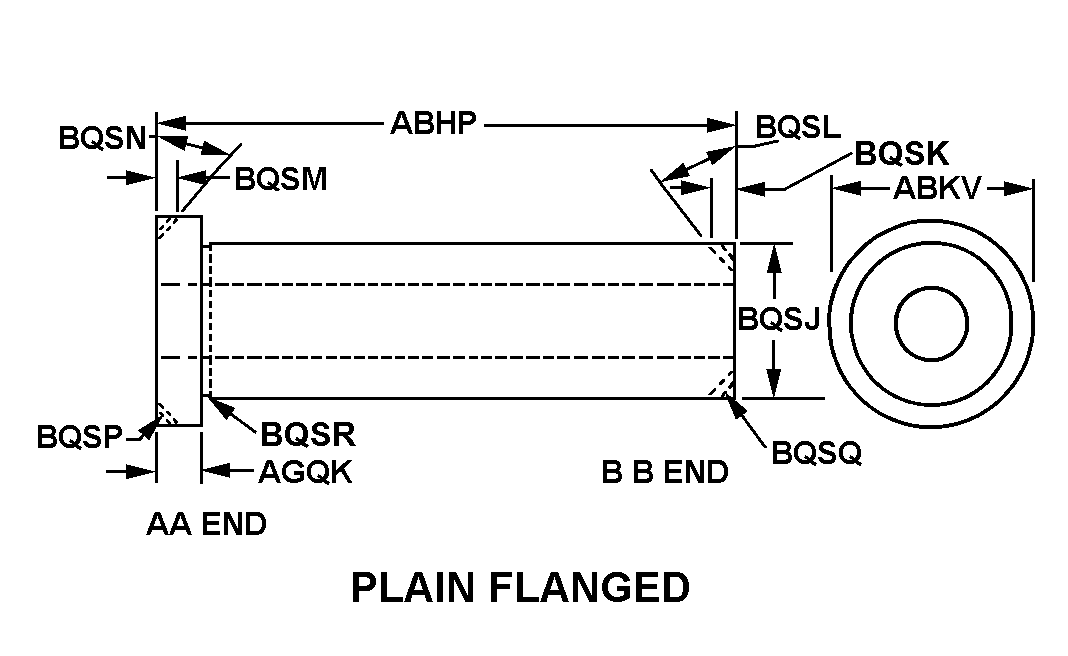

| STYLE DESIGNATOR | H2 PLAIN FLANGED |
| OVERALL LENGTH | 0.875 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.300 INCHES NOMINAL |
| MAJOR DIAMETER LENGTH | 0.188 INCHES NOMINAL |
| BB END SHANK DIAMETER | 1.748 INCHES NOMINAL |
| BB END CHAMFER LENGTH | 0.125 INCHES NOMINAL |
| BB END CHAMFER ANGLE IN DEG | 60.0 |
| BORE DIAMETER | 1.1800 INCHES NOMINAL |
| BORE COUNTERSINK | NOT INCLUDED |
| BORE COUNTERBORE | INCLUDED |
| COUNTERBORE LOCATION | AA END |
| COUNTERBORE DIAMETER | 1.750 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.020 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4820-01-114-5947
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-114-5947
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
