Product Details | SHUTTLE VALVE
4820-01-111-3362 A valve having one outlet and two inlets that are usually opposite each other. It has a fluid pressure operated pistonlike item, called a shuttle, that controls either inlet. It is commonly used to provide an emergency passage for fluid in an aircraft hydraulic or pneumatic system in case of loss of pressure in the normal service lines.
Part Alternates: CM520178, CM520-1-78, 4820-01-111-3362, 01-111-3362, 4820011113362, 011113362
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 15 APR 1981 | 01-111-3362 | 20572 ( VALVE, SHUTTLE ) |
Drawings & Photos | NSN 4820-01-111-3362
Cross Reference | NSN 4820-01-111-3362
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CM520-1-78 | 54781 | CONTROL CONCEPTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-111-3362
Related Products | NSN 4820-01-111-3362
Technical Data | NSN 4820-01-111-3362
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM BODY |
| FACE TO FACE DISTANCE | 13.625 INCHES |
| FLOW CONTROL DEVICE | PISTON |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID, MINERAL BASE SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 160.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | SOLENOID |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 24.0 DC |
| CONNECTION TYPE | THREADED EXTERNAL PIPE 1ST END THREADED EXTERNAL TUBE 3RD END |

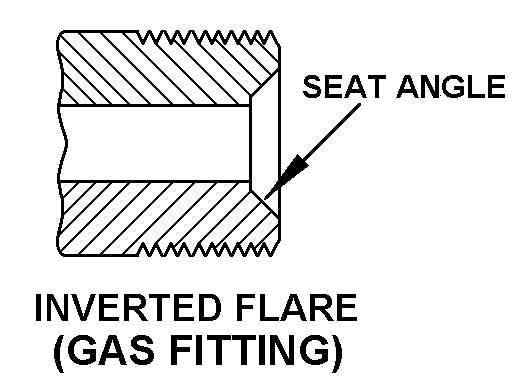

| CONNECTION STYLE | G41C INVERTED FLARE 1ST END G46A PLAIN 3RD END |
