NSN 4820-01-110-0145 189991, 1903100030, 190310-0030
Product Details | VALVE SEAT
4820-01-110-0145 A replaceable item designed to provide a stationary seating surface for a mating, moveable item such as a valve disk or the like. The body may have a flange of various shapes. For diesel and gasoline reciprocating engines, see INSERT, ENGINE VALVE SEAT.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 189991, 1903100030, 190310-0030, 2817560002, 281756-0002, 281756-0002 ITEM 16, 2817560002ITEM16, 4820-01-110-0145, 01-110-0145, 4820011100145, 011100145
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 25 MAR 1981 | 01-110-0145 | 22113 ( SEAT, VALVE ) |
Drawings & Photos | NSN 4820-01-110-0145
Demand History | NSN 4820-01-110-0145
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-01-110-0145 | 2013-05-125 | 1 | DIBBS |
| 4820-01-110-0145 | 2012-03-72 | 2 | DIBBS |
| 4820-01-110-0145 | 2012-03-63 | 1 | DIBBS |
| 4820-01-110-0145 | 2009-04-117 | 2 | DIBBS |
| 4820-01-110-0145 | 2009-03-61 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-110-0145
Technical Data | NSN 4820-01-110-0145
| Characteristic | Specifications |
|---|---|

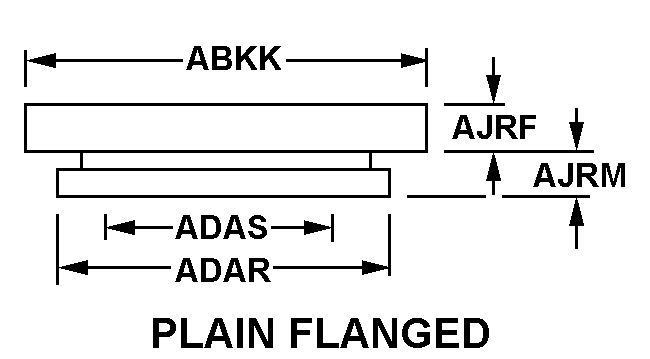

| STYLE DESIGNATOR | B10A PLAIN FLANGED |
| FLANGE DIAMETER | 0.990 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.923 INCHES NOMINAL |
| FLANGE SEAT TO DISK END HEIGHT | 0.181 INCHES NOMINAL |
| UNDER FLANGE HEIGHT | 0.429 INCHES NOMINAL |
| BODY STEPPED INSIDE DIAMETER | 0.429 INCHES NOMINAL FIRST STEP 0.375 INCHES NOMINAL SECOND STEP 0.677 INCHES NOMINAL THIRD STEP |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| HARDNESS RATING | NOT RATED |
| SEATING SURFACE SHAPE | ANGULAR |
| SEAT ANGLE IN DEG | 30.000 NOMINAL |
Restrictions/Controls & Freight Information | NSN 4820-01-110-0145
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-110-0145
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
