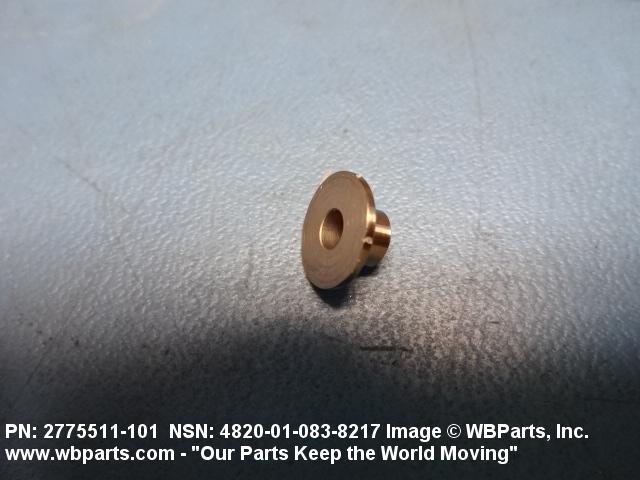

Product Details | VALVE SEAT
4820-01-083-8217 A replaceable item designed to provide a stationary seating surface for a mating, moveable item such as a valve disk or the like. The body may have a flange of various shapes. For diesel and gasoline reciprocating engines, see INSERT, ENGINE VALVE SEAT.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 2775511101, 2775511-101, 4820-01-083-8217, 01-083-8217, 4820010838217, 010838217
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 OCT 1979 | 01-083-8217 | 22113 ( SEAT, VALVE ) |

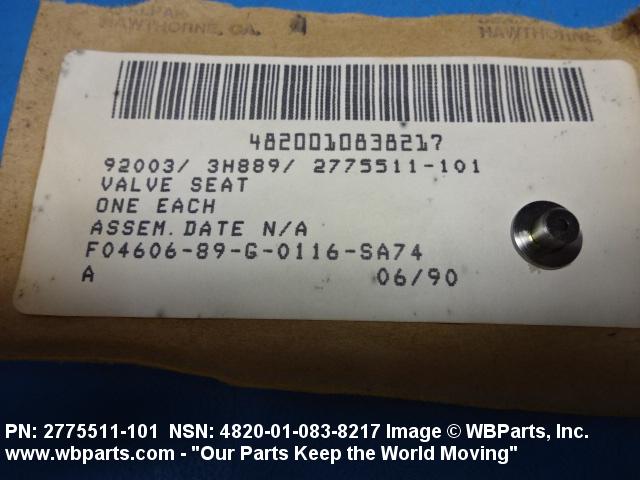

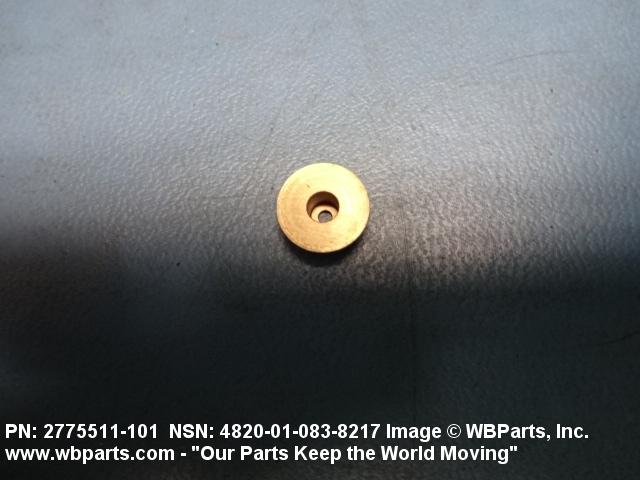

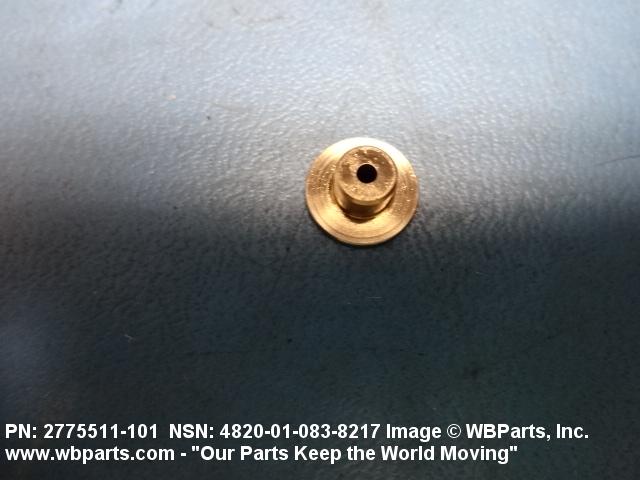

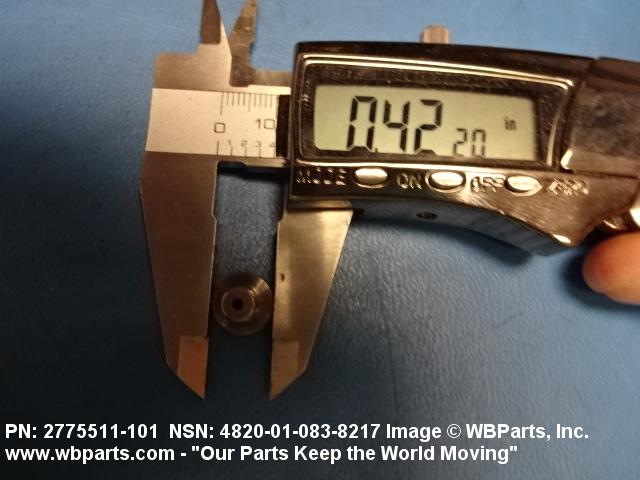

Drawings & Photos | NSN 4820-01-083-8217
Demand History | NSN 4820-01-083-8217
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2775511-101 | 2019-05-148 | 63 | DIBBS |
| 2775511-101 | 2019-05-136 | 63 | DIBBS |
| 4820-01-083-8217 | 2018-05-151 | 51 | DIBBS |
| 4820-01-083-8217 | 2018-04-120 | 18 | DIBBS |
| 4820-01-083-8217 | 2018-04-109 | 18 | DIBBS |
| 4820-01-083-8217 | 2018-03-63 | 21 | DIBBS |
| 4820-01-083-8217 | 2017-02-44 | 17 | DIBBS |
| 4820-01-083-8217 | 2017-02-33 | 17 | DIBBS |
| 4820-01-083-8217 | 2016-08-230 | 6 | United States |
| 4820-01-083-8217 | 2016-07-207 | 6 | DIBBS |
| 4820-01-083-8217 | 2016-06-167 | 6 | DIBBS |
| 4820-01-083-8217 | 2014-01-30 | 16 | DIBBS |
Cross Reference | NSN 4820-01-083-8217
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2775511-101 | 92003 | PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-083-8217
Technical Data | NSN 4820-01-083-8217
| Characteristic | Specifications |
|---|---|

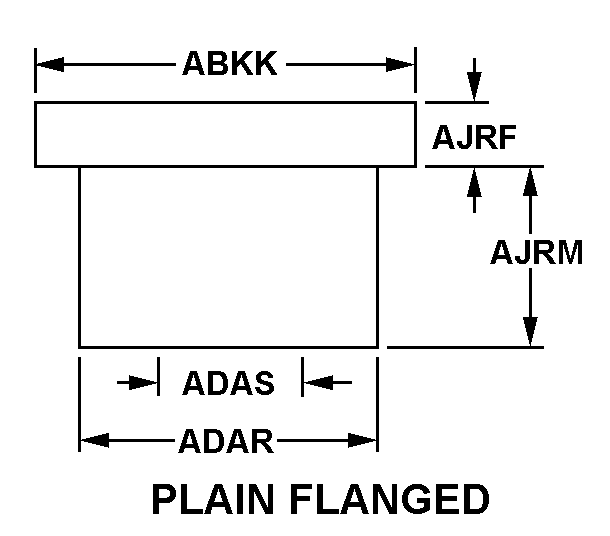

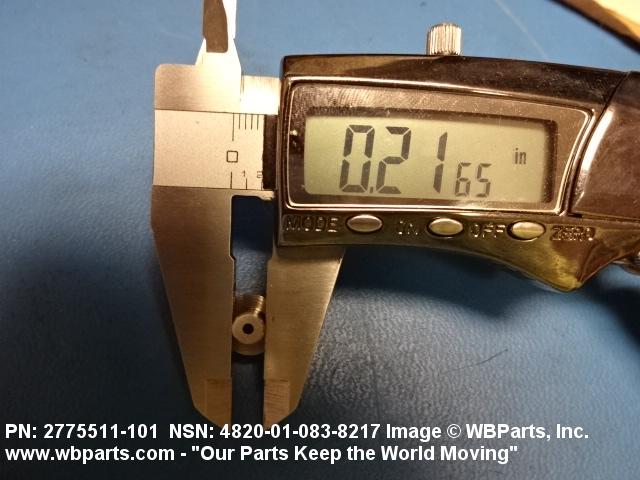

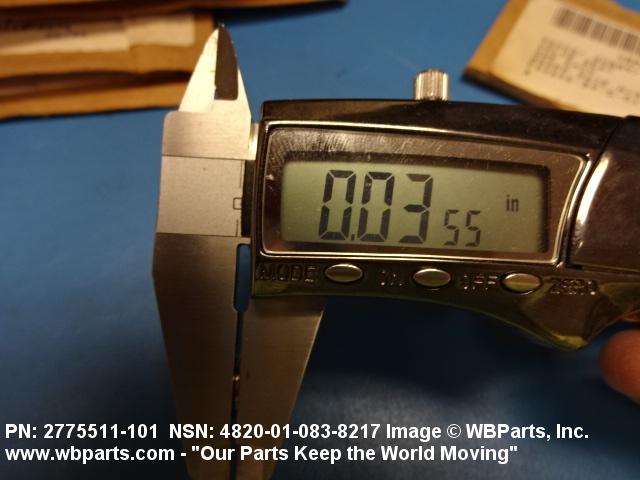

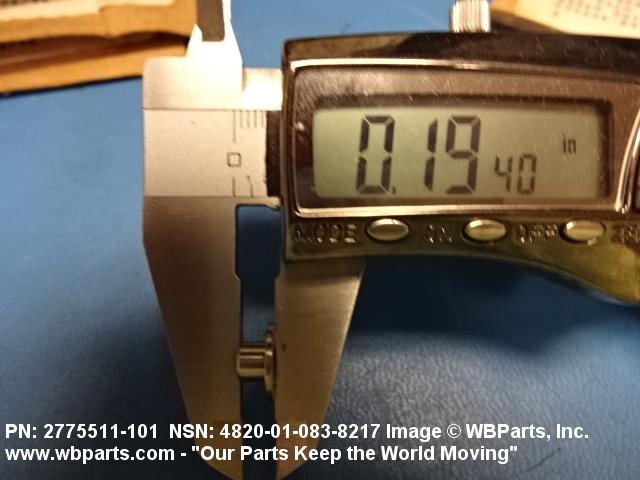

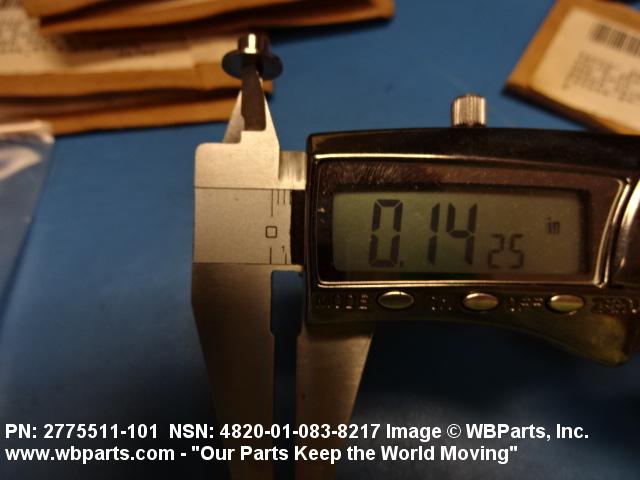

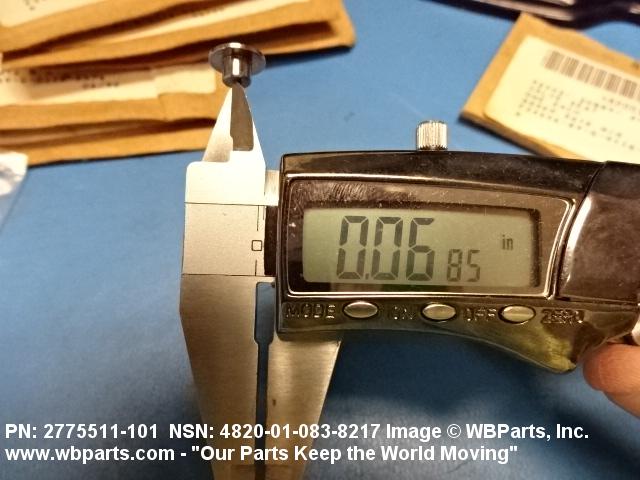

| STYLE DESIGNATOR | B7A PLAIN FLANGED |
| FLANGE DIAMETER | 0.420 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.211 INCHES MINIMUM AND 0.217 INCHES MAXIMUM |
| FLANGE SEAT TO DISK END HEIGHT | 0.040 INCHES NOMINAL |
| UNDER FLANGE HEIGHT | 0.154 INCHES NOMINAL |
| BODY STEPPED INSIDE DIAMETER | 0.070 INCHES NOMINAL FIRST STEP 0.139 INCHES MINIMUM AND 0.145 INCHES MAXIMUM SECOND STEP |
| MATERIAL | STEEL COMP 440C OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 58.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM OVERALL |
| SEATING SURFACE SHAPE | FLAT |
| MANUFACTURERS CODE | 92003 |
| DESIGN CONTROL REFERENCE | 2775511-101 |
