NSN 4820-01-075-6204 11566318, 01-075-6204, 010756204
Product Details | SAFETY RELIEF VALVE
4820-01-075-6204 A valve designed to automatically release excessive pressures. It is actuated by static pressure upstream of the valve and is used as a safety valve or relief valve, and may be set to close at a predetermined pressure. It is not designed for regulation of continuously fluctuating loads. It may be inline or cartridge (manifold) design. Excludes VALVE (1), RELIEF, PRESSURE AND TEMPERATURE.
Part Alternates: 11566318, 4820-01-075-6204, 01-075-6204, 4820010756204, 010756204
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 24 APR 1979 | 01-075-6204 | 05488 ( VALVE, SAFETY RELIEF ) |

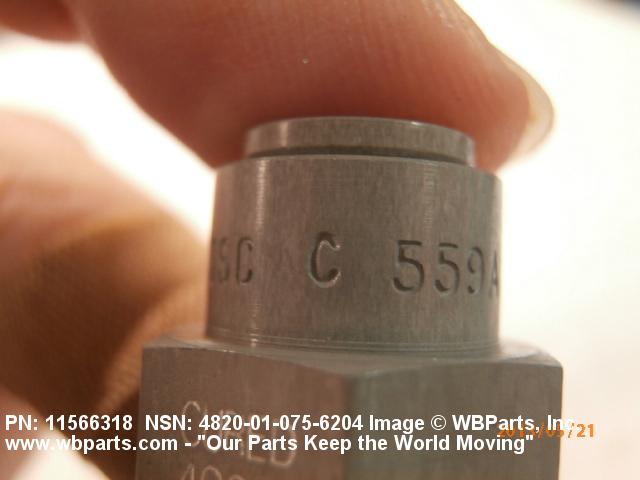

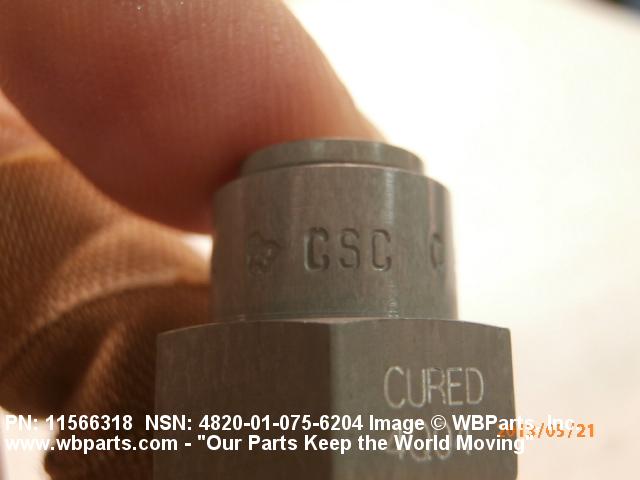

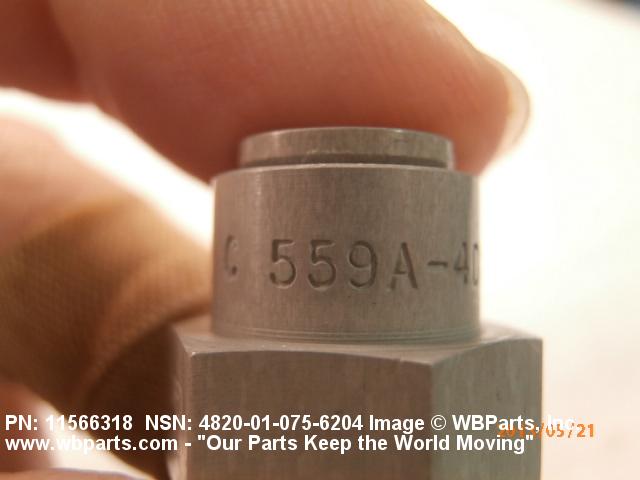

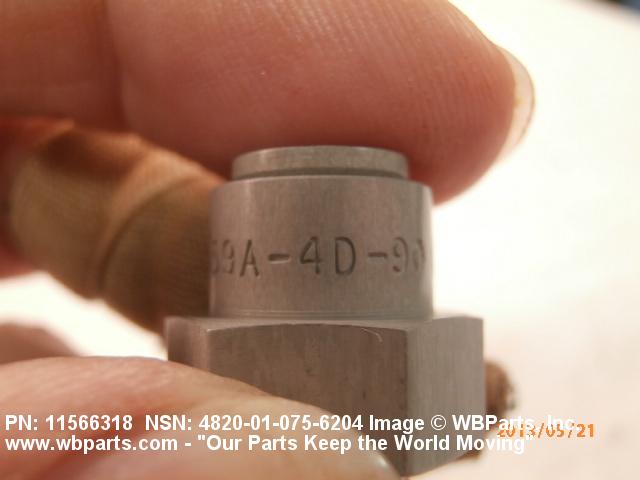

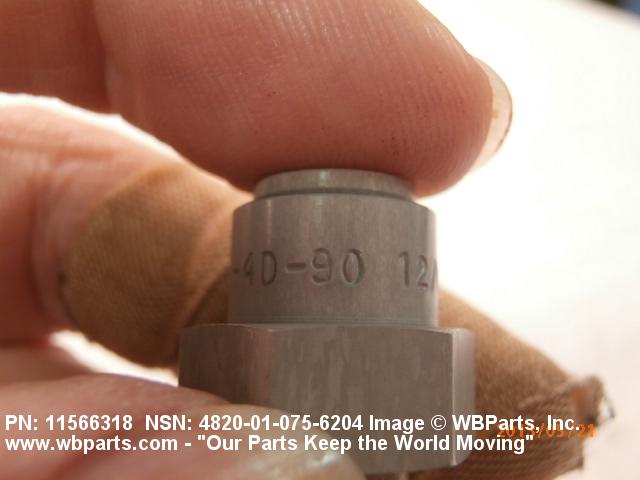

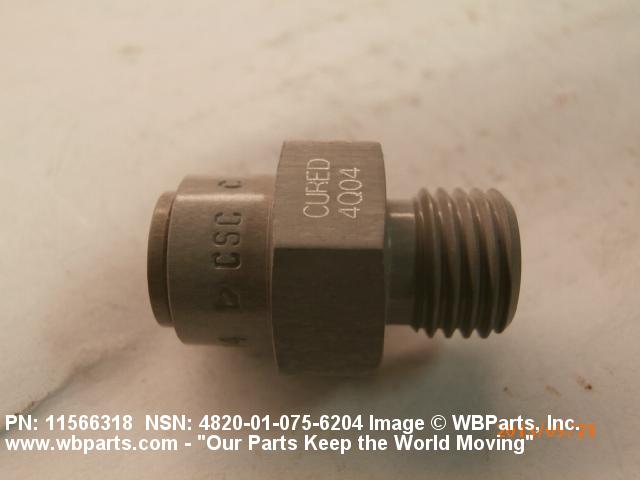

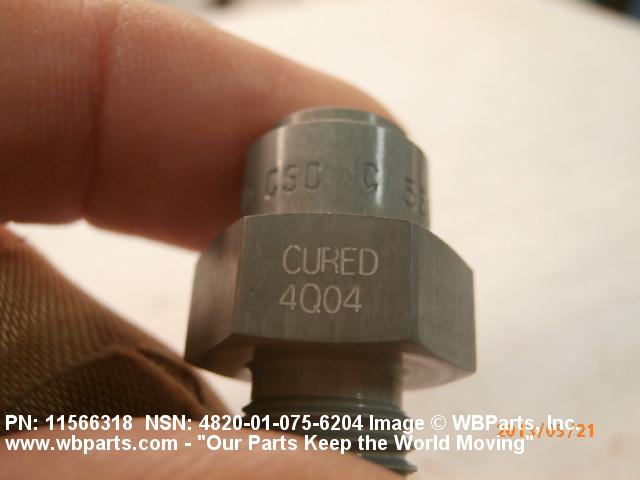

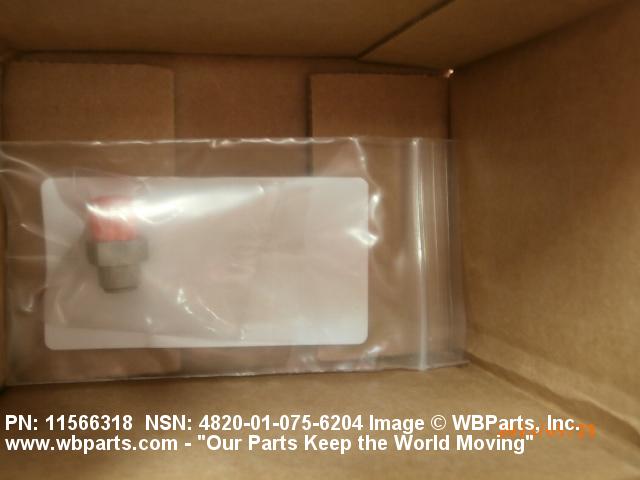

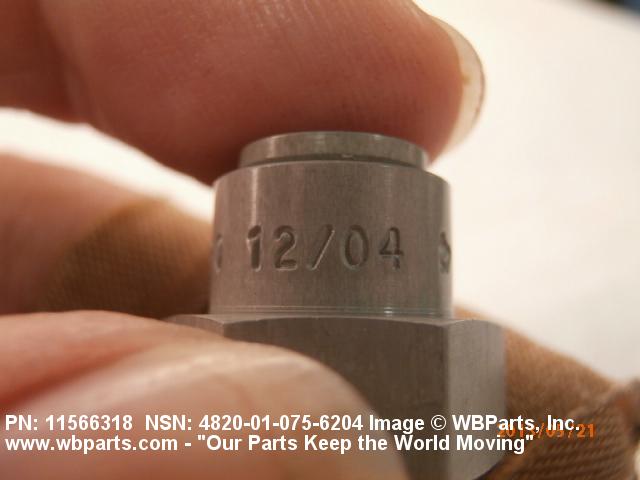

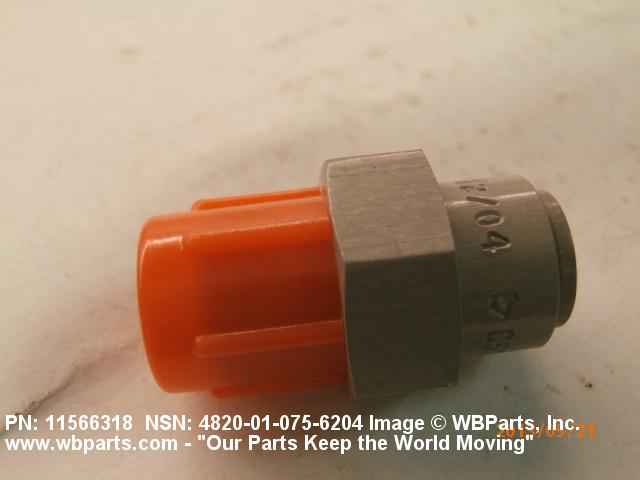

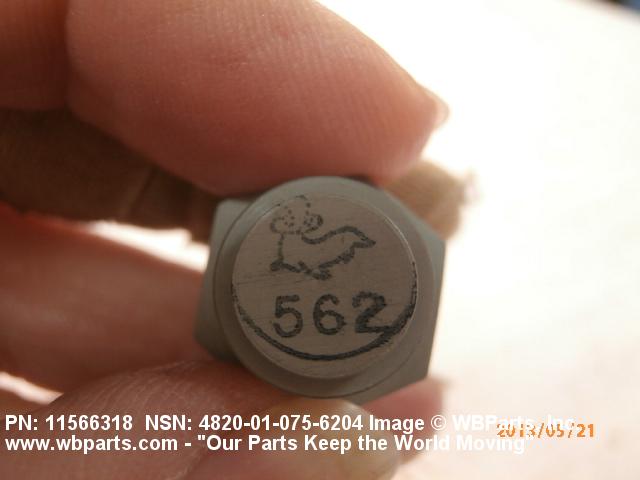

Drawings & Photos | NSN 4820-01-075-6204
Demand History | NSN 4820-01-075-6204
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-01-075-6204 | 2024-10-296 | 25 | US |
| 4820-01-075-6204 | 2024-09-248 | 14 | United States |
| 4820-01-075-6204 | 2024-08-231 | 50 | DIBBS |
| 4820-01-075-6204 | 2024-07-206 | 57 | DIBBS |
| 4820-01-075-6204 | 2024-07-194 | 14 | United States |
| 4820-01-075-6204 | 2024-06-179 | 5 | US |
| 4820-01-075-6204 | 2024-04-95 | 25 | DIBBS |
| 4820-01-075-6204 | 2024-03-89 | 6 | US |
| 4820-01-075-6204 | 2023-11-314 | 5 | US |
| 4820-01-075-6204 | 2023-11-314 | 5 | US |
| 4820-01-075-6204 | 2023-11-314 | 6 | AE |
| 4820-01-075-6204 | 2023-11-313 | 6 | us |
| 4820-01-075-6204 | 2023-08-215 | 6 | US |
| 4820-01-075-6204 | 2022-10-304 | 3 | United States |
| 4820-01-075-6204 | 2022-04-97 | 32 | DIBBS |
| 4820-01-075-6204 | 2022-02-46 | 12 | DIBBS |
| 4820-01-075-6204 | 2021-12-353 | 20 | DIBBS |
| 4820-01-075-6204 | 2021-09-271 | 20 | DIBBS |
| 4820-01-075-6204 | 2020-11-317 | 1 | US |
| 4820-01-075-6204 | 2020-06-181 | 8 | United States |
| 4820-01-075-6204 | 2020-02-57 | 10 | ES |
| 4820-01-075-6204 | 2020-01-12 | 53 | DIBBS |
| 4820-01-075-6204 | 2017-03-62 | 73 | DIBBS |
| 4820-01-075-6204 | 2017-02-51 | 73 | DIBBS |
| 4820-01-075-6204 | 2017-02-37 | 73 | DIBBS |
| 4820-01-075-6204 | 2016-10-277 | 51 | DIBBS |
| 4820-01-075-6204 | 2016-09-265 | 51 | DIBBS |
| 4820-01-075-6204 | 2016-08-217 | 4 | Luxembourg |
| 4820-01-075-6204 | 2015-12-336 | 43 | DIBBS |
| 4820-01-075-6204 | 2015-02-37 | 1 | Greece |
| 4820-01-075-6204 | 2015-02-33 | 3 | Greece |
| 4820-01-075-6204 | 2014-10-275 | 27 | DIBBS |
| 11566318 | 2013-05-126 | 1 | United States |
| 4820-01-075-6204 | 2013-03-87 | 17 | DIBBS |
| 11566318 | 2013-03-70 | 1 | United States |
| 4820-01-075-6204 | 2012-10-290 | 4 | DIBBS |
| 4820-01-075-6204 | 2012-10-286 | 8 | DIBBS |
| 4820-01-075-6204 | 2010-05-141 | 12 | DIBBS |
Cross Reference | NSN 4820-01-075-6204
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11566318 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-075-6204
Related Products | NSN 4820-01-075-6204
Technical Data | NSN 4820-01-075-6204
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 BODY ALUMINUM ALLOY 2024 FLOW CONTROL DEVICE |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 1 MIL SPEC SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | C5 STRAIGHT THRU W/BAFFLE |
| FLOW CONTROL DEVICE | DISK |
| MAXIMUM OPERATING PRESSURE | 200.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 85.0 DEG CELSIUS SINGLE RESPONSE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | G46B PLAIN ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS |
| NOMINAL THREAD SIZE | 0.437 INCHES ALL ENDS |
| THREAD QUANTITY PER INCH | 20 ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| BONNET TYPE | INSIDE SPRING |
| BONNET ATTACHMENT METHOD | INTEGRAL |
| DISK LOADING METHOD | SPRING |
| ADJUSTABLE PRESSURE RANGE | 85.0 TO 90.0 POUNDS PER SQUARE INCH |
Restrictions/Controls & Freight Information | NSN 4820-01-075-6204
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | BD | U.S. Army Aviation and Missile Command Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-075-6204
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
