NSN 4820-01-061-0230 803-2177934-111, 8032177934C111, 803-2177934-C111

Product Details | GLOBE VALVE

4820-01-061-0230 A valve with one inlet and one outlet connection with outlet flow parallel to inlet flow. The flow is controlled by the action of a stem which lifts the disk perpendicularly off the center axis of its seat. The stem is at a 90 degree (1.5708 radians) angle to axis of flow. Excludes VALVE, STOP-CHECK; COCK, SHUTOFF, SCREW STEM; and VALVE, SOLENOID.20248100015Valves, Powered48200018Valves, Nonpowered

Part Alternates: 803-2177934-111, 8032177934C111, 803-2177934-C111, 8032177934C111AF, 803-2177934-C111AF, 8032177934, 803-2177934, 4820-01-061-0230, 01-061-0230, 4820010610230, 8032177934111, 010610230

Valves | Valves, Nonpowered

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
48	10 JUN 1978	01-061-0230	05485 ( VALVE, GLOBE )

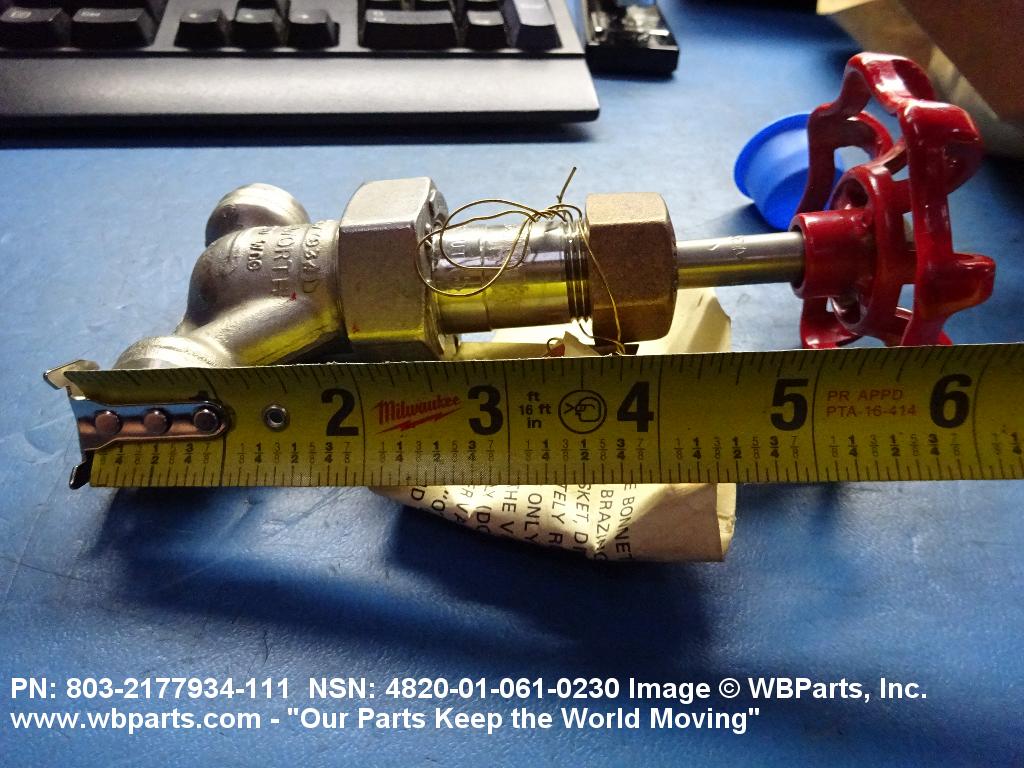

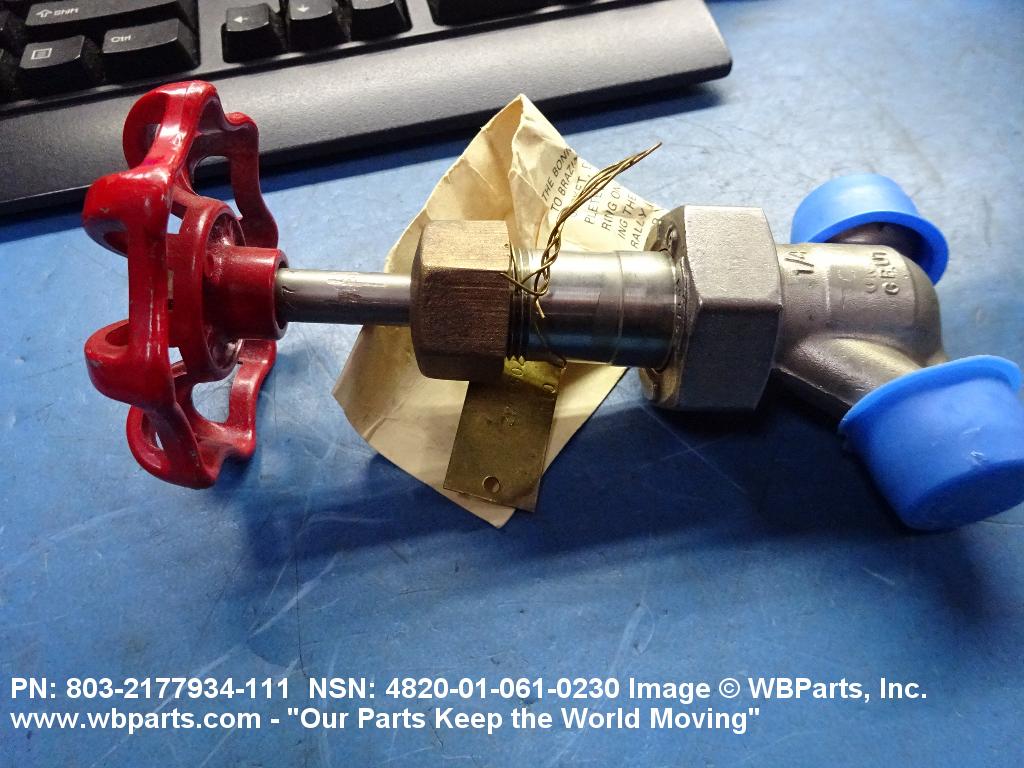

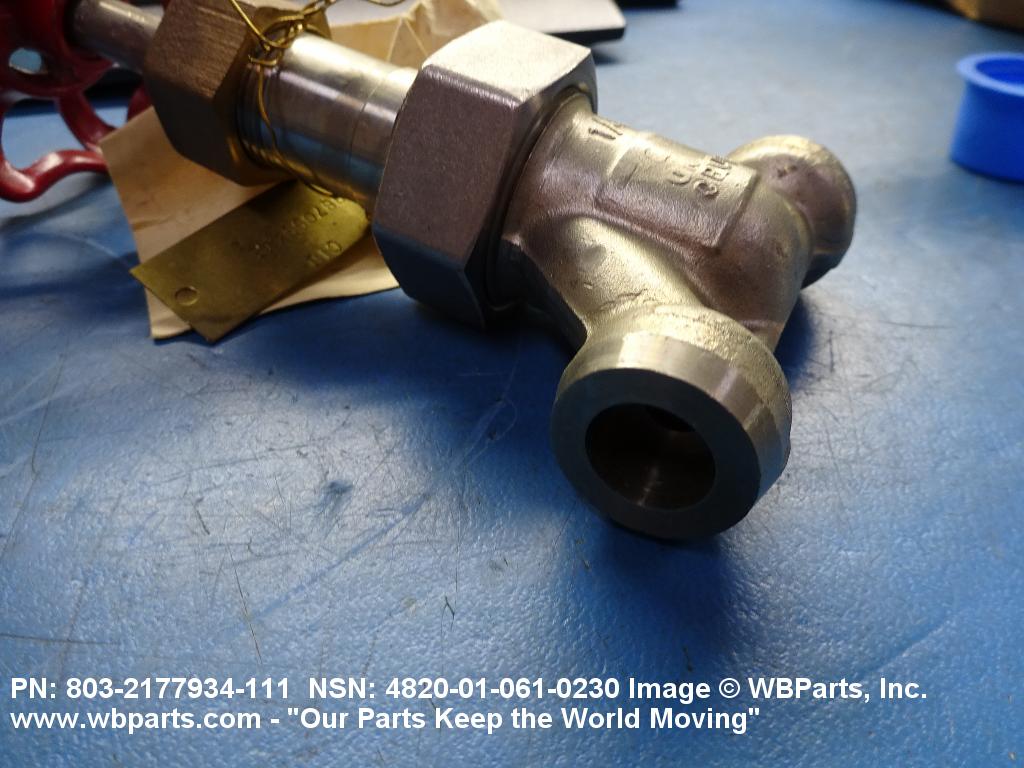

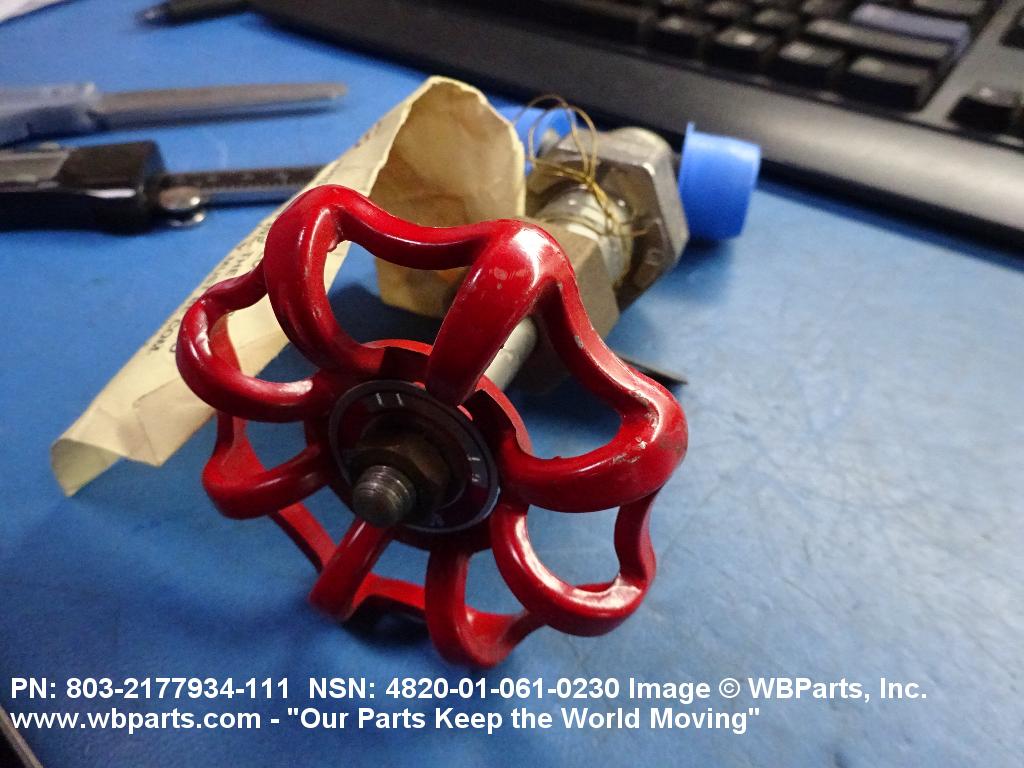

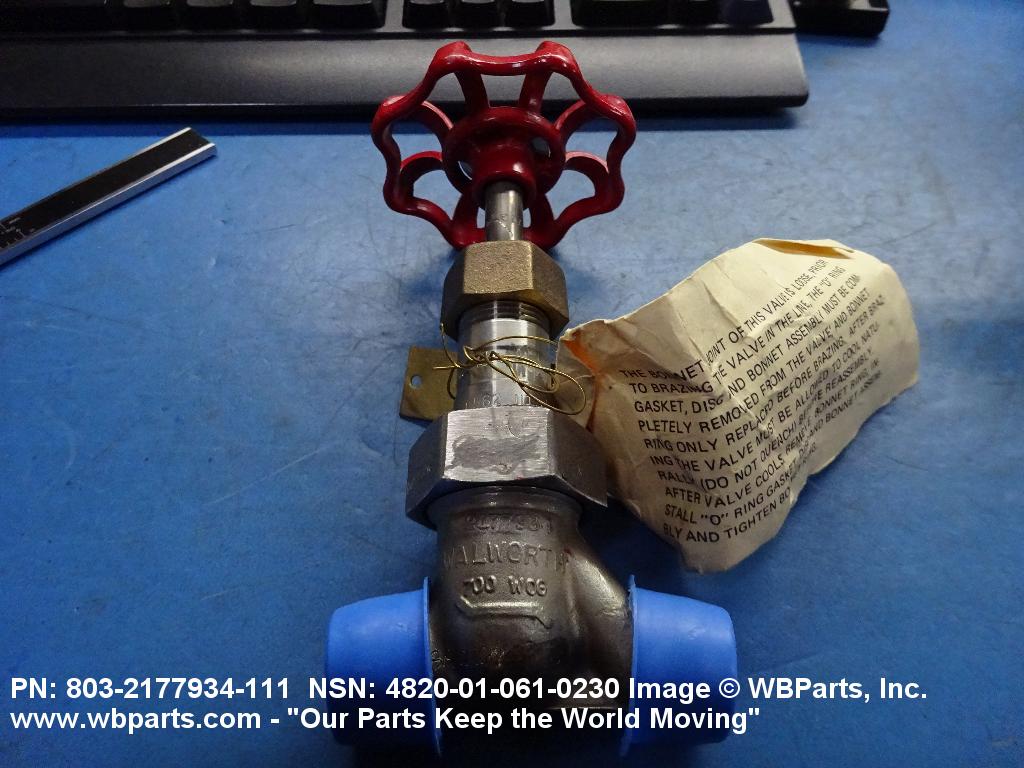

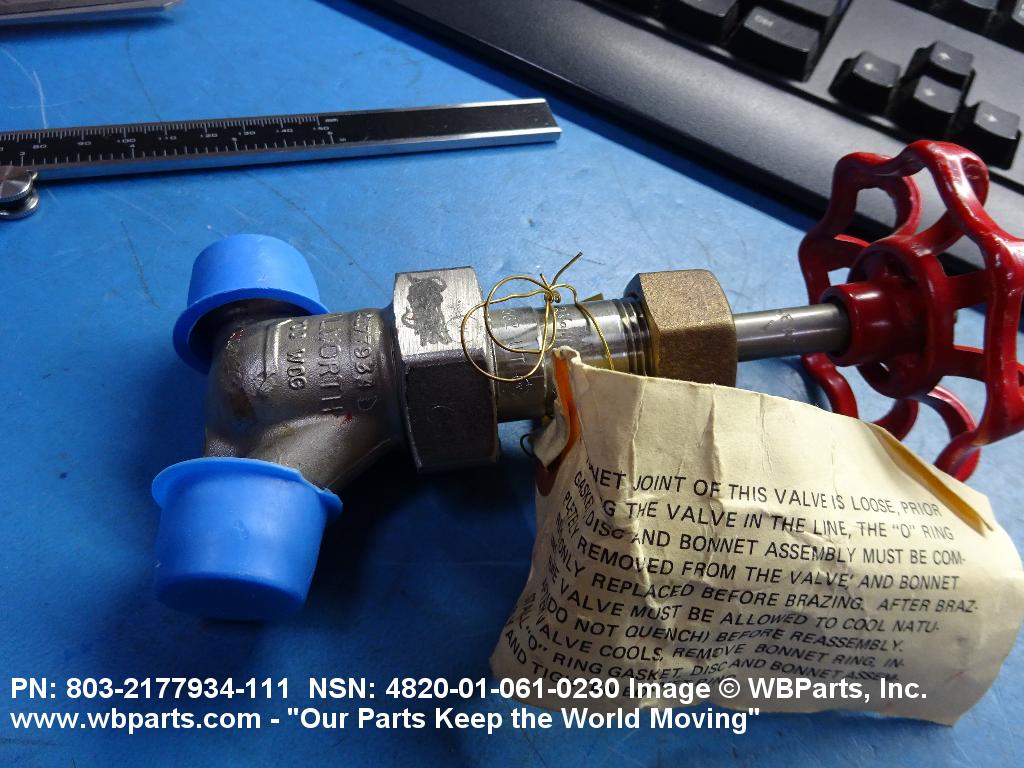

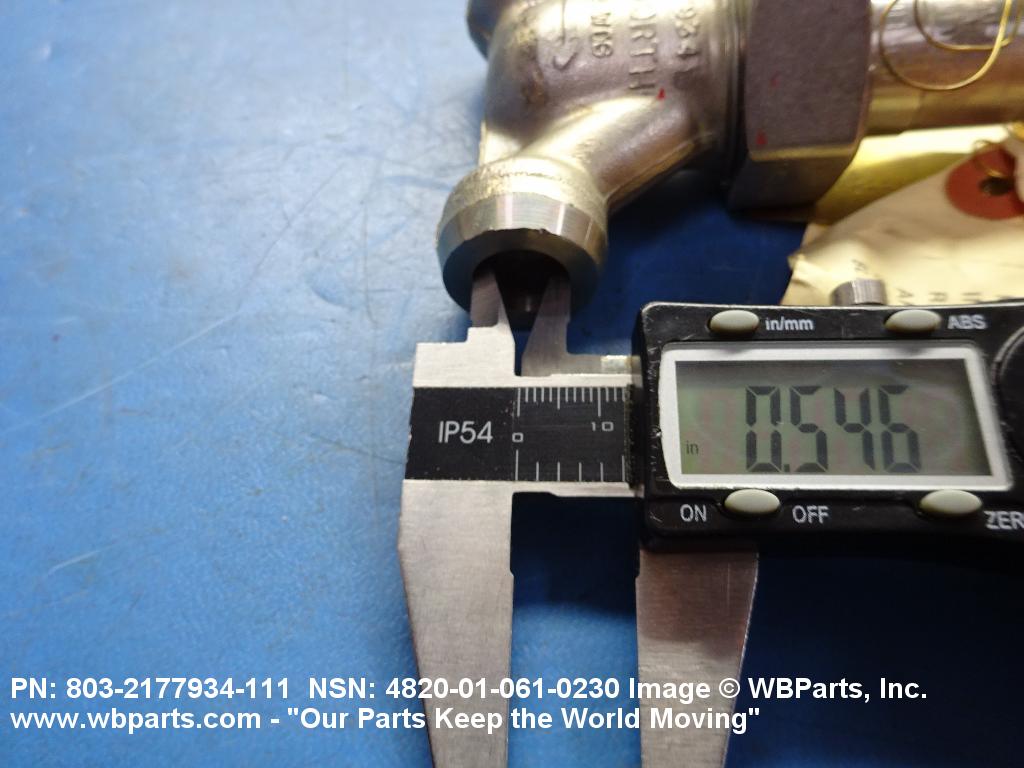

Drawings & Photos | NSN 4820-01-061-0230

Part Number	Request Date	QTY	Origin
4820-01-061-0230	2024-09-264	60	US
4820-01-061-0230	2024-09-263	60	DIBBS
4820-01-061-0230	2024-08-224	31	DIBBS
4820-01-061-0230	2024-01-25	23	DIBBS
4820-01-061-0230	2022-11-310	113	DIBBS
4820-01-061-0230	2022-10-279	64	DIBBS
4820-01-061-0230	2022-07-209	24	DIBBS
4820-01-061-0230	2022-07-202	3	United States
4820-01-061-0230	2021-07-210	8	DIBBS
4820-01-061-0230	2021-05-147	25	DIBBS
4820-01-061-0230	2021-04-91	86	DIBBS
4820-01-061-0230	2021-03-77	8	DIBBS
4820-01-061-0230	2021-01-14	12	DIBBS
4820-01-061-0230	2020-10-282	19	DIBBS
4820-01-061-0230	2020-04-114	1	DIBBS-RFPs
4820-01-061-0230	2020-03-72	20	DIBBS
4820-01-061-0230	2020-02-40	21	DIBBS
4820-01-061-0230	2015-09-264	18	DIBBS
4820-01-061-0230	2014-11-323	35	DIBBS
4820-01-061-0230	2014-07-190	20	DIBBS
8032177934	2013-01-22	1	United States
8032177934	2013-01-21	1	United States

Cross Reference | NSN 4820-01-061-0230

Part Number	Cage Code	Manufacturer
803-2177934	53711	NAVAL SEA SYSTEMS COMMAND
803-2177934	80064	NAVAL SHIP SYSTEMS COMMAND
803-2177934-111	53711	NAVAL SEA SYSTEMS COMMAND
803-2177934-C111	80064	NAVAL SHIP SYSTEMS COMMAND
803-2177934-C111AF	80064	NAVAL SHIP SYSTEMS COMMAND

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4820-01-061-0230

Compare

Related Products | NSN 4820-01-061-0230

4820-01-061-0231, 4820-01-061-0232, 4820-01-061-0233, 4820-01-061-0234, 4820-01-061-0238

Technical Data | NSN 4820-01-061-0230

Characteristic	Specifications
MATERIAL	NICKEL ALLOY SEAT
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-C-15726,COMP 70-30 MIL SPEC SINGLE MATERIAL RESPONSE BODY QQ-N-281,CLASS B FED SPEC SINGLE MATERIAL RESPONSE FLOW CONTROL DEVICE QQ-N-281,CLASS B FED SPEC SINGLE MATERIAL RESPONSE STEM
STYLE DESIGNATOR	A1 STRAIGHT THRU
FLOW CONTROL DEVICE	DISK
MEDIA FOR WHICH DESIGNED	WATER-OIL-GAS SINGLE RESPONSE
MAXIMUM OPERATING PRESSURE	700.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
MAXIMUM OPERATING TEMP	250.0 DEG FAHRENHEIT SINGLE RESPONSE
VALVE OPERATION METHOD	MANUAL
CONNECTION TYPE	UNTHREADED INTERNAL PIPE ALL ENDS
CONNECTION STYLE	G20B SOCKET ALL ENDS
NOMINAL PIPE SIZE ACCOMMODATED	0.250 INCHES ALL ENDS
BONNET TYPE	INSIDE SCREW
BONNET ATTACHMENT METHOD	INTEGRAL
FURNISHED ITEMS AND QUANTITY	1 HANDWHEEL
FEATURES PROVIDED	BONNET PACKING

Restrictions/Controls & Freight Information | NSN 4820-01-061-0230

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	051080	FAUCETS,BIBCOCKS,GATES VALVES
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	594	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4820-01-061-0230

Navy

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
