NSN 4820-01-050-9704 HC 1/2FW, HC-1/2FC, HC1/2FW
Product Details | EXPANSION VALVE
4820-01-050-9704 A self-acting valve specifically designed for use in refrigeration systems for continual control of rate of flow of refrigerant. It may be actuated by a thermostatic element or self-actuated.
Part Alternates: HC 1/2FW, HC-1/2FC, HC1/2FW, HC12FC, HC12FN, HC1-2FN, HC12FW, HF 1/2FC, HF12FC, 4820-01-050-9704, 01-050-9704, 4820010509704, 010509704
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 17 NOV 1977 | 01-050-9704 | 05493 ( VALVE, EXPANSION ) |
Drawings & Photos | NSN 4820-01-050-9704
Cross Reference | NSN 4820-01-050-9704
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HC 1/2FW | 32441 | ALCO CORP |
| HC 1/2FW | 70255 | EMERSON ELECTRIC CO ALCO CONTROLS DIV |
| HC-1/2FC | 57644 | TW METALS, INC. |
| HC-1/2FC | 70255 | EMERSON ELECTRIC CO ALCO CONTROLS DIV |
| HC1-2FN | 32441 | ALCO CORP |
| HC1/2FW | 57644 | TW METALS, INC. |
| HF 1/2FC | 70255 | EMERSON ELECTRIC CO ALCO CONTROLS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-050-9704
Related Products | NSN 4820-01-050-9704
Technical Data | NSN 4820-01-050-9704
| Characteristic | Specifications |
|---|---|

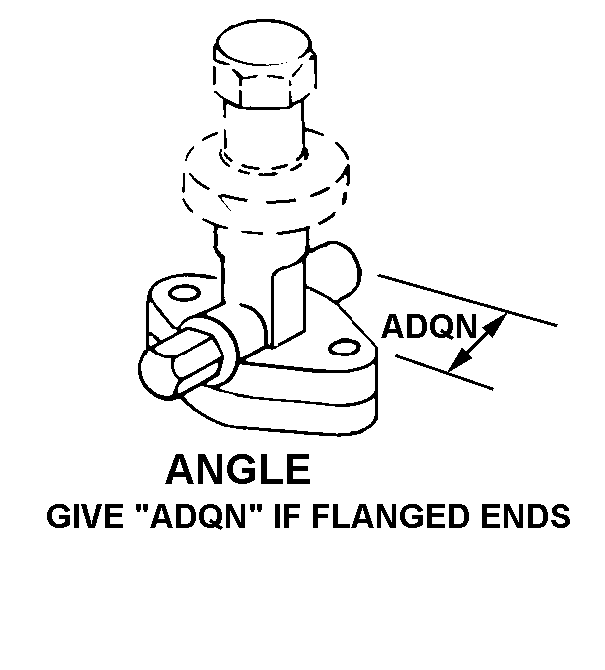

| BODY STYLE | C4 ANGLE |
| BODY MATERIAL | BRASS |
| FLOW CONTROL DEVICE | STEM AND INTEGRAL DISK |
| FLOW CONTROL DEVICE MATERIAL | STEEL, CORROSION RESISTING |
| STEM MATERIAL | STEEL, CORROSION RESISTING |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | J3 FLARED |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES NOMINAL |
| FIRST END THREAD CLASS | 2A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END SEAT ANGLE IN DEG | 37.0 |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| SECOND END STYLE DESIGNATOR | J3 FLARED |
| SECOND END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES NOMINAL |
| SECOND END THREAD CLASS | 2A |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| SECOND END SEAT ANGLE IN DEG | 37.0 |
| MEDIA FOR WHICH DESIGNED | REFRIGERANT 12 |
| TEMP RATING | 300.0 DEG FAHRENHEIT |
| VALVE EXPANSION CONTROL TYPE | THERMOSTATIC |
| VALVE EVAPORATOR TEMP RANGE DESIGNATION | PLUS 50 DEG F TO MINUS 50 DEG F |
| VALVE PRESSURE LIMITING DEVICE | NOT INCLUDED |
| REFRIGERATION CAPACITY IN BTU PER HOUR | 12.0 |
| BULB MEDIA TYPE | TRICHLOROMONOFLUOROMETHANE |
| CAPILLARY TUBE LENGTH | 5.000 INCHES NOMINAL |
| BULB MOUNTING METHOD | WELL |
| BULB LENGTH | 3.500 INCHES NOMINAL |
| BULB DIAMETER | 0.500 INCHES NOMINAL |
| VALVE EQUALIZER LOCATION | INTERNAL |
