Product Details | TEMPERATURE REGULATING VALVE

4820-01-050-7204 A self-acting valve designed for controlling, by means of a thermostatic element, the flow of liquids or gases therethrough. The thermostatic element is located in liquid or gas whose temperature is controlled by the heat of the liquid or gas flowing through the valve. See also VALVE, RELIEF, PRESSURE AND TEMPERATURE.

Part Alternates: 10607921, 10-60792-1, 26130105, 4820-01-050-7204, 01-050-7204, 4820010507204, 010507204

Valves | Valves, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
48 13 NOV 1977 01-050-7204

Drawings & Photos | NSN 4820-01-050-7204


Cross Reference | NSN 4820-01-050-7204

Part Number Cage Code Manufacturer
10-60792-1 81205 THE BOEING COMPANY DBA BOEING
26130105 80234 VAPOR CORP SUB OF BRUNSWICK CORP

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4820-01-050-7204

Technical Data | NSN 4820-01-050-7204

Characteristic Specifications
BODY MATERIAL ALUMINUM BRONZE
SEAT MATERIAL ALUMINUM BRONZE
STEM MATERIAL ALUMINUM BRONZE
FLOW CONTROL DEVICE DISK, FLAT, TOP AND BOTTOM GUIDED
FLOW CONTROL DEVICE MATERIAL ALUMINUM BRONZE
END CONNECTION QUANTITY 2
FIRST END CONNECTION TYPE PLAIN FACE FLANGE
FIRST END STYLE DESIGNATOR G1 PLAIN

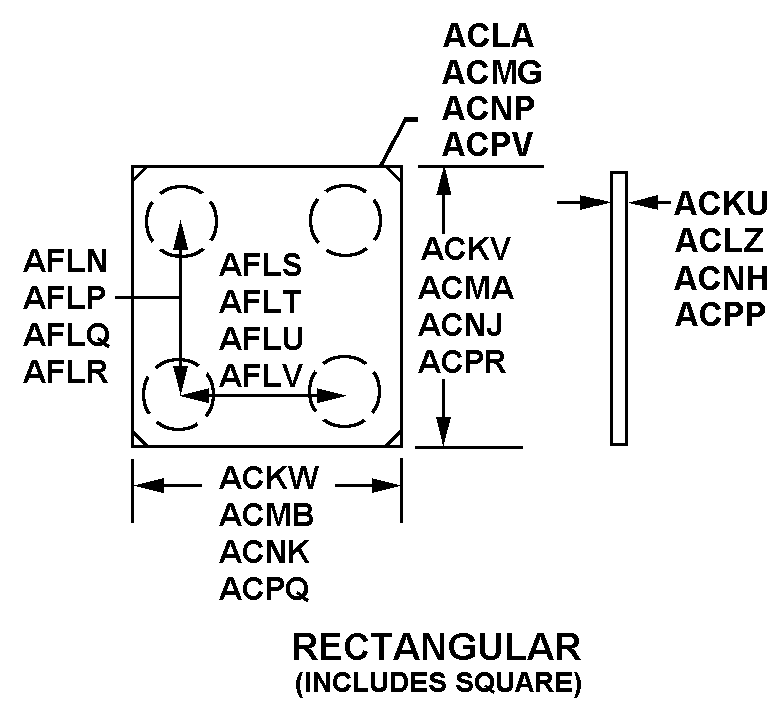

FIRST END FLANGE SHAPE STYLE 4A RECTANGULAR
FIRST END BOLT HOLE QUANTITY 4
FIRST END FLANGE THICKNESS 0.250 INCHES NOMINAL
FIRST END FLANGE LENGTH 3.000 INCHES NOMINAL
FIRST END FLANGE WIDTH 3.000 INCHES NOMINAL
FIRST END BOLT HOLE DIAMETER 0.344 INCHES NOMINAL
FIRST END CENTER TO CENTER DISTANCE BETWEEN HOLES ALONG LENGTH 2.375 INCHES NOMINAL
FIRST END CENTER TO CENTER DISTANCE BETWEEN HOLES ALONG WIDTH 2.375 INCHES NOMINAL
SECOND END RELATIONSHIP WITH FIRST END NOT IDENTICAL
SECOND END CONNECTION TYPE THREADED INTERNAL BOSS
SECOND END STYLE DESIGNATOR B11 PLAIN
SECOND END THREAD SIZE AND SERIES/TYPE DESIGNATOR 1-7/8-12 UN
SECOND END THREAD CLASS 2B
SECOND END THREAD PITCH DIAMETERS 1.8344 TO 1.8413 INCHES
SECOND END THREAD DIRECTION RIGHT-HAND
BODY STYLE A1 STRAIGHT THRU
THERMOSTATIC ELEMENT INTEGRAL W/VALVE
TEMP ADJUSTABILITY NOT ADJUSTABLE
MANUFACTURERS CODE 80234
DESIGN CONTROL REFERENCE 26130105
