Product Details | FLUID PRESSURE REGULATING VALVE
4820-01-035-2521 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 3023286, 4820-01-035-2521, 01-035-2521, 4820010352521, 010352521
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 08 FEB 1977 | 01-035-2521 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
Drawings & Photos | NSN 4820-01-035-2521
Demand History | NSN 4820-01-035-2521
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3023286 | 2023-08-226 | 14 | DIBBS |
| 3023286 | 2023-08-215 | 14 | DIBBS |
| 3023286 | 2023-03-79 | 6 | DIBBS |
| 3023286 | 2023-03-68 | 6 | DIBBS |
| 3023286 | 2021-01-14 | 2 | DIBBS |
| 3023286 | 2020-10-294 | 2 | DIBBS |
| 3023286 | 2020-05-128 | 1 | DIBBS |
| 3023286 | 2020-03-86 | 1 | DIBBS |
| 4820-01-035-2521 | 2017-03-61 | 3 | DIBBS |
| 4820-01-035-2521 | 2013-07-195 | 19 | DIBBS |
| 4820-01-035-2521 | 2013-03-87 | 21 | DIBBS |
| 4820-01-035-2521 | 2012-11-335 | 5 | DIBBS |
| 4820-01-035-2521 | 2012-04-110 | 8 | DIBBS |
| 4820-01-035-2521 | 2009-03-70 | 27 | DIBBS |
| 4820-01-035-2521 | 2009-02-41 | 40 | DIBBS |
Cross Reference | NSN 4820-01-035-2521
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3023286 | 00198 | PRATT & WHITNEY CANADA CIE DIVPRATT & WHITNEY CANADA CORP. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-035-2521
Related Products | NSN 4820-01-035-2521
Technical Data | NSN 4820-01-035-2521
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | STEEL AMS6470 |
| SEAT MATERIAL | ANY ACCEPTABLE |
| PACKING MATERIAL | ANY ACCEPTABLE |
| FLOW CONTROL DEVICE | POPPET |
| FLOW CONTROL DEVICE MATERIAL | ANY ACCEPTABLE |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | UNTHREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | E1 PLAIN |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | UNTHREADED EXTERNAL TUBE |

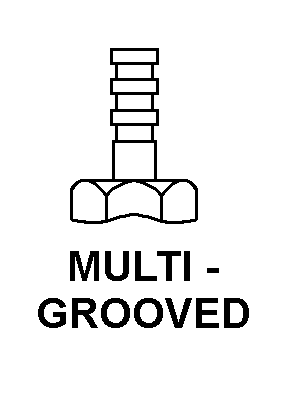

| SECOND END STYLE DESIGNATOR | E9 MULTI-GROOVED |
| SECOND END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES NOMINAL |
| BODY STYLE | A1 STRAIGHT THRU |
| MEDIA FOR WHICH DESIGNED | ANY ACCEPTABLE |
| REGULATION TYPE | AUTOMATIC SINGLE STAGE |
| VALVE LOADING METHOD | SPRING |
| MAXIMUM INLET PRESSURE RATING | NOT RATED |
| OUTLET PRESSURE ACCURACY RATING | NOT RATED |
| FILTER | NOT INCLUDED |
| MANUFACTURERS CODE | 00198 |
| DESIGN CONTROL REFERENCE | 3023286 |
