NSN 4820-01-009-0340 40916D26, 409-16D2-6, 01-009-0340

Product Details | CHECK VALVE

4820-01-009-0340 A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design.

Part Alternates: 40916D26, 409-16D2-6, 4820-01-009-0340, 01-009-0340, 4820010090340, 010090340

Valves | Valves, Nonpowered

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
48	01 SEP 1975	01-009-0340	05487 ( VALVE, CHECK )

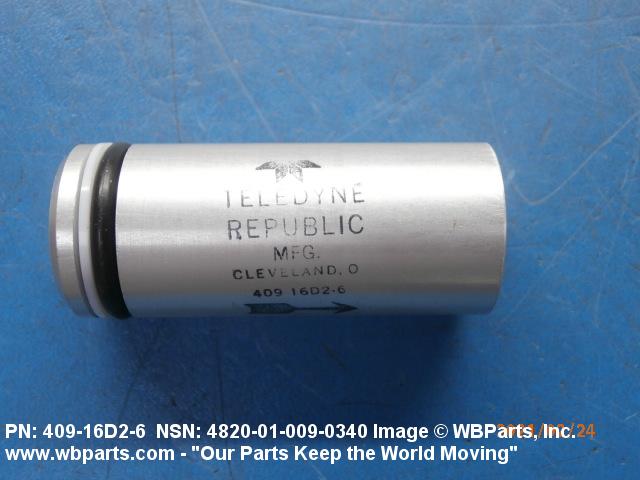

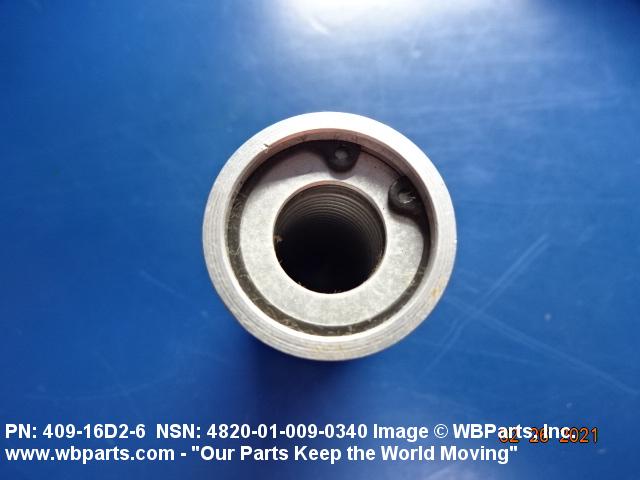

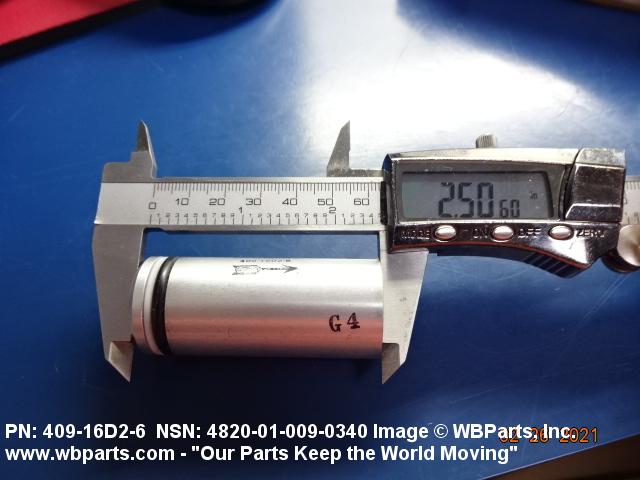

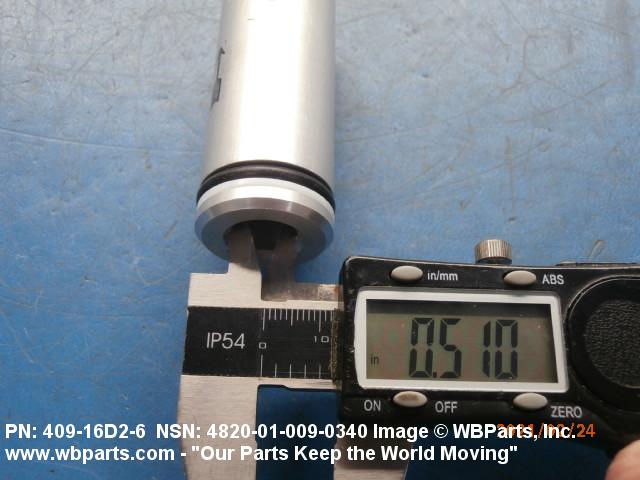

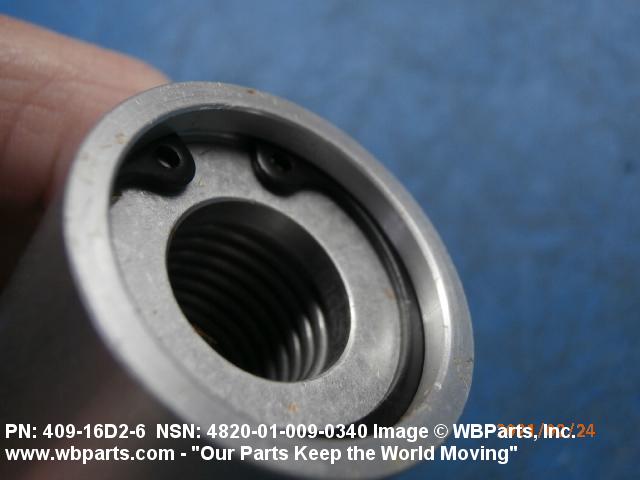

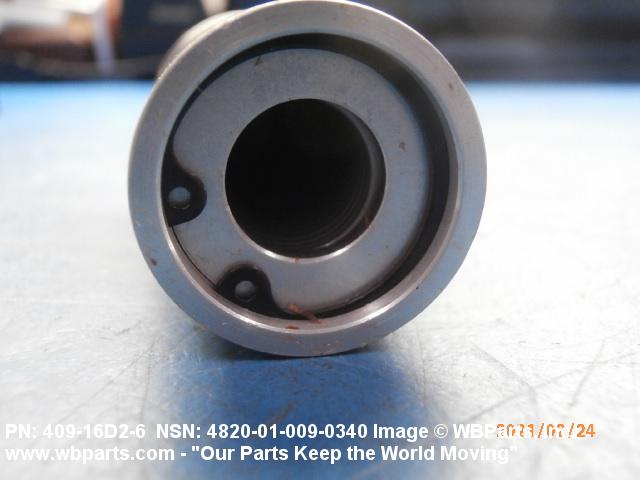

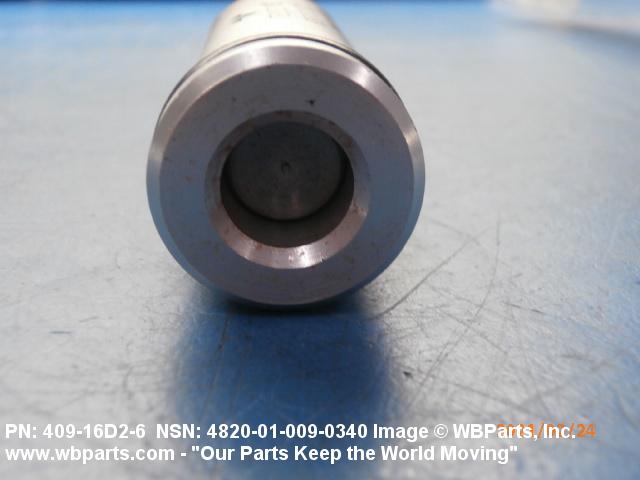

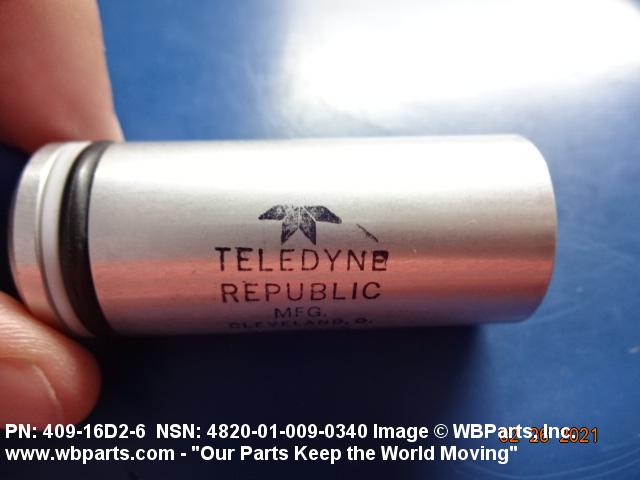

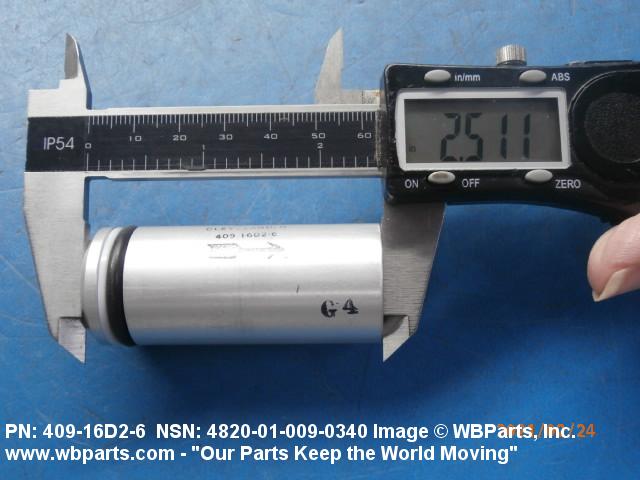

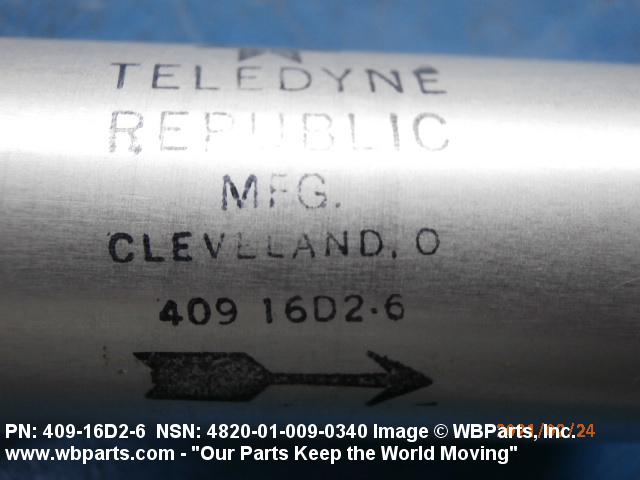

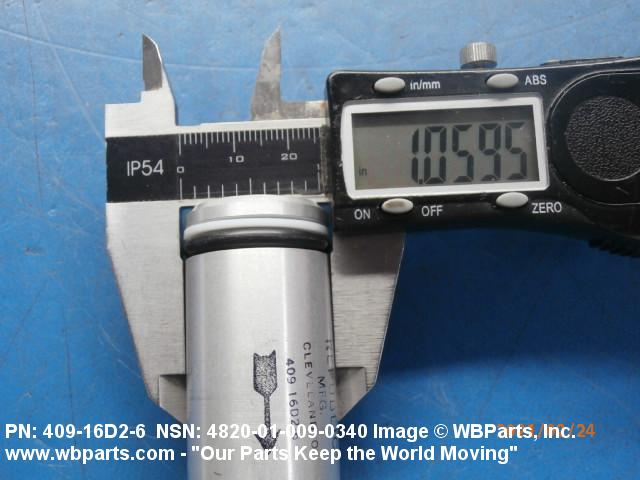

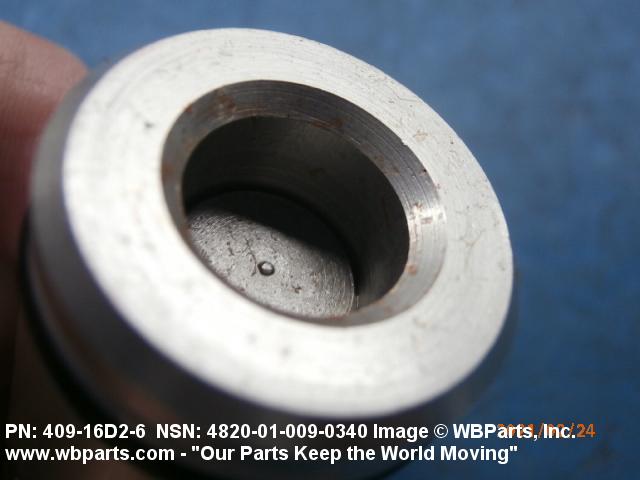

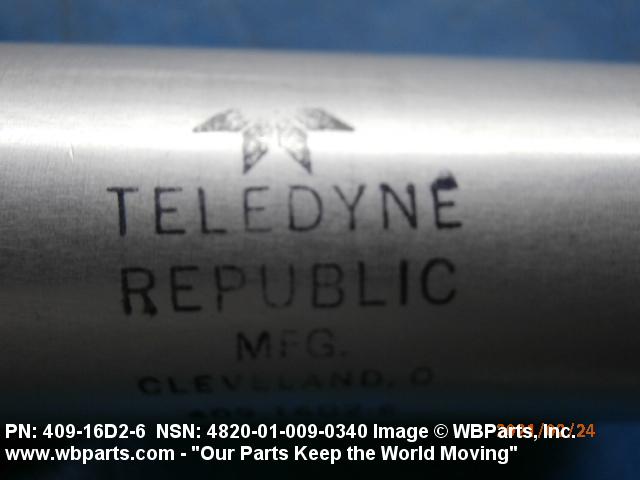

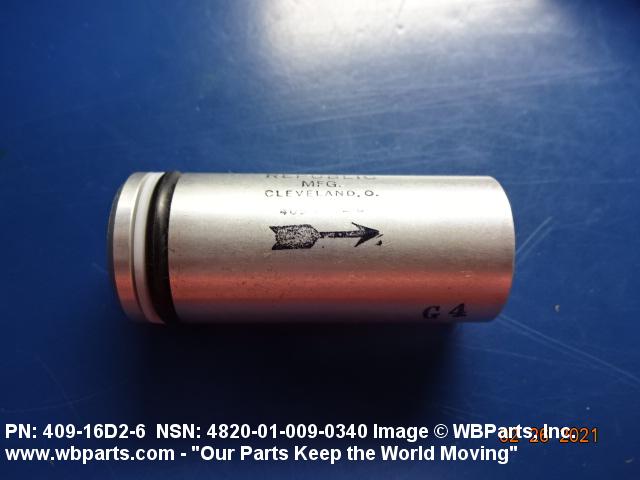

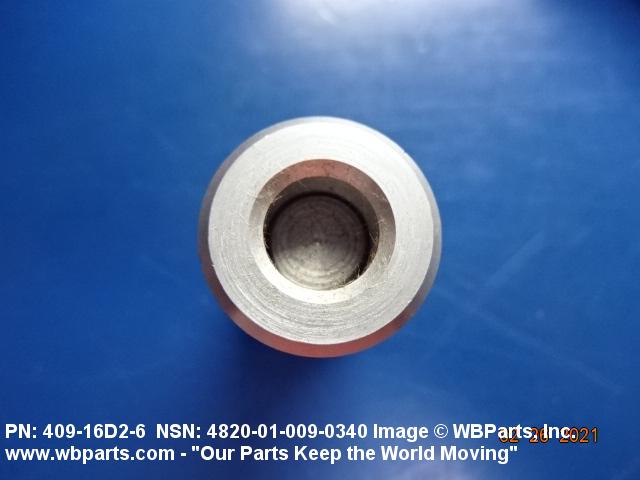

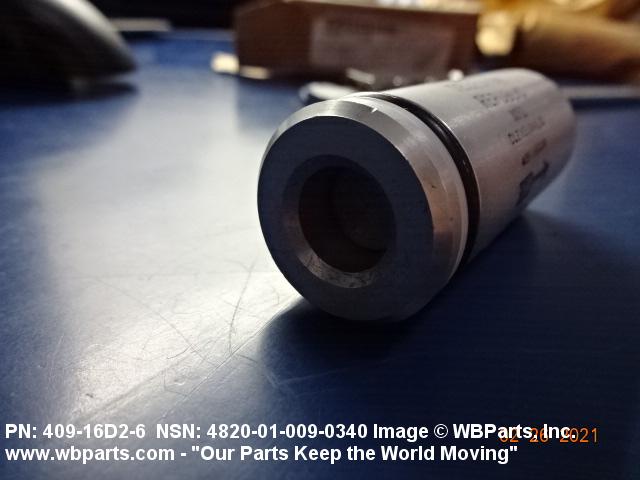

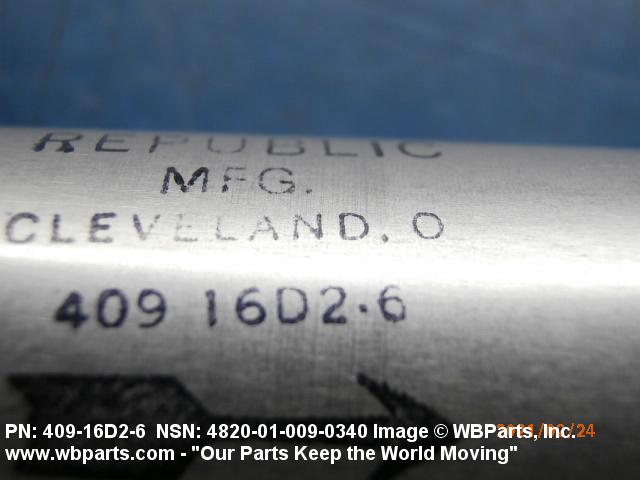

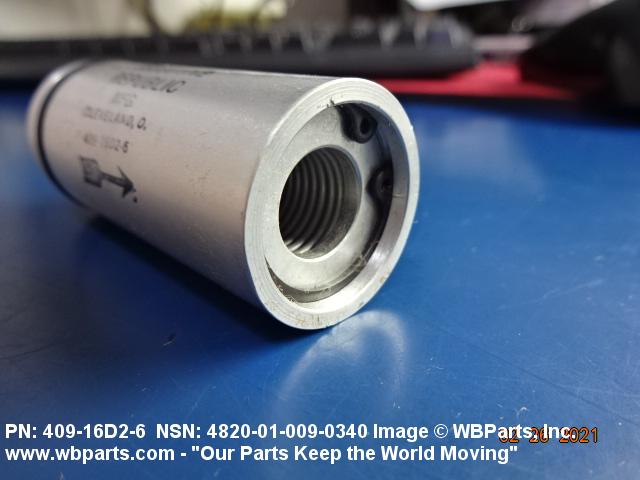

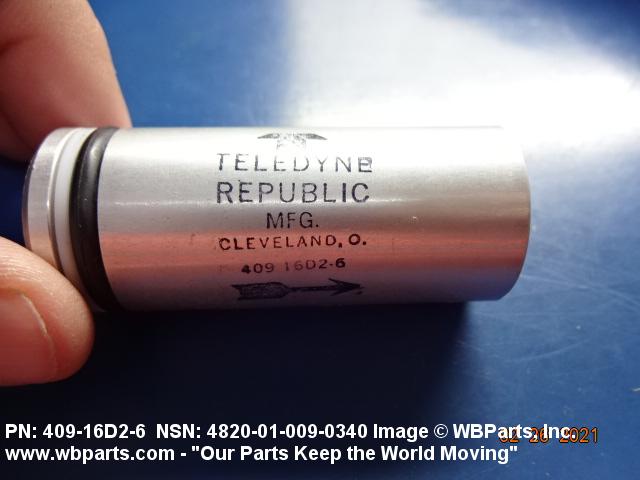

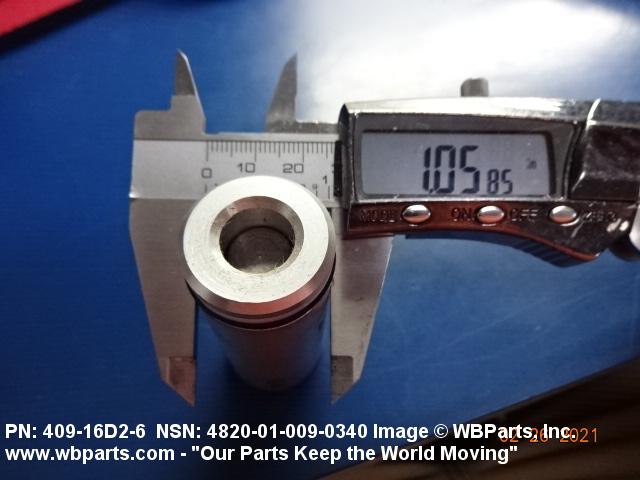

Drawings & Photos | NSN 4820-01-009-0340

Part Number	Request Date	QTY	Origin
4820-01-009-0340	2024-12-341	1	US
4820-01-009-0340	2024-07-185	1	US
40916D26	2023-06-180	1	us
4820-01-009-0340	2023-05-151	10	United States
40916D26	2023-02-58	2	US
4820-01-009-0340	2021-02-41	16	United States
4820-01-009-0340	2021-01-11	2	US
4820-01-009-0340	2021-01-11	6	US
4820-01-009-0340	2019-12-351	2	NO
4820-01-009-0340	2019-08-235	6	Spain
4820-01-009-0340	2019-07-212	20	Spain
40916D26	2019-07-197	20	Spain
4820-01-009-0340	2018-02-57	19	DIBBS
4820-01-009-0340	2018-02-46	19	DIBBS
4820-01-009-0340	2017-11-316	16	DIBBS
4820-01-009-0340	2015-05-137	18	DIBBS
4820-01-009-0340	2014-02-45	17	DIBBS
4820-01-009-0340	2014-01-30	17	DIBBS
4820-01-009-0340	2011-01-28	8	DIBBS

Cross Reference | NSN 4820-01-009-0340

Part Number	Cage Code	Manufacturer
409-16D2-6	09990	PARKER-HANNIFIN CORPORATION DBA HYDRAULIC VALVE DIV
409-16D2-6	86768	TELEDYNE INDUSTRIES INC TELEDYNE FLUID SYSTEMS REPUBLIC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4820-01-009-0340

Compare

Related Products | NSN 4820-01-009-0340

4820-01-009-0470, 4820-01-009-0625, 4820-01-009-0626, 4820-01-009-0627, 4820-01-009-0628

Technical Data | NSN 4820-01-009-0340

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY BODY STEEL COMP 440A OR STEEL COMP 440B OR STEEL COMP 440C FLOW CONTROL DEVICE
SURFACE TREATMENT	ANODIZE
STYLE DESIGNATOR	A6 STRAIGHT THRU
FLOW CONTROL DEVICE	POPPET
MEDIA FOR WHICH DESIGNED	HYDRAULIC FLUID, PETROLEUM BASE SINGLE RESPONSE
MAXIMUM OPERATING PRESSURE	5000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
MAXIMUM OPERATING TEMP	250.0 DEG FAHRENHEIT SINGLE RESPONSE
VALVE OPERATION METHOD	AUTOMATIC
MOUNTING POSITION	HORIZONTAL OR VERTICAL
DISK LOADING METHOD	SPRING
SPECIAL FEATURES	CARTRIDGE TYPE
MANUFACTURERS CODE	09990
DESIGN CONTROL REFERENCE	409-16D2-6

Restrictions/Controls & Freight Information | NSN 4820-01-009-0340

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	051080	FAUCETS,BIBCOCKS,GATES VALVES
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	594	unknown
Originating Activity Code	SE	San Antonio Air Logistics Center Kelly AFB, TX 78241-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4820-01-009-0340

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	KU	TG:NON-AUTOMATIC AVIONICS TEST EQUIPMENT
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
