NSN 4820-00-992-4660 B53920, DC62NX1, 00-992-4660
Product Details | VALVE SEAT
4820-00-992-4660 A replaceable item designed to provide a stationary seating surface for a mating, moveable item such as a valve disk or the like. The body may have a flange of various shapes. For diesel and gasoline reciprocating engines, see INSERT, ENGINE VALVE SEAT.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: B53920, DC62NX1, 4820-00-992-4660, 00-992-4660, 4820009924660, 009924660
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1962 | 00-992-4660 | 22113 ( SEAT, VALVE ) |

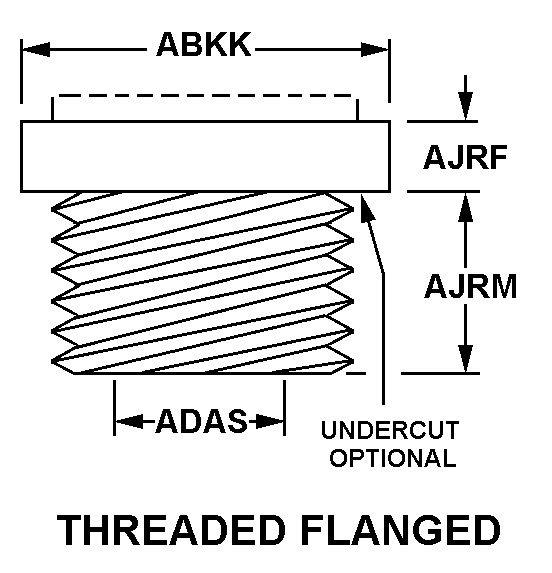

Drawings & Photos | NSN 4820-00-992-4660
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-992-4660
Related Products | NSN 4820-00-992-4660
Technical Data | NSN 4820-00-992-4660
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B1A THREADED FLANGED |
| FLANGE DIAMETER | 2.460 INCHES MINIMUM AND 2.480 INCHES MAXIMUM |
| FLANGE SEAT TO DISK END HEIGHT | 1.000 INCHES NOMINAL |
| UNDER FLANGE HEIGHT | 1.000 INCHES NOMINAL |
| BODY STEPPED INSIDE DIAMETER | 0.500 INCHES NOMINAL FIRST STEP 0.703 INCHES NOMINAL SECOND STEP 1.500 INCHES NOMINAL THIRD STEP |
| MATERIAL | STEEL BODY STEEL SEAT |
| MATERIAL DOCUMENT AND CLASSIFICATION | DE15-15B MFR REF SINGLE MATERIAL RESPONSE BODY STELLITE HAYNES 6 MFR REF SINGLE MATERIAL RESPONSE SEAT |
| HARDNESS RATING | NOT RATED |
| SEATING SURFACE SHAPE | RADIAL |
| SEAT RADIUS | 0.185 INCHES MINIMUM AND 0.189 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UN SINGLE THREADED PORTION |
| NOMINAL THREAD SIZE | 2.000 INCHES SINGLE THREADED PORTION |
| THREAD QUANTITY PER INCH | 12 SINGLE THREADED PORTION |
| THREAD CLASS | 2A SINGLE THREADED PORTION |
| THREAD LENGTH | 1.000 INCHES NOMINAL SINGLE THREADED PORTION |
| III FSC APPLICATION DATA | STEAM TURBINE,ELECTRIC GENERATION |
| MANUFACTURERS CODE | 16712 |
| DESIGN CONTROL REFERENCE | DC62NX1 |
Restrictions/Controls & Freight Information | NSN 4820-00-992-4660
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-992-4660
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
