Product Details | GLOBE VALVE

4820-00-988-3682 A valve with one inlet and one outlet connection with outlet flow parallel to inlet flow. The flow is controlled by the action of a stem which lifts the disk perpendicularly off the center axis of its seat. The stem is at a 90 degree (1.5708 radians) angle to axis of flow. Excludes VALVE, STOP-CHECK; COCK, SHUTOFF, SCREW STEM; and VALVE, SOLENOID.20248100015Valves, Powered48200018Valves, Nonpowered

Part Alternates: MS2953012, MS29530-12, MILV25023, MIL-V-25023, 359012, 35901-2, 72D12, 72D-12, 7377404, 815112AF, 8151-12AF, 4820-00-988-3682, 00-988-3682, 4820009883682, 009883682

Valves | Valves, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
48 01 JAN 1962 00-988-3682

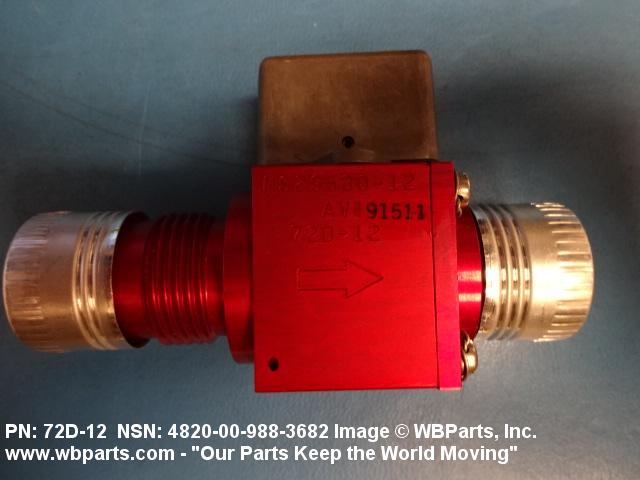

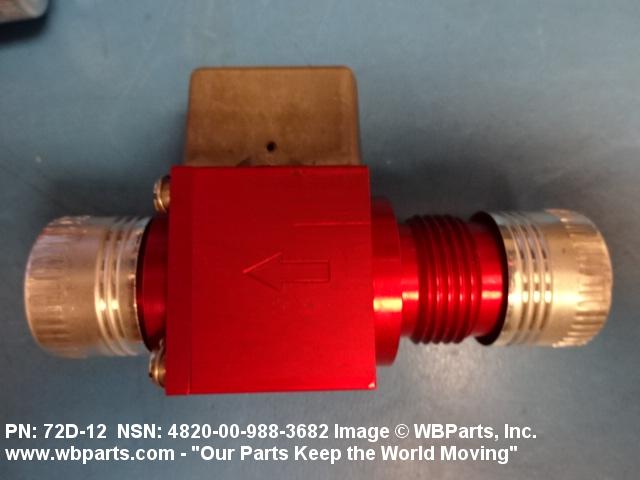

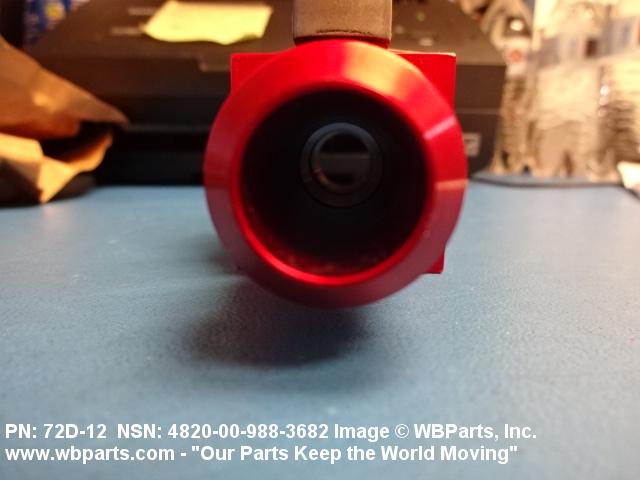

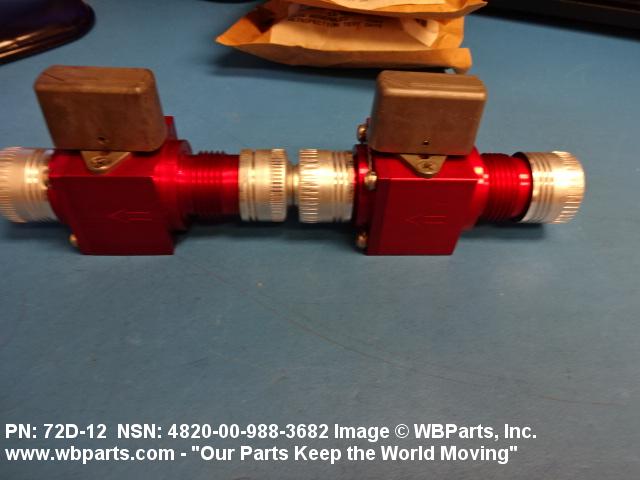

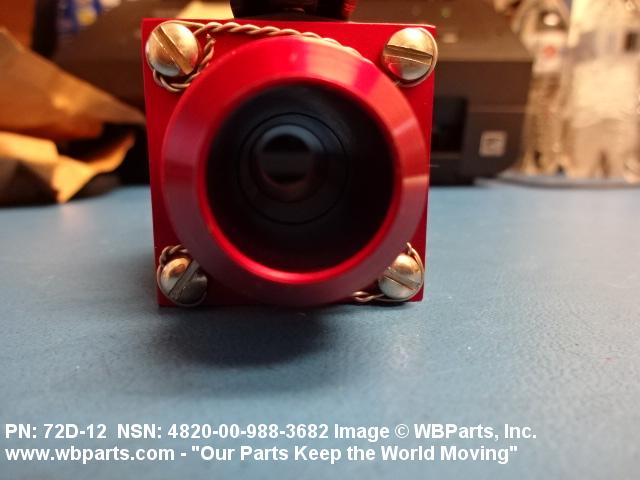

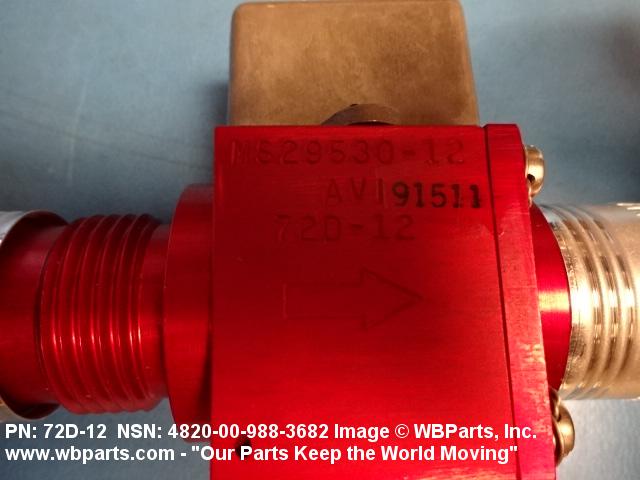

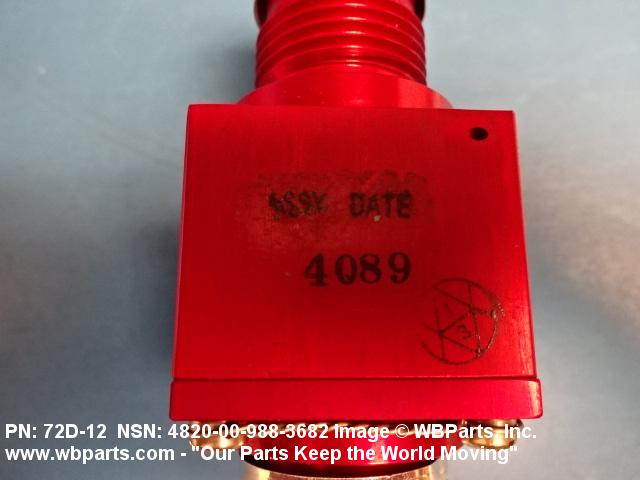

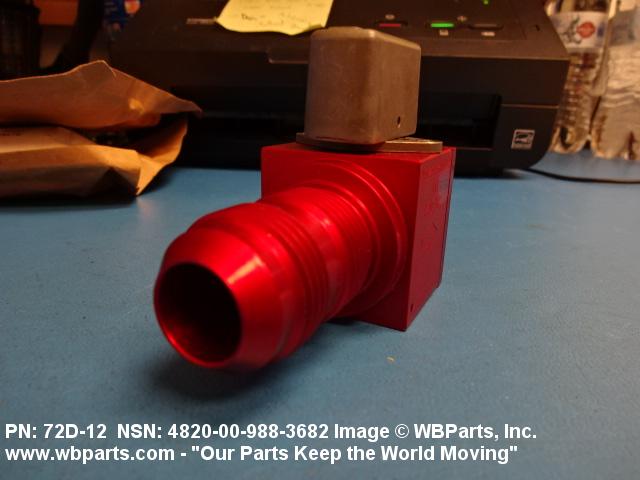

Drawings & Photos | NSN 4820-00-988-3682


Demand History | NSN 4820-00-988-3682

Part Number Request Date QTY Origin
4820-00-988-3682 2020-08-227 2 United States
4820-00-988-3682 2019-06-154 2 DIBBS
4820-00-988-3682 2019-05-141 2 DIBBS
MS2953012 2006-10-286 10 United States

Cross Reference | NSN 4820-00-988-3682

Part Number Cage Code Manufacturer
35901-2 92003 PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS
72D-12 91511 AUTO-VALVE, INC.
7377404 88277 BOEING COMPANY, THE DBA BOEING
8151-12AF 92003 PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS
MIL-V-25023 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS29530-12 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4820-00-988-3682

Technical Data | NSN 4820-00-988-3682

Characteristic Specifications
MATERIAL ALUMINUM ALLOY OVERALL
STYLE DESIGNATOR A1 STRAIGHT THRU
FLOW CONTROL DEVICE PISTON
VALVE OPERATION METHOD MANUAL
CONNECTION TYPE THREADED EXTERNAL TUBE ALL ENDS
CONNECTION STYLE G42 FLARED ALL ENDS
SEAT ANGLE 37.0 DEGREES ALL ENDS
THREAD SERIES DESIGNATOR UN ALL ENDS
NOMINAL THREAD SIZE 1.500 INCHES ALL ENDS
THREAD QUANTITY PER INCH 12 ALL ENDS
THREAD CLASS 3A ALL ENDS
THREAD DIRECTION RIGHT-HAND ALL ENDS
BONNET TYPE INSIDE SCREW
BONNET ATTACHMENT METHOD THREADED
FEATURES PROVIDED BONNET PACKING
SPECIAL FEATURES BULKHEAD ON INLET END
MANUFACTURERS CODE 81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MIL-V-25023
MANUFACTURERS CODE 96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS29530-12

Restrictions/Controls & Freight Information | NSN 4820-00-988-3682

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 051080 FAUCETS,BIBCOCKS,GATES VALVES
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 736 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4820-00-988-3682

Category Code Description
Materiel Category and Inventory ManagerJ Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
