NSN 4820-00-982-2793 4112, 41-12, 00-982-2793
Product Details | PLUG COCK
4820-00-982-2793 An item that controls the flow of a fluid by rotation of a ported plug within a suitable ported seat. It must not have any lubrication other than from the fluid controlled, nor contain any nonmetallic seal between plug and seat. See also VALVE, SEATLESS and VALVE, PLUG.
Part Alternates: 4112, 41-12, 4820-00-982-2793, 00-982-2793, 4820009822793, 009822793
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
48 | 01 JAN 1962 | 00-982-2793 | 16991 ( COCK, PLUG ) |
Cross Reference | NSN 4820-00-982-2793
Part Number | Cage Code | Manufacturer |
---|---|---|
41-12 | 72219 | CONBRACO INDUSTRIES INC |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-982-2793
Related Products | NSN 4820-00-982-2793
Technical Data | NSN 4820-00-982-2793
Characteristic | Specifications |
---|---|
MATERIAL | COPPER ALLOY BODY COPPER ALLOY FLOW CONTROL DEVICE COPPER ALLOY STEM |
FLOW STYLE | A1 TWO-WAY TWO PORT 90 DEGREE PLUG TURN |
VALVE OPERATION METHOD | MANUAL |
CONNECTION TYPE | THREADED EXTERNAL PIPE 1ST END |

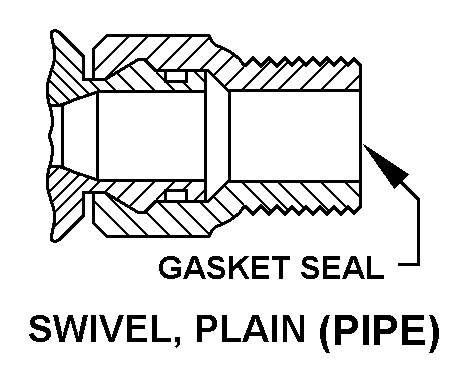

CONNECTION STYLE | B48B SWIVEL, PLAIN 1ST END |
NOMINAL PIPE SIZE ACCOMMODATED | 0.125 INCHES 1ST END |
THREAD SERIES DESIGNATOR | NPT 1ST END |
NOMINAL THREAD SIZE | 0.125 INCHES 1ST END |
THREAD QUANTITY PER INCH | 27 1ST END |
THREAD DIRECTION | RIGHT-HAND 1ST END |
FEATURES PROVIDED | NONADJUSTABLE ROTATION |
Restrictions/Controls & Freight Information | NSN 4820-00-982-2793
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
No Freight Information |
