NSN 4820-00-980-8475 23153, 2315-3, 24392311

Product Details | CHECK VALVE

4820-00-980-8475 A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design.

Part Alternates: 23153, 2315-3, 24392311, 2-43923-11, 2C5956, 4820-00-980-8475, 00-980-8475, 4820009808475, 009808475

Valves | Valves, Nonpowered

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
48	01 JAN 1962	00-980-8475	05487 ( VALVE, CHECK )

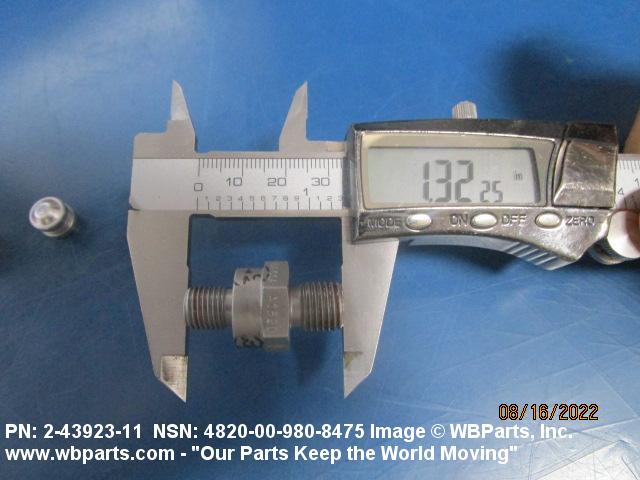

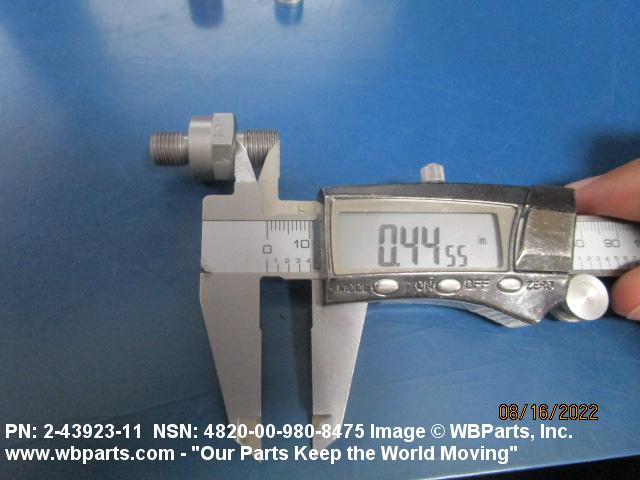

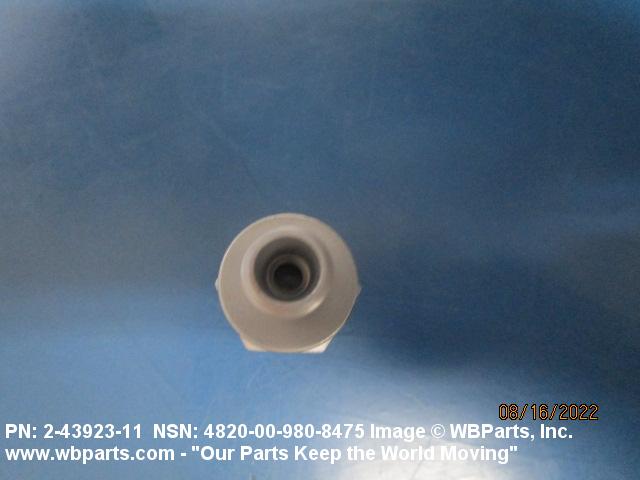

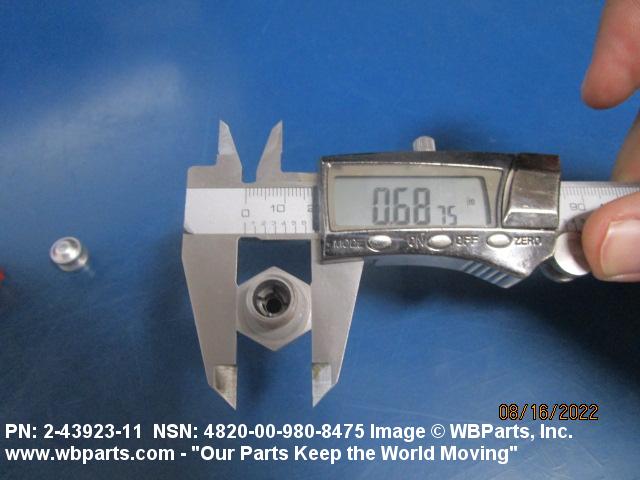

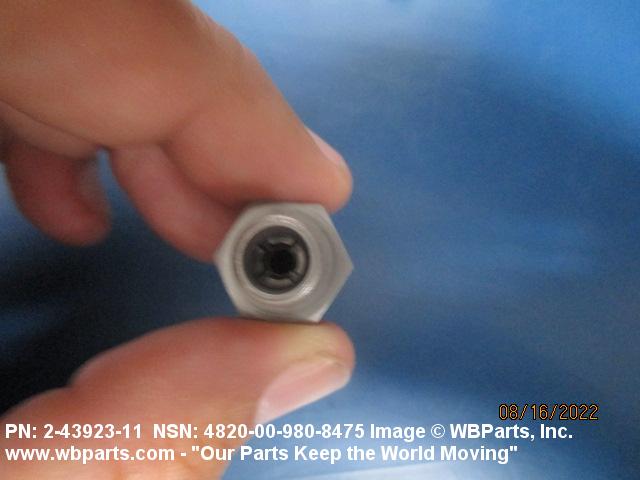

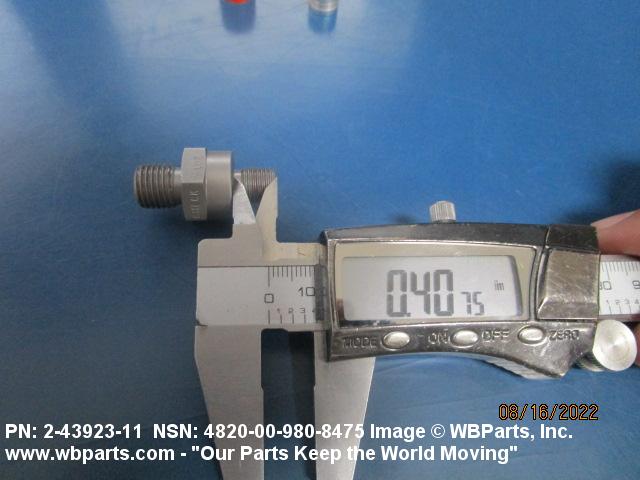

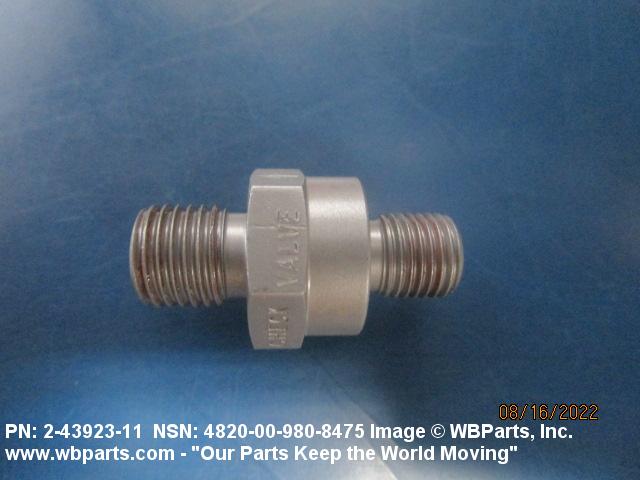

Drawings & Photos | NSN 4820-00-980-8475

Part Number	Request Date	QTY	Origin
2315-3	2024-06-162	17	DIBBS
2-43923-11	2024-06-162	17	DIBBS
2C5956	2024-06-162	17	DIBBS
M4014-3-4	2024-06-162	17	DIBBS
2315-3	2024-05-151	17	DIBBS
2-43923-11	2024-05-151	17	DIBBS
2C5956	2024-05-151	17	DIBBS
M4014-3-4	2024-05-151	17	DIBBS
2315-3	2023-12-362	8	DIBBS
2-43923-11	2023-12-362	8	DIBBS
2C5956	2023-12-362	8	DIBBS
M4014-3-4	2023-12-362	8	DIBBS
2315-3	2023-11-334	19	DIBBS
2-43923-11	2023-11-334	19	DIBBS
2C5956	2023-11-334	19	DIBBS
M4014-3-4	2023-11-334	19	DIBBS
2315-3	2022-12-342	42	DIBBS
2-43923-11	2022-12-342	42	DIBBS
2C5956	2022-12-342	42	DIBBS
M4014-3-4	2022-12-342	42	DIBBS
2315-3	2022-11-317	7	DIBBS
2-43923-11	2022-11-317	7	DIBBS
2C5956	2022-11-317	7	DIBBS
M4014-3-4	2022-11-317	7	DIBBS
2315-3	2022-09-265	18	DIBBS
2-43923-11	2022-09-265	18	DIBBS
2C5956	2022-09-265	18	DIBBS
M4014-3-4	2022-09-265	18	DIBBS
4820-00-980-8475	2022-08-214	1	United States
2315-3	2022-07-202	16	DIBBS
2-43923-11	2022-07-202	16	DIBBS
2C5956	2022-07-202	16	DIBBS
M4014-3-4	2022-07-202	16	DIBBS
2315-3	2022-07-186	20	DIBBS
2315-3	2022-07-186	11	DIBBS
2-43923-11	2022-07-186	20	DIBBS
2-43923-11	2022-07-186	11	DIBBS
2C5956	2022-07-186	20	DIBBS
2C5956	2022-07-186	11	DIBBS
M4014-3-4	2022-07-186	20	DIBBS
M4014-3-4	2022-07-186	11	DIBBS
2315-3	2022-06-173	20	DIBBS
2315-3	2022-06-173	11	DIBBS
2-43923-11	2022-06-173	20	DIBBS
2-43923-11	2022-06-173	11	DIBBS
2C5956	2022-06-173	20	DIBBS
2C5956	2022-06-173	11	DIBBS
M4014-3-4	2022-06-173	20	DIBBS
M4014-3-4	2022-06-173	11	DIBBS
2315-3	2022-06-160	18	DIBBS
2-43923-11	2022-06-160	18	DIBBS
2C5956	2022-06-160	18	DIBBS
2315-3	2022-04-108	11	DIBBS
2-43923-11	2022-04-108	11	DIBBS
2C5956	2022-04-108	11	DIBBS
2315-3	2022-04-97	11	DIBBS
2-43923-11	2022-04-97	11	DIBBS
2C5956	2022-04-97	11	DIBBS
2315-3	2021-11-326	20	DIBBS
2-43923-11	2021-11-326	20	DIBBS
2C5956	2021-11-326	20	DIBBS
2315-3	2021-11-318	20	DIBBS
2-43923-11	2021-11-318	20	DIBBS
2C5956	2021-11-318	20	DIBBS
2315-3	2021-09-245	15	DIBBS
2-43923-11	2021-09-245	15	DIBBS
2C5956	2021-09-245	15	DIBBS
2315-3	2021-04-98	14	DIBBS
2-43923-11	2021-04-98	14	DIBBS
2C5956	2021-04-98	14	DIBBS
2315-3	2021-01-28	18	DIBBS
2-43923-11	2021-01-28	18	DIBBS
2C5956	2021-01-28	18	DIBBS
2315-3	2020-01-09	56	DIBBS
2-43923-11	2020-01-09	56	DIBBS
2C5956	2020-01-09	56	DIBBS
2315-3	2019-01-28	51	DIBBS
2-43923-11	2019-01-28	51	DIBBS
2C5956	2019-01-28	51	DIBBS
2315-3	2019-01-17	51	DIBBS
2-43923-11	2019-01-17	51	DIBBS
2C5956	2019-01-17	51	DIBBS
4820-00-980-8475	2018-03-78	52	DIBBS
4820-00-980-8475	2018-03-67	52	DIBBS
4820-00-980-8475	2017-08-226	50	DIBBS
4820-00-980-8475	2017-08-215	50	DIBBS
4820-00-980-8475	2014-10-299	47	DIBBS
4820-00-980-8475	2014-06-163	45	DIBBS
4820-00-980-8475	2013-06-161	29	DIBBS
4820-00-980-8475	2012-01-31	15	DIBBS
4820-00-980-8475	2011-11-327	14	DIBBS
4820-00-980-8475	2009-11-306	27	DIBBS
4820-00-980-8475	2009-10-299	27	DIBBS
4820-00-980-8475	2009-08-229	15	DIBBS
4820-00-980-8475	2009-06-167	2	DIBBS
4820-00-980-8475	2009-06-157	7	DIBBS

Cross Reference | NSN 4820-00-980-8475

Part Number	Cage Code	Manufacturer
2-43923-11	06892	NORTHROP GRUMMAN SYSTEMS CORPORATION
2315-3	70236	TACTAIR FLUID CONTROLS, INC.
2315-3	99215	KAISER FLUID TECHNOLOGIES INC.
2315-3	99473	HAWKER PACIFIC AEROSPACE LANDING GEAR AND COMPONENTS MFG AND
2C5956	99240	CRISSAIR, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4820-00-980-8475

Compare

Related Products | NSN 4820-00-980-8475

4820-00-980-9665, 4820-00-980-9667, 4820-00-981-0639, 4820-00-981-1017, 4820-00-981-1330

Technical Data | NSN 4820-00-980-8475

Characteristic	Specifications
STYLE DESIGNATOR	A3 STRAIGHT THRU
FLOW CONTROL DEVICE	POPPET
MEDIA FOR WHICH DESIGNED	HYDRAULIC FLUID, PHOSPHATE-ESTER BASE SINGLE RESPONSE
MAXIMUM OPERATING PRESSURE	3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
CONNECTION TYPE	THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END
CONNECTION STYLE	B45 FLARELESS 1ST END B45 FLARELESS 2ND END
SEAT ANGLE	12.0 DEGREES 1ST END 12.0 DEGREES 2ND END
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.250 INCHES 1ST END 0.188 INCHES 2ND END
THREAD SERIES DESIGNATOR	UNF 1ST END UNF 2ND END
NOMINAL THREAD SIZE	0.437 INCHES 1ST END 0.375 INCHES 2ND END
THREAD QUANTITY PER INCH	20 1ST END 24 2ND END
THREAD CLASS	3A 1ST END 3A 2ND END
THREAD DIRECTION	RIGHT-HAND 1ST END RIGHT-HAND 2ND END
MOUNTING POSITION	HORIZONTAL
TEST DATA DOCUMENT	99240-2C5956 DRAWING
MANUFACTURERS CODE	99240
DESIGN CONTROL REFERENCE	2C5956

Restrictions/Controls & Freight Information | NSN 4820-00-980-8475

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	051080	FAUCETS,BIBCOCKS,GATES VALVES
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	594	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4820-00-980-8475

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	HS	SX:AIRCRAFT HYDRAULIC SYSTEMS AND COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
