NSN 4820-00-967-4843 A7312001103, A7312-001-103, 200113AEPC445
Product Details | VALVE SEAT
4820-00-967-4843 A replaceable item designed to provide a stationary seating surface for a mating, moveable item such as a valve disk or the like. The body may have a flange of various shapes. For diesel and gasoline reciprocating engines, see INSERT, ENGINE VALVE SEAT.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: A7312001103, A7312-001-103, 200113AEPC445, 6220B, 9524, 95247, 9524-7, 4820-00-967-4843, 00-967-4843, 4820009674843, 009674843
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1962 | 00-967-4843 | 22113 ( SEAT, VALVE ) |
Drawings & Photos | NSN 4820-00-967-4843
Demand History | NSN 4820-00-967-4843
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-967-4843 | 2017-09-260 | 14 | DIBBS |
| 4820-00-967-4843 | 2017-04-100 | 14 | DIBBS |
Cross Reference | NSN 4820-00-967-4843
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 200113AEPC445 | 0AT62 | DRESSER-RAND COMPANY DBA RECIPROCATING PRODUCTS DIV |
| 200113AEPC445 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| 200113AEPC445 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| 6220B | 0AT62 | DRESSER-RAND COMPANY DBA RECIPROCATING PRODUCTS DIV |
| 6220B | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| 9524 | 01343 | ANDERSON GREENWOOD LP DBA ANDERSON GREENWOOD CROSBY |
| 9524-7 | 01343 | ANDERSON GREENWOOD LP DBA ANDERSON GREENWOOD CROSBY |
| A7312-001-103 | 01343 | ANDERSON GREENWOOD LP DBA ANDERSON GREENWOOD CROSBY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-967-4843
Related Products | NSN 4820-00-967-4843
Technical Data | NSN 4820-00-967-4843
| Characteristic | Specifications |
|---|---|

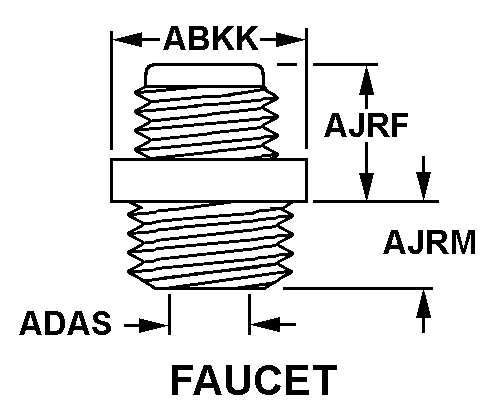

| STYLE DESIGNATOR | A12 FAUCET |
| FLANGE DIAMETER | 1.250 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 0.375 INCHES NOMINAL |
| FLANGE SEAT TO DISK END HEIGHT | 0.625 INCHES NOMINAL |
| UNDER FLANGE HEIGHT | 0.656 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| HARDNESS RATING | NOT RATED |
| SEATING SURFACE SHAPE | ANGULAR |
| SEAT ANGLE IN DEG | 0.750 NOMINAL |
| THREAD SERIES DESIGNATOR | UNEF FIRST THREADED PORTION UNEF SECOND THREADED PORTION |
| NOMINAL THREAD SIZE | 1.000 INCHES FIRST THREADED PORTION 1.000 INCHES SECOND THREADED PORTION |
| THREAD CLASS | 3A FIRST THREADED PORTION 3A SECOND THREADED PORTION |
| THREAD LENGTH | 0.250 INCHES NOMINAL FIRST THREADED PORTION 0.500 INCHES NOMINAL SECOND THREADED PORTION |
| SPECIAL FEATURES | SEAT FLANGE WITH WRENCHING FLATS |
Restrictions/Controls & Freight Information | NSN 4820-00-967-4843
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-967-4843
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
