NSN 4820-00-967-1240 957, 00-967-1240, 009671240
Product Details | PLUG COCK
4820-00-967-1240 An item that controls the flow of a fluid by rotation of a ported plug within a suitable ported seat. It must not have any lubrication other than from the fluid controlled, nor contain any nonmetallic seal between plug and seat. See also VALVE, SEATLESS and VALVE, PLUG.
Part Alternates: 957, 4820-00-967-1240, 00-967-1240, 4820009671240, 009671240
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1962 | 00-967-1240 | 16991 ( COCK, PLUG ) |
Drawings & Photos | NSN 4820-00-967-1240
Cross Reference | NSN 4820-00-967-1240
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 957 | 48422 | WILLIAM POWELL COMPANY THE DBA POWELL VALVE DIV THE STARFLO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-967-1240
Technical Data | NSN 4820-00-967-1240
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BODY COPPER ALLOY FLOW CONTROL DEVICE COPPER ALLOY STEM |

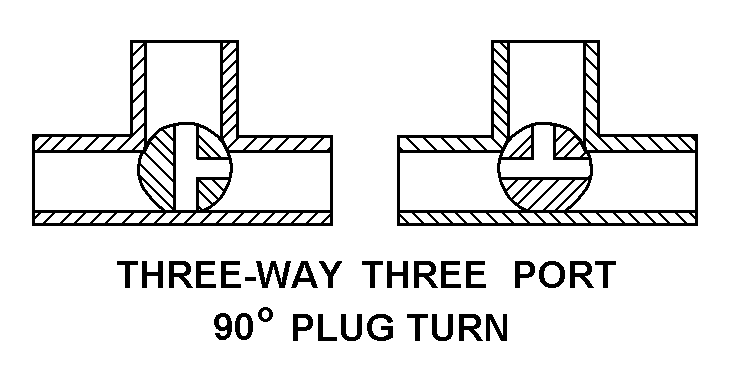

| FLOW STYLE | A17 THREE-WAY THREE PORT 90 DEGREE PLUG TURN |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | THREADED INTERNAL PIPE 1ST END |
| CONNECTION STYLE | B9 PLAIN 1ST END |
| NOMINAL PIPE SIZE ACCOMMODATED | 0.250 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | NPT 1ST END |
| NOMINAL THREAD SIZE | 0.250 INCHES 1ST END |
| THREAD QUANTITY PER INCH | 18 1ST END |
| THREAD DIRECTION | RIGHT-HAND 1ST END |
| FEATURES PROVIDED | NONADJUSTABLE ROTATION |
Restrictions/Controls & Freight Information | NSN 4820-00-967-1240
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
