NSN 4820-00-932-0836 R4V065A510A1, R4V06-5A5-10-A1, R4V065A910A1
Product Details | SAFETY RELIEF VALVE

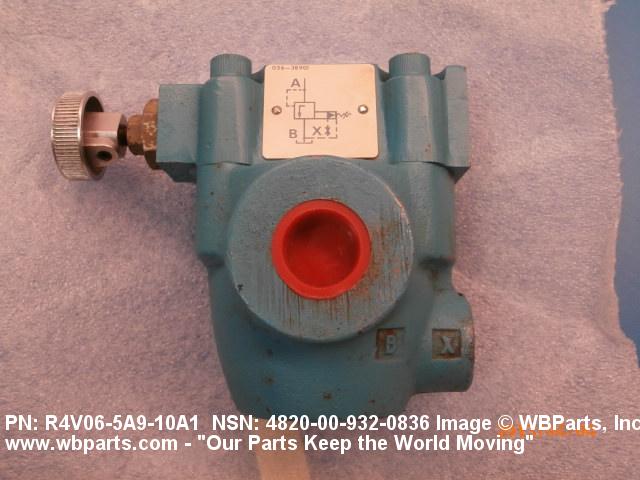

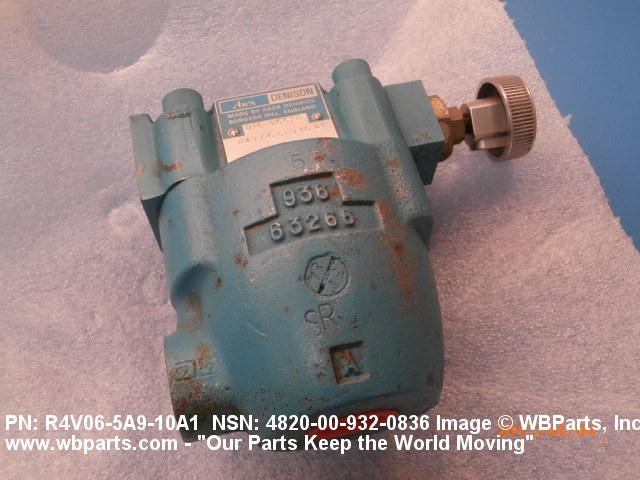

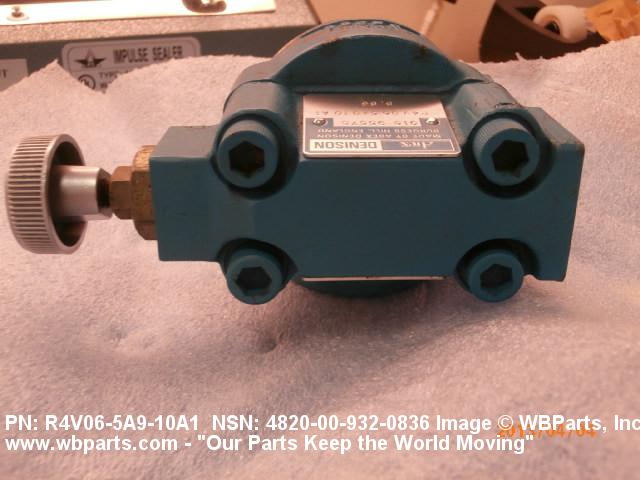

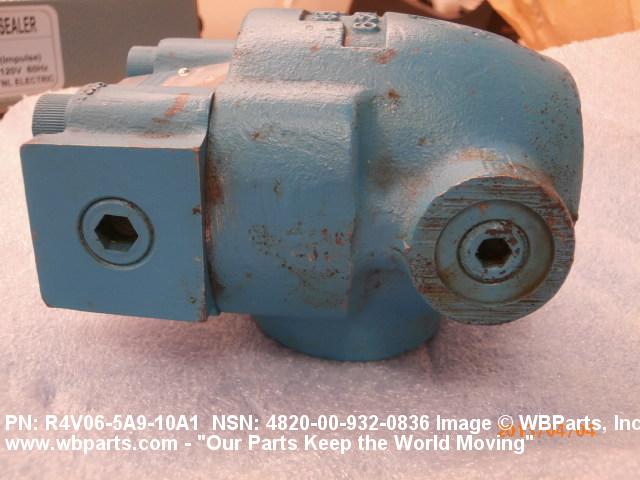

4820-00-932-0836 A valve designed to automatically release excessive pressures. It is actuated by static pressure upstream of the valve and is used as a safety valve or relief valve, and may be set to close at a predetermined pressure. It is not designed for regulation of continuously fluctuating loads. It may be inline or cartridge (manifold) design. Excludes VALVE (1), RELIEF, PRESSURE AND TEMPERATURE.
Part Alternates: R4V065A510A1, R4V06-5A5-10-A1, R4V065A910A1, R4V06-5A9-10A1, RV061503A, RV061-503A, RV12515, RV12-515, 4820-00-932-0836, 00-932-0836, 4820009320836, 009320836
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
48 | 23 SEP 1966 | 00-932-0836 | 05488 ( VALVE, SAFETY RELIEF ) |
Demand History | NSN 4820-00-932-0836
Part Number | Request Date | QTY | Origin |
---|---|---|---|
4820-00-932-0836 | 2023-04-117 | 1 | US |
R4V065A910A1 | 2022-10-286 | 4 | US |
4820-00-932-0836 | 2020-03-87 | 2 | US |
4820-00-932-0836 | 2013-03-84 | 1 | United States |
Cross Reference | NSN 4820-00-932-0836
Part Number | Cage Code | Manufacturer |
---|---|---|

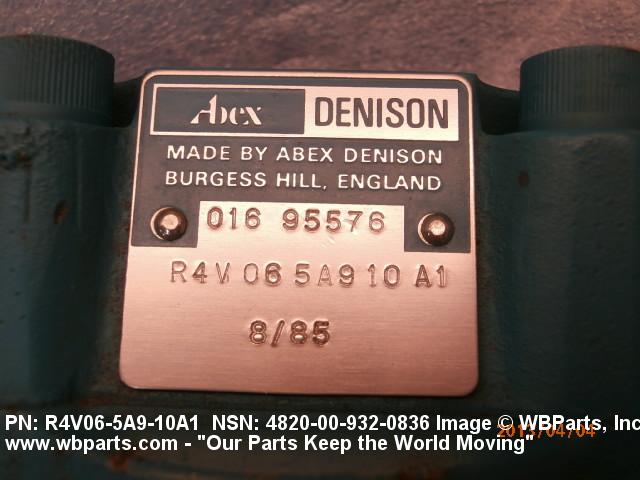

R4V06-5A5-10-A1 | 9F512 | PARKER-HANNIFIN CORPORATION DBA HYDRAULIC PUMP DIVISION |
R4V06-5A9-10A1 | 9F512 | PARKER-HANNIFIN CORPORATION DBA HYDRAULIC PUMP DIVISION |
RV061-503A | 9F512 | PARKER-HANNIFIN CORPORATION DBA HYDRAULIC PUMP DIVISION |
RV12-515 | 9F512 | PARKER-HANNIFIN CORPORATION DBA HYDRAULIC PUMP DIVISION |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-932-0836
Related Products | NSN 4820-00-932-0836
Technical Data | NSN 4820-00-932-0836
Characteristic | Specifications |
---|---|
MATERIAL | IRON CAST BODY STEEL FLOW CONTROL DEVICE STEEL SEAT |
STYLE DESIGNATOR | A2 CROSS |
FLOW CONTROL DEVICE | POPPET |
MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID, MINERAL BASE SINGLE RESPONSE |
MAXIMUM OPERATING PRESSURE | 5000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
VALVE DISCHARGE FLOW RATE | 20.0 GALLONS PER MINUTE |
VALVE OPERATION METHOD | AUTOMATIC |
CONNECTION TYPE | THREADED INTERNAL PIPE ALL ENDS |
CONNECTION STYLE | G9 PLAIN ALL ENDS |
NOMINAL PIPE SIZE ACCOMMODATED | 0.750 INCHES ALL ENDS |
THREAD SERIES DESIGNATOR | NPT ALL ENDS |
NOMINAL THREAD SIZE | 0.750 INCHES ALL ENDS |
THREAD DIRECTION | RIGHT-HAND ALL ENDS |
RENEWABLE SEAT RING TYPE | PRESSED-IN |
BONNET TYPE | INSIDE SPRING |
BONNET ATTACHMENT METHOD | BOLTED |
DISK LOADING METHOD | SPRING |
ADJUSTABLE PRESSURE RANGE | 100.0 TO 5000.0 POUNDS PER SQUARE INCH |
Restrictions/Controls & Freight Information | NSN 4820-00-932-0836
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
Less than car load rating | ||
Less than truck load rating | P | 77.5 |
Water commodity Code | 576 | unknown |
Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-932-0836
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
