NSN 4820-00-916-3496 2R1816, 00-916-3496, 009163496
Product Details | VALVE SEAT
4820-00-916-3496 A replaceable item designed to provide a stationary seating surface for a mating, moveable item such as a valve disk or the like. The body may have a flange of various shapes. For diesel and gasoline reciprocating engines, see INSERT, ENGINE VALVE SEAT.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 2R1816, 4820-00-916-3496, 00-916-3496, 4820009163496, 009163496
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 08 JUL 1966 | 00-916-3496 | 22113 ( SEAT, VALVE ) |
Drawings & Photos | NSN 4820-00-916-3496
Demand History | NSN 4820-00-916-3496
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2R1816 | 2019-08-213 | 15 | DIBBS |
| 4820-00-916-3496 | 2014-09-255 | 4 | DIBBS |
Cross Reference | NSN 4820-00-916-3496
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2R1816 | 99240 | CRISSAIR, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-916-3496
Related Products | NSN 4820-00-916-3496
Technical Data | NSN 4820-00-916-3496
| Characteristic | Specifications |
|---|---|

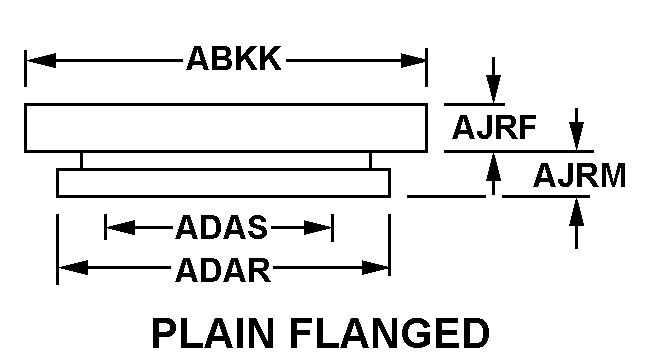

| STYLE DESIGNATOR | B10 PLAIN FLANGED |
| FLANGE DIAMETER | 0.736 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.736 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 0.270 INCHES NOMINAL |
| FLANGE SEAT TO DISK END HEIGHT | 0.480 INCHES NOMINAL |
| UNDER FLANGE HEIGHT | 1.590 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7720 MIL SPEC ALL MATERIAL RESPONSES OVERALL |
| HARDNESS RATING | NOT RATED |
| SEATING SURFACE SHAPE | FLAT |
| MANUFACTURERS CODE | 99240 |
| DESIGN CONTROL REFERENCE | 2R1816 |
Restrictions/Controls & Freight Information | NSN 4820-00-916-3496
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-916-3496
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
