NSN 4820-00-882-9900 SK20420AA643, SK-20420AA-643, 2620420AA65513
Product Details | PNEUMATIC TANK VALVE
4820-00-882-9900 A valve, designed for attachment to pressure tanks and/or mechanical equipment for the purpose of permitting an increase, decrease, and the gaging of pressure (similar to tire valves) within a confining chamber carrying compressed air, gases or oil.
Part Alternates: SK20420AA643, SK-20420AA-643, 2620420AA65513, 26-20420AA655-13, 4820-00-882-9900, 00-882-9900, 4820008829900, 008829900
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1962 | 00-882-9900 | 06509 ( VALVE, PNEUMATIC TANK ) |
Drawings & Photos | NSN 4820-00-882-9900
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-882-9900
Related Products | NSN 4820-00-882-9900
Technical Data | NSN 4820-00-882-9900
| Characteristic | Specifications |
|---|---|

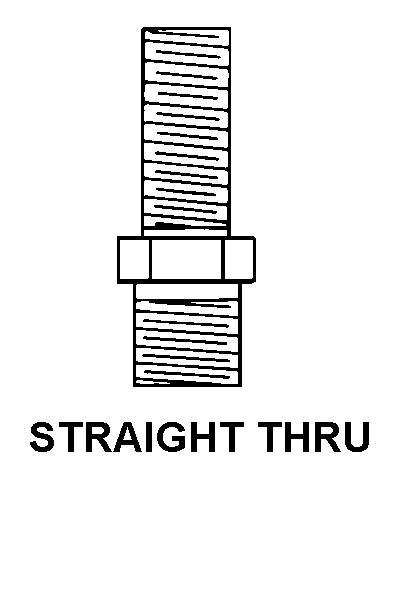

| BODY STYLE | D3 STRAIGHT THRU |
| BODY MATERIAL | BRASS |
| SEAT MATERIAL | BRASS |
| FLOW CONTROL DEVICE | POPPET |
| FLOW CONTROL DEVICE MATERIAL | ANY ACCEPTABLE |
| STEM MATERIAL | ANY ACCEPTABLE |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | J6 PLAIN |
| FIRST END NOMINAL PIPE SIZE ACCOMMODATED | 0.125 INCHES |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL BOSS |

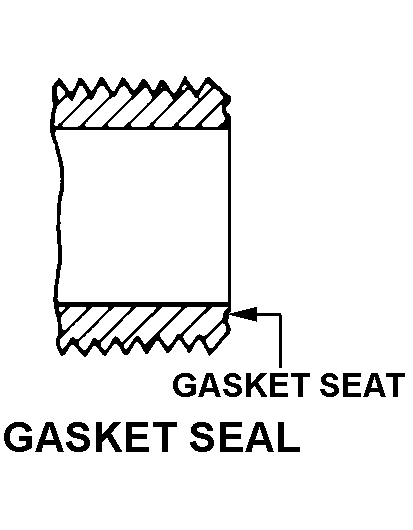

| SECOND END STYLE DESIGNATOR | J9 GASKET SEAL |
| SECOND END THREAD CLASS | ANY ACCEPTABLE |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| TEMP RATING | NOT RATED |
| CORE ENVIRONMENTAL PROTECTION | CORROSION AND OIL RESISTANT |
| COMMERCIAL CORE LENGTH DESIGNATOR | SHORT |
| SPRING MATERIAL | STEEL, CORROSION RESISTING |
| COMMERCIAL SPRING TENSION RATING | MEDIUM |
| FURNISHED ITEMS | CAP |
| MANUFACTURERS CODE | 17875 |
| DESIGN CONTROL REFERENCE | SK-20420AA-643 |
Restrictions/Controls & Freight Information | NSN 4820-00-882-9900
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-882-9900
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
