NSN 4820-00-830-2037 D6611279, D661-1279, 00-830-2037
Product Details | STOP DIAPHRAGM VALVE
4820-00-830-2037 A valve designed specifically so the diaphragm seals the flow stream from the valve operating mechanism. The flow is controlled by the lifting of the diaphragm from or compressing it against an integral seat. For packless diaphragm valves which utilize a diaphragm as packing and a disk to control the flow, see VALVE, Y.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: D6611279, D661-1279, 4820-00-830-2037, 00-830-2037, 4820008302037, 008302037
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 SEP 1967 | 00-830-2037 | 13619 ( VALVE, DIAPHRAGM, STOP ) |
Drawings & Photos | NSN 4820-00-830-2037
Cross Reference | NSN 4820-00-830-2037
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| D661-1279 | 96101 | GAS EQUIPMENT ENGINEERING CORPORATION, THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-830-2037
Technical Data | NSN 4820-00-830-2037
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| STYLE DESIGNATOR | A1 STRAIGHT THRU |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | BUTT WELD PIPE ALL ENDS |

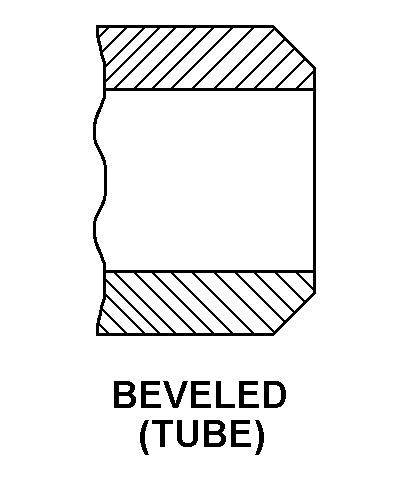

| CONNECTION STYLE | G72A BEVELED ALL ENDS |
| NOMINAL PIPE SIZE ACCOMMODATED | 0.500 INCHES ALL ENDS |
| MOUNTING FACILITY | THREADED FASTENER |
| SPECIAL FEATURES | CLEANED AND PACKAGED PER MIL-P-52211/CE/ |
Restrictions/Controls & Freight Information | NSN 4820-00-830-2037
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
