Product Details | FLUID PRESSURE REGULATING VALVE

4820-00-828-3186 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered

Part Alternates: 12240, 12-240, 4820-00-828-3186, 00-828-3186, 4820008283186, 008283186

Valves | Valves, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
48 01 JAN 1962 00-828-3186

Drawings & Photos | NSN 4820-00-828-3186


Cross Reference | NSN 4820-00-828-3186

Part Number Cage Code Manufacturer
12-240 96355 MATHESON CO DIV OF G D SEARLE MEDICAL PRODUCTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4820-00-828-3186

Technical Data | NSN 4820-00-828-3186

Characteristic Specifications
BODY MATERIAL ALUMINUM ALLOY
SEAT MATERIAL STEEL, CORROSION RESISTING
FLOW CONTROL DEVICE DISK, FLAT, TOP AND BOTTOM GUIDED
FLOW CONTROL DEVICE MATERIAL NONMETALLIC
OUTSIDE SURFACE TREATMENT ANY ACCEPTABLE
END CONNECTION QUANTITY 2
FIRST END CONNECTION TYPE THREADED EXTERNAL PIPE
FIRST END STYLE DESIGNATOR D6 PLAIN
FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR 1/4-18 NPT
FIRST END THREAD DIRECTION RIGHT-HAND
SECOND END RELATIONSHIP WITH FIRST END NOT IDENTICAL
SECOND END CONNECTION TYPE THREADED EXTERNAL GAS CYLINDER

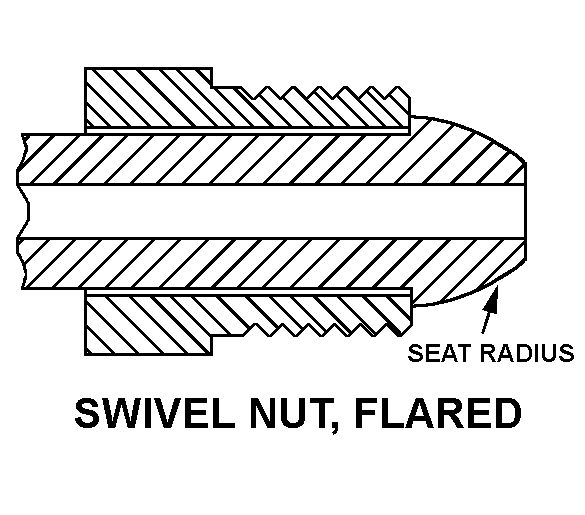

SECOND END STYLE DESIGNATOR D11 SWIVEL NUT, FLARED
SECOND END THREAD SIZE AND SERIES/TYPE DESIGNATOR 3/8-18 NGT
SECOND END THREAD PITCH DIAMETERS ANY ACCEPTABLE
SECOND END THREAD DIRECTION RIGHT-HAND
BODY STYLE A12 ANGLE
MEDIA FOR WHICH DESIGNED AMMONIA, GASEOUS AND AMMONIA, LIQUID
RENEWABLE SEAT RING TYPE PRESSED-IN
REGULATION TYPE AUTOMATIC SINGLE STAGE
VALVE STEM DESIGN SINGLE SEAT
VALVE LOADING METHOD SPRING
MAXIMUM INLET PRESSURE RATING 114.0 POUNDS PER SQUARE INCH
OUTLET PRESSURE RANGE 5.0 TO 80.0 POUNDS PER SQUARE INCH
OUTLET PRESSURE ACCURACY RATING NOT RATED
FILTER INCLUDED
FURNISHED ITEMS NEEDLE VALVE AND OUTLET PRESSURE GAGE
(NON-CORE DATA) DIAL OUTSIDE DIAMETER 2.500 INCHES
(NON-CORE DATA) SCALE UNIT OF MEASURE INSCRIPTION POUNDS PER SQUARE INCH
(NON-CORE DATA) DIAL RANGE 0.0 TO 100.0
SPECIAL FEATURES 5 CFM,MAX FLOW CAPACITY AT MAX RATED INLET ANDOUTLET PRESSURE
