NSN 4820-00-827-1007 CD4999850, CD-49998-50, SS8452110230ASSYRE14IN
Product Details | CHECK VALVE
4820-00-827-1007 A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design.
Part Alternates: CD4999850, CD-49998-50, SS8452110230ASSYRE14IN, SS845-2110230ASSYRE1-4IN, 2620902X8ASSYRE14IN, 2620-902X8ASSYRE1-4IN, 2620902X8ASSYRE14INSS, 2620-902X8ASSYRE1-4INSS, 4820-00-827-1007, 00-827-1007, 4820008271007, 008271007
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 30 AUG 1967 | 00-827-1007 | 05487 ( VALVE, CHECK ) |
Drawings & Photos | NSN 4820-00-827-1007
Cross Reference | NSN 4820-00-827-1007
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2620-902X8ASSYRE1-4IN | 63686 | THE WALWORTH COMPANY |
| 2620-902X8ASSYRE1-4IN | 96169 | ELECTRIC BOAT CORPORATION |
| 2620-902X8ASSYRE1-4INSS | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| CD-49998-50 | 63686 | THE WALWORTH COMPANY |
| SS845-2110230ASSYRE1-4IN | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-827-1007
Related Products | NSN 4820-00-827-1007
Technical Data | NSN 4820-00-827-1007
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BODY RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR FLOW CONTROL DEVICE |
| STYLE DESIGNATOR | E1 STRAIGHT THRU |
| FLOW CONTROL DEVICE | DISK |
| MEDIA FOR WHICH DESIGNED | WATER-OIL-GAS SINGLE RESPONSE |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | UNTHREADED INTERNAL PIPE 1ST END |

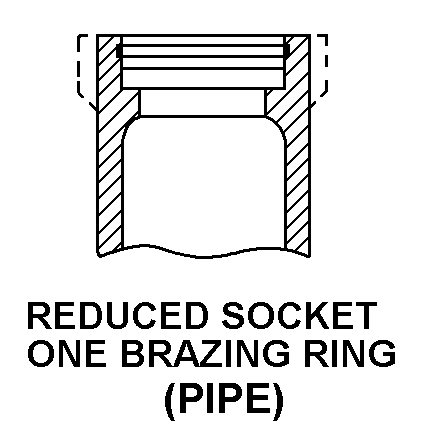

| CONNECTION STYLE | B24B REDUCED SOCKET W/ONE BRAZING RING 1ST END |
| NOMINAL PIPE SIZE ACCOMMODATED | 0.250 INCHES 1ST END |
| MOUNTING POSITION | HORIZONTAL |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | QUALITY CONTROLLED IN ACCORDANCE WITH NAVSHIPS 0948-045-7010 MATERIAL IDENTIFICATION AND CONTROL INSTRUCTION FOR LEVEL 1/SUB-SAFE ITEMS |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | SS845-2110230ASSYRE1-4IN |
Restrictions/Controls & Freight Information | NSN 4820-00-827-1007
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-827-1007
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3H | NAVICP MECH managed Field Level Repairables Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | SS | An item is support of the SUBSAFE program that meets all the requirements for L1 coding. In addition, the installation of this item in critical (SUBSAFE) systems requires that the vital attributes of the item be pedigreed further by 100\% nondestructive tests. These tests are primary radiography, but may include magnetic particle, dye penetrant, and/or ultrassonic testing. As of 8/1/00, NSNs with SMIC SS were reidentified to SMIC L1. Material with SMIC SS is still in the supply system. |
| Source of Supply | N35 | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
