NSN 4820-00-809-8493 70543A, 00-809-8493, 008098493
Product Details | FLUID PRESSURE REGULATING VALVE
4820-00-809-8493 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 70543A, 4820-00-809-8493, 00-809-8493, 4820008098493, 008098493
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1962 | 00-809-8493 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
Drawings & Photos | NSN 4820-00-809-8493
Cross Reference | NSN 4820-00-809-8493
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 70543A | 00742 | AIR PRODUCTS AND CHEMICALS, INC. DBA AIR PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-809-8493
Technical Data | NSN 4820-00-809-8493
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRASS |
| SEAT MATERIAL | BRASS |
| FLOW CONTROL DEVICE | DISK, CIRCULAR |
| FLOW CONTROL DEVICE MATERIAL | BRASS |
| END CONNECTION QUANTITY | 4 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | B11 PLAIN |
| FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 3/8-18 NPT |
| FIRST END THREAD DIRECTION | RIGHT-HAND |

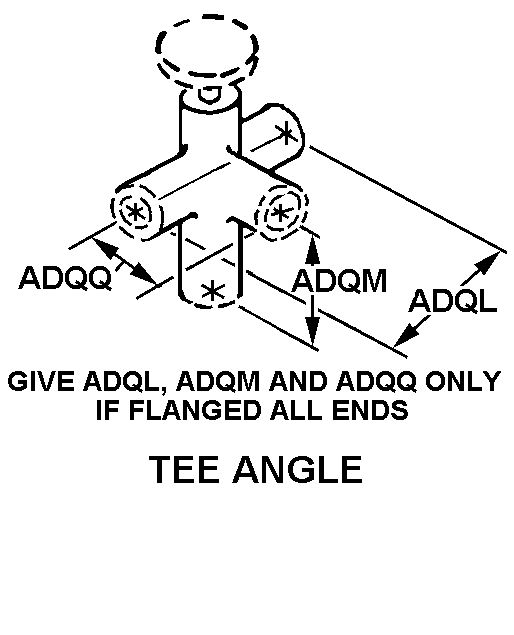

| BODY STYLE | A13 TEE ANGLE |
| MEDIA FOR WHICH DESIGNED | AIR |
| RENEWABLE SEAT RING TYPE | THREADED |
| REGULATION TYPE | AUTOMATIC SINGLE STAGE |
| VALVE LOADING METHOD | SPRING |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| MAXIMUM INLET PRESSURE RATING | 400.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE RANGE | 5.0 TO 300.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE ACCURACY RATING | NOT RATED |
| FILTER | NOT INCLUDED |
| SPECIAL FEATURES | 410 CUBIC FT PER HR MAX DISCHARGE CAPACITY AT LOWEST OUTLET PRESSURE |
| MANUFACTURERS CODE | 00742 |
| DESIGN CONTROL REFERENCE | 70543A |
Restrictions/Controls & Freight Information | NSN 4820-00-809-8493
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
