NSN 4820-00-540-2519 MS2888412, MS28884-12, MS28884A12
Product Details | CHECK VALVE
4820-00-540-2519 A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design.
Part Alternates: MS2888412, MS28884-12, MS28884A12, MS28884A-12, MILV7899, 1111517705, 1111-517705, 12C240, 58812D1, 588-12D1, 6956211, 695621-1, 4820-00-540-2519, 00-540-2519, 4820005402519, 005402519
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1961 | 00-540-2519 | 05487 ( VALVE, CHECK ) |

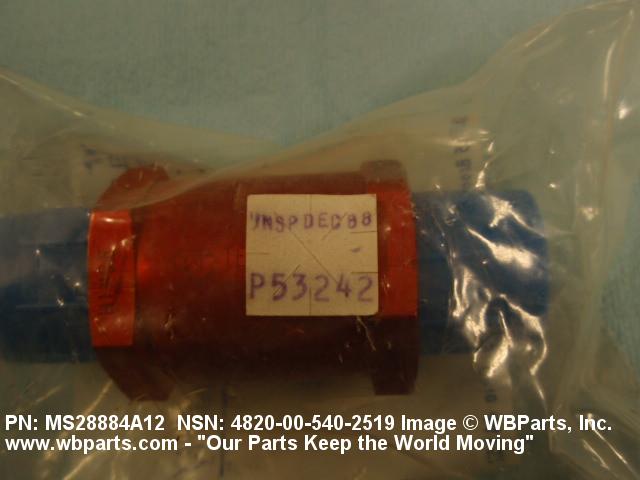

Drawings & Photos | NSN 4820-00-540-2519
Demand History | NSN 4820-00-540-2519
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-540-2519 | 2024-11-312 | 42 | DIBBS |
| MS28884A12 | 2024-09-263 | 2 | United States |
| 4820-00-540-2519 | 2024-06-176 | 45 | DIBBS |
| 4820-00-540-2519 | 2024-06-164 | 45 | DIBBS |
| MS28884A12 | 2024-03-85 | 100 | SA |
| 4820-00-540-2519 | 2023-08-240 | 74 | DIBBS |
| 4820-00-540-2519 | 2023-08-227 | 74 | DIBBS |
| MS28884A12 | 2023-06-167 | 3 | Taiwan |
| 4820-00-540-2519 | 2023-06-153 | 60 | DIBBS |
| MS28884A12 | 2023-05-149 | 10 | us |
| 4820-00-540-2519 | 2023-05-142 | 60 | DIBBS |
| 4820-00-540-2519 | 2023-02-33 | 45 | DIBBS |
| 4820-00-540-2519 | 2023-01-11 | 57 | DIBBS |
| 4820-00-540-2519 | 2022-09-254 | 103 | DIBBS |
| 4820-00-540-2519 | 2022-08-216 | 210 | DIBBS |
| 4820-00-540-2519 | 2022-06-180 | 106 | DIBBS |
| 4820-00-540-2519 | 2022-03-76 | 104 | DIBBS |
| 4820-00-540-2519 | 2022-03-61 | 106 | DIBBS |
| 4820-00-540-2519 | 2021-12-360 | 37 | DIBBS |
| 4820-00-540-2519 | 2021-09-266 | 69 | DIBBS |
| 4820-00-540-2519 | 2021-05-140 | 42 | DIBBS |
| 4820-00-540-2519 | 2020-12-349 | 1 | Malaysia |
| MS28884A12 | 2020-12-349 | 1 | Malaysia |
| MS28884A12 | 2020-12-342 | 1 | Malaysia |
| MS28884A12 | 2020-12-336 | 1 | Malaysia |
| 4820-00-540-2519 | 2020-10-282 | 120 | DIBBS |
| 4820-00-540-2519 | 2020-09-274 | 36 | DIBBS |
| MS28884A12 | 2020-04-93 | 1 | United States |
| 4820-00-540-2519 | 2020-01-16 | 2 | Malaysia |
| 4820-00-540-2519 | 2019-11-317 | 64 | DIBBS |
| 4820-00-540-2519 | 2018-11-312 | 101 | DIBBS |
| 4820-00-540-2519 | 2017-02-57 | 22 | DIBBS |
| 4820-00-540-2519 | 2017-01-04 | 66 | DIBBS |
| 4820-00-540-2519 | 2016-07-202 | 68 | DIBBS |
| 4820-00-540-2519 | 2014-11-310 | 92 | DIBBS |
| 4820-00-540-2519 | 2014-03-79 | 70 | DIBBS |
| 4820-00-540-2519 | 2013-12-336 | 53 | DIBBS |
| 4820-00-540-2519 | 2013-06-156 | 85 | DIBBS |
| 4820-00-540-2519 | 2013-02-32 | 118 | DIBBS |
| 4820-00-540-2519 | 2012-11-328 | 89 | DIBBS |
| MS2888412 | 2011-04-96 | 6 | CA |
| MS2888412 | 2009-12-362 | 6 | Canada |
| MS28884A12 | 2009-12-362 | 6 | Canada |
| MS2888412 | 2009-12-362 | 6 | Canada |
| 4820-00-540-2519 | 2009-01-20 | 248 | DIBBS |
Cross Reference | NSN 4820-00-540-2519
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1111-517705 | 0TR84 | UNITED VALVE COMPANY, DIV OF FEDERAL INDUSTRIES, INC |
| 1111-517705 | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| 1111-517705 | 92003 | PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS |
| 12C240 | 82829 | ALLEN AIRCRAFT PRODUCTS INC |
| 588-12D1 | 09990 | PARKER-HANNIFIN CORPORATION DBA HYDRAULIC VALVE DIV |
| 588-12D1 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 588-12D1 | 86768 | TELEDYNE INDUSTRIES INC TELEDYNE FLUID SYSTEMS REPUBLIC |
| 695621-1 | 36659 | LOCKHEED MARTIN CORP LOCKHEED MARTIN AERONAUTICAL SYSTEMS |
| 695621-1 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| MILV7899 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS28884-12 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS28884A-12 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-540-2519
Related Products | NSN 4820-00-540-2519
Technical Data | NSN 4820-00-540-2519
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY BODY STEEL CORROSION RESISTING FLOW CONTROL DEVICE TUNGSTEN CARBIDE SEAT |
| SURFACE TREATMENT | ANODIZE |
| STYLE DESIGNATOR | A3 STRAIGHT THRU |
| FLOW CONTROL DEVICE | DISK |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 300.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 160.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B42 FLARED ALL ENDS |
| SEAT ANGLE | 37.0 DEGREES ALL ENDS |
| THREAD SERIES DESIGNATOR | UN ALL ENDS |
| NOMINAL THREAD SIZE | 1.500 INCHES ALL ENDS |
| THREAD QUANTITY PER INCH | 12 ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| MOUNTING POSITION | HORIZONTAL |
| DISK LOADING METHOD | SPRING |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILV7899 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS28884A-12 |
Restrictions/Controls & Freight Information | NSN 4820-00-540-2519
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-540-2519
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
