NSN 4820-00-535-6483 MS288892, MS28889-2, M61642

Product Details | PNEUMATIC TANK VALVE

4820-00-535-6483 A valve, designed for attachment to pressure tanks and/or mechanical equipment for the purpose of permitting an increase, decrease, and the gaging of pressure (similar to tire valves) within a confining chamber carrying compressed air, gases or oil.

Part Alternates: MS288892, MS28889-2, M61642, M6164-2, AIR91718, GHN102842, GHN10284-2 , MILPRF6164, MIL-PRF-6164, Z00.N7886260892TBM, Z00N7886260892TBM, 1355-04-013, 0211267, 10109260, 48205356483, 4820-535-6483 , 798A, 8173603 , 963.02.24.101, 9630224101, 4820-00-535-6483, 00-535-6483, 4820005356483, 005356483, 135504013

Valves | Valves, Nonpowered

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
48	01 JAN 1961	00-535-6483	06509 ( VALVE, PNEUMATIC TANK )

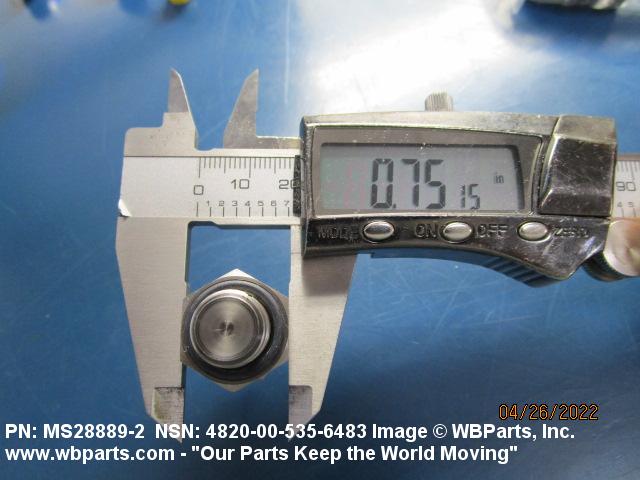

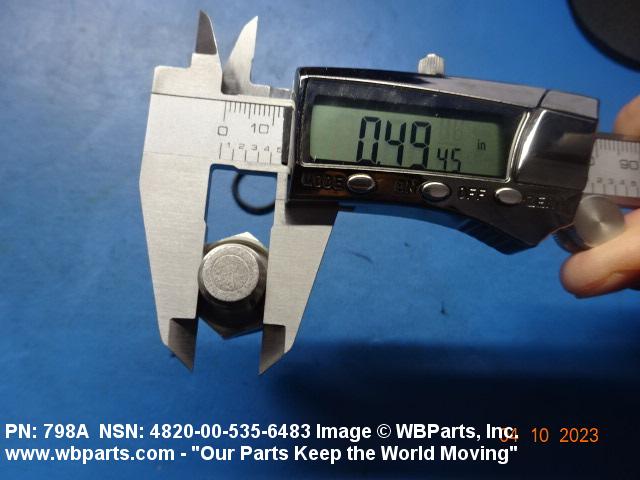

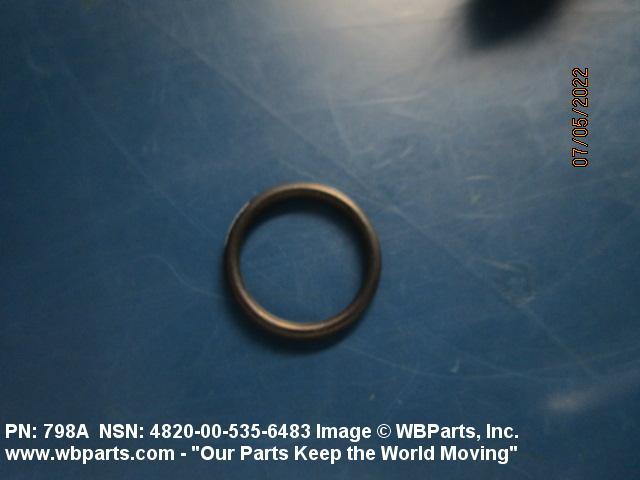

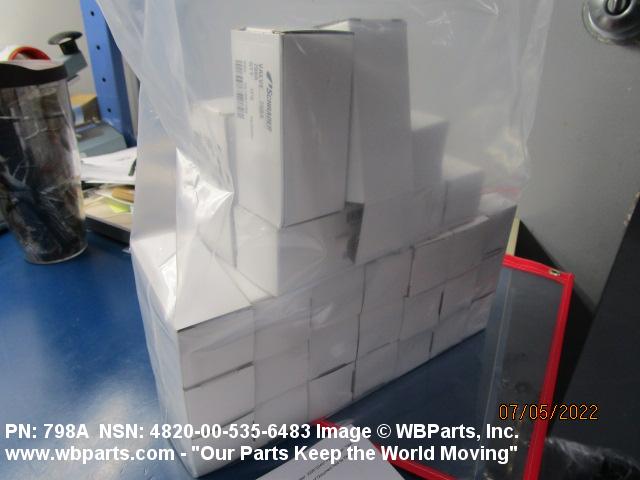

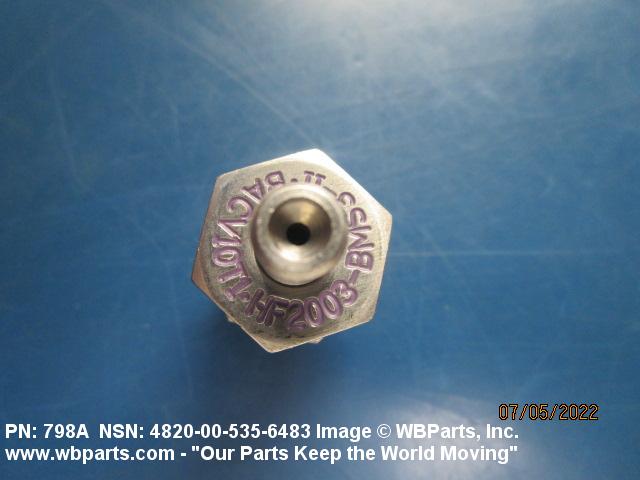

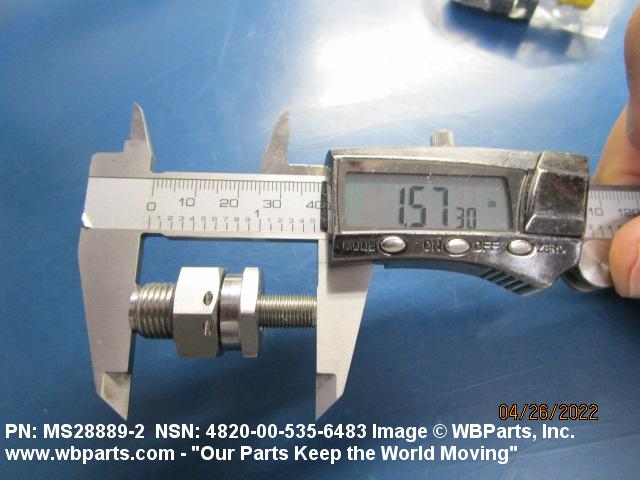

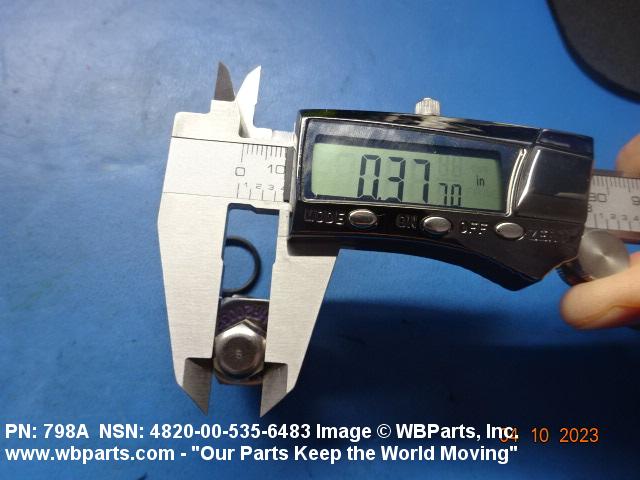

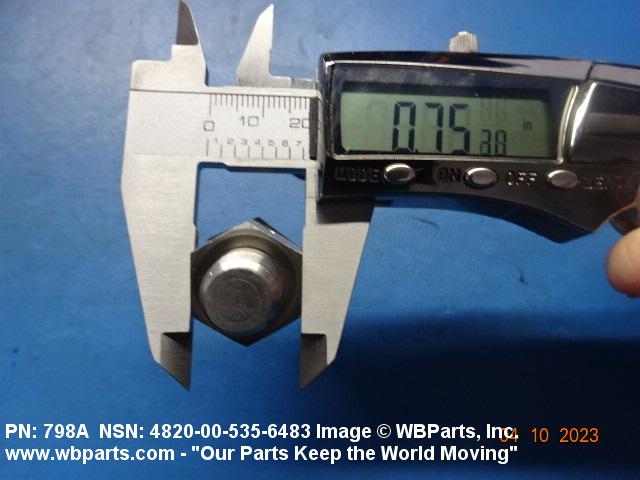

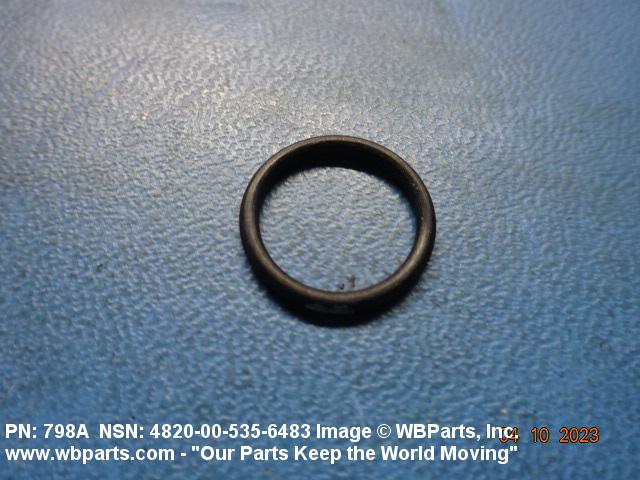

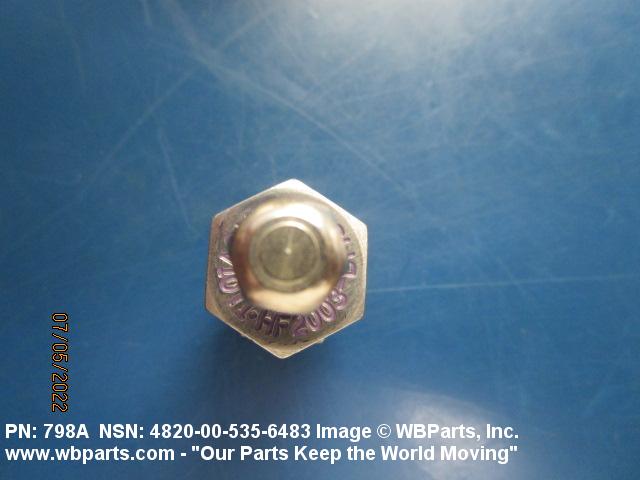

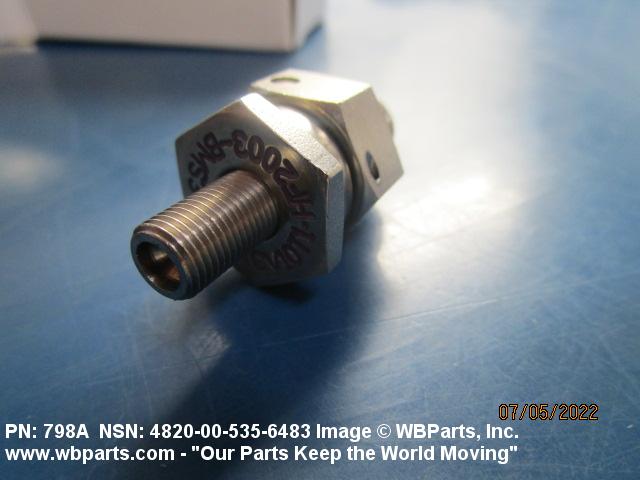

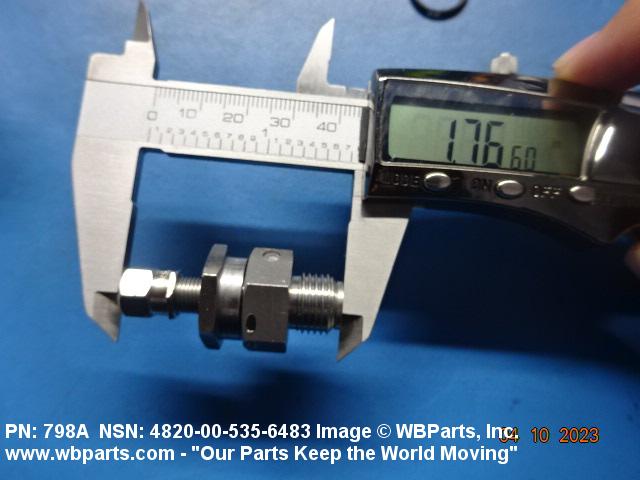

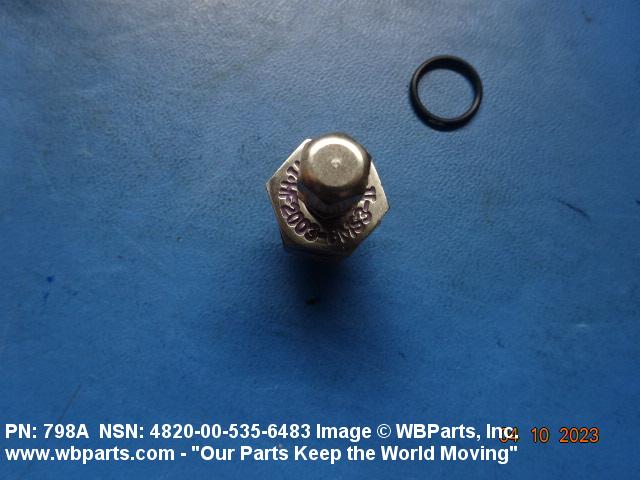

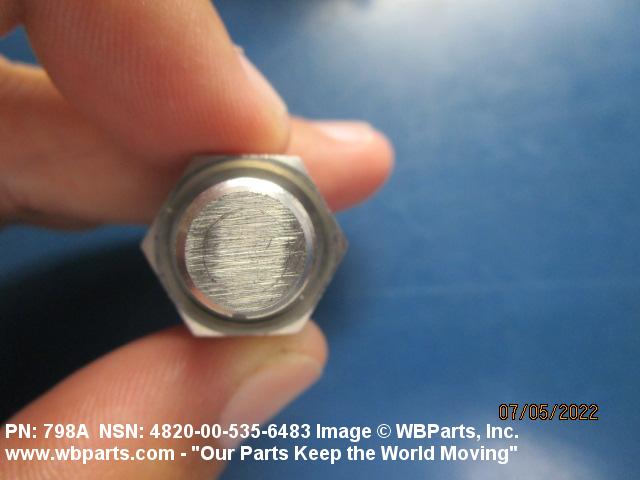

Drawings & Photos | NSN 4820-00-535-6483

Part Number	Request Date	QTY	Origin
MS288892	2024-10-297	2	US
MS288892	2024-10-284	4	Japan
4820-00-535-6483	2024-09-262	4	UK
M61642	2024-02-38	24	US
4820-00-535-6483	2023-12-361	4	United States
4820-00-535-6483	2023-12-353	2	United States
4820-00-535-6483	2023-08-230	30	ES
4820-00-535-6483	2023-07-192	20	US
4820-00-535-6483	2023-05-144	10	ID
798A	2023-03-82	20	United States
MS288892	2022-11-333	11	Czech Republic
MS288892	2022-09-255	9	Czech Republic
4820-00-535-6483	2022-08-230	50	PK
798A	2022-06-181	30	United States
4820-00-535-6483	2022-03-76	11	US
4820-00-535-6483	2022-02-49	4	US
MS288892	2022-02-41	2	Czech Republic
MS288892	2021-09-244	16	Czech Republic
MS288892	2021-08-239	40	Czech Republic
4820-00-535-6483	2021-08-231	28	Malaysia
4820-00-535-6483	2021-05-126	100	MY
MS288892	2021-03-78	10	Malaysia
4820-00-535-6483	2021-03-71	10	United States
4820-00-535-6483	2021-01-18	700	Singapore
4820-00-535-6483	2021-01-18	700	Singapore
MS288892	2020-11-316	1	United States
MS288892	2020-08-230	10	MY
4820-00-535-6483	2020-06-155	400	US
MS288892	2020-06-155	400	US
4820-00-535-6483	2020-06-153	2	GR
MS288892	2020-06-153	2	Greece
4820-00-535-6483	2020-01-28	20	DE
MS288892	2019-08-238	11	China
4820-00-535-6483	2019-08-221	4	US
4820-00-535-6483	2019-08-220	4	US
4820-00-535-6483	2019-08-219	20	TR
4820-00-535-6483	2018-11-313	35	KR
4820-00-535-6483	2018-11-311	30	MANUAL
4820-00-535-6483	2018-09-262	25000	DIBBS
4820-00-535-6483	2018-09-255	1	DIBBS-RFPs
4820-00-535-6483	2018-09-254	30000	DIBBS
M61642	2018-07-205	30	United States
M61642	2018-07-184	6	United States
MS288892	2018-06-179	30	Philippines
MS288892	2018-06-174	50	US
MS288892	2018-06-174	100	US
4820-00-535-6483	2018-04-102	40	US
4820-00-535-6483	2018-03-88	147	DIBBS
4820-00-535-6483	2018-03-85	147	DIBBS
4820-00-535-6483	2018-03-79	147	DIBBS
4820-00-535-6483	2018-02-54	14	Thailand
4820-00-535-6483	2018-02-53	15	TH
4820-00-535-6483	2018-02-46	50	United States
4820-00-535-6483	2018-01-30	20	Pakistan
4820-00-535-6483	2018-01-11	10	VN
M61642	2017-12-354	4	United States
4820-00-535-6483	2017-11-322	100	IN
4820-00-535-6483	2017-09-257	1	Malaysia
4820-00-535-6483	2017-09-256	1	Malaysia
4820-00-535-6483	2017-08-230	10	Malaysia
4820-00-535-6483	2017-08-220	2	Malaysia
4820-00-535-6483	2017-08-215	2	Malaysia
4820-00-535-6483	2017-06-178	925	UK
MS288892	2017-06-171	2	United States
MS288892	2017-05-130	20	US
MS288892	2017-03-75	5	Malaysia
4820-00-535-6483	2017-02-53	15	MANUAL
MS28889-2	2017-02-53	15
4820-00-535-6483	2016-05-145	6	MANUAL
MS28889-2	2016-05-145	6	Spain
MS288892	2016-05-124	1	United States
4820-00-535-6483	2015-12-337	18	Pakistan
4820-00-535-6483	2015-11-324	3	Canada
MS288892	2015-11-314	8	US
MS288892	2015-11-311	106	Malaysia
4820-00-535-6483	2015-11-307	106	Malaysia
MS288892	2015-06-161	1	IN
MS288892	2015-05-142	95	US
4820-00-535-6483	2015-05-137	8101	DIBBS
4820-00-535-6483	2015-05-133	14	United States
MS288892	2015-04-106	2	United States
MS288892	2015-03-89	100	Canada
MS28889-2	2015-03-76	10	TH
MS28889-2	2015-03-76	6	TH
MS28889-2	2015-03-76	6	TH
4820-00-535-6483	2015-02-49	1	US
4820-00-535-6483	2014-09-247	11110	DIBBS
4820-00-535-6483	2014-08-219	18336	DIBBS
MS288892	2014-07-189	100	Canada
MS288892	2014-06-174	1	United States
4820-00-535-6483	2014-04-115	71	US
4820-00-535-6483	2014-04-115	112	US
4820-00-535-6483	2014-04-115	9172	US
4820-00-535-6483	2014-04-115	14957	US
4820-00-535-6483	2014-04-107	24312	DIBBS
MS288892	2014-04-101	10	United States
4820-00-535-6483	2014-04-94	200	US
4820-00-535-6483	2014-03-78	200	US
MS288892	2014-03-78	1	SA
4820-00-535-6483	2013-11-323	3295	DIBBS
4820-00-535-6483	2013-11-318	9220	DIBBS
4820-00-535-6483	2013-10-282	10	US
4820-00-535-6483	2013-10-275	3840	DIBBS
4820-00-535-6483	2013-06-157	6072	DIBBS
MS288892	2013-06-156	10	US
MS28889-2	2013-05-134	1	CZ
MS288892	2013-04-112	7	AU
M61642	2013-04-92	10	United States
MS288892	2013-02-58	50	DE
4820-00-535-6483	2013-02-51	65	MANUAL
MS28889-2	2013-02-51	65	AE
4820-00-535-6483	2013-01-31	7838	DIBBS
MS28889-2	2013-01-04	1	Indonesia
M61642	2012-12-342	10	United States
4820-00-535-6483	2012-11-320	4673	DIBBS
4820-00-535-6483	2012-10-278	1	SG
M61642	2012-09-251	125	US
MS288892	2012-09-250	125	Canada
4820-00-535-6483	2012-07-206	7264	DIBBS
MS288892	2012-07-200	55	US
MS28889-2	2012-07-187	31	KR
MS288892	2012-06-181	250	United States
4820-00-535-6483	2012-05-129	6	MANUAL
MS28889-2	2012-05-129	6	United States
MS288892	2012-04-121	12	United States
4820-00-535-6483	2012-03-80	200	United States
4820-00-535-6483	2012-03-75	5	US
MS28889-2	2012-02-40	5	TR
MS288892	2011-12-335	500	us
4820-00-535-6483	2011-11-306	2	US
4820-00-535-6483	2011-10-277	110	DE
4820-00-535-6483	2011-09-256	15973	DIBBS
4820-00-535-6483	2011-09-248	12	ID
4820-00-535-6483	2011-07-202	5	Italy
4820-00-535-6483	2011-07-193	20281	DIBBS
4820-00-535-6483	2011-05-151	130	PK
4820-00-535-6483	2011-05-151	130	PK
4820-00-535-6483	2011-05-146	7310	DIBBS
4820-00-535-6483	2011-05-146	9612	DIBBS
4820-00-535-6483	2011-03-76	10	US
MS288892	2011-02-35	100	TR
MS288892	2010-11-327	4	US
4820-00-535-6483	2010-10-292	10816	DIBBS
4820-00-535-6483	2010-09-264	4	United States
135504013	2010-08-221	48	US
4820-00-535-6483	2010-07-187	1	AR
4820-00-535-6483	2010-05-146	61	DIBBS
4820-00-535-6483	2010-04-105	13731	DIBBS
4820-00-535-6483	2010-03-89	13730	DIBBS
4820-00-535-6483	2010-02-41	1	Malaysia
MS288892	2009-11-306	2	India
MS288892	2009-08-233	3	US
4820-00-535-6483	2009-07-194	11443	DIBBS
MS288892	2009-07-187	4	US
4820-00-535-6483	2009-06-173	1	US
4820-00-535-6483	2009-05-140	4	US
4820-00-535-6483	2009-05-134	1	Colombia
4820-00-535-6483	2009-05-125	13169	DIBBS
M61642	2009-03-79	4	United States
MS288892	2009-02-40	6	United Arab Emirates
4820-00-535-6483	2008-11-311	10	IT
MS288892	2008-10-303	100	US
4820-00-535-6483	2008-07-211	1	US
4820-00-535-6483	2008-07-204	1	Brazil
4820-00-535-6483	2008-03-80	1	US
4820-00-535-6483	2008-03-65	3	Taiwan
MS288892	2007-11-310	200	United States
MS288892	2007-06-172	1	Malaysia
MS288892	2006-05-139	10	GL
MS288892	2006-04-96	38	us

Cross Reference | NSN 4820-00-535-6483

Part Number	Cage Code	Manufacturer
0211267	001JK	EMBRAER S/A
1355-04-013	A0199	OTO MELARA SPA
4820-535-6483	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
4820005356483	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
798A	27783	SCHRADER-BRIDGEPORT INTERNATIONAL INC
798A	53477	SCOVILL INC SCHRADER BELLOWS DIV
963.02.24.101	S4080	PILATUS AIRCRAFT LTD
AIR91718	K0667	APPH LTD
M6164-2	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-PRF-6164	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS28889-2	13899	HYDRO FITTING MANUFACTURING CORPORATION
MS28889-2	1WL60	LOCKHEED MARTIN SERVICES, INC.
MS28889-2	21439	ENGINEERED ARRESTING SYSTEMS CORPORATION
Z00.N7886260892TBM	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4820-00-535-6483

Compare

Related Products | NSN 4820-00-535-6483

4820-00-535-8616, 4820-00-535-9452, 4820-00-535-9741, 4820-00-535-9743, 4820-00-536-0336

Technical Data | NSN 4820-00-535-6483

Characteristic	Specifications
BODY STYLE	D4 STRAIGHT THRU
BODY MATERIAL	STEEL,CRES,QQ-S-764,COMP. 303SE
OUTSIDE SURFACE TREATMENT	PASSIVATED AND DICHROMATE TREATED
SEAT MATERIAL	STEEL,CRES,QQ-S-764,COMP. 303SE
FLOW CONTROL DEVICE	STEM AND INTEGRAL DISK
FLOW CONTROL DEVICE MATERIAL	STEEL,CRES,QQ-S-764,COMP. 303SE
STEM MATERIAL	STEEL,CRES,QQ-S-764,COMP. 303SE
END CONNECTION QUANTITY	2
FIRST END CONNECTION TYPE	THREADED EXTERNAL BOSS
FIRST END STYLE DESIGNATOR	J10 EXTERNAL SEAT FOR GASKET SEAL
FIRST END THREAD CLASS	3A
FIRST END THREAD DIRECTION	RIGHT-HAND
SECOND END RELATIONSHIP WITH FIRST END	NOT IDENTICAL
SECOND END CONNECTION TYPE	THREADED EXTERNAL TUBE

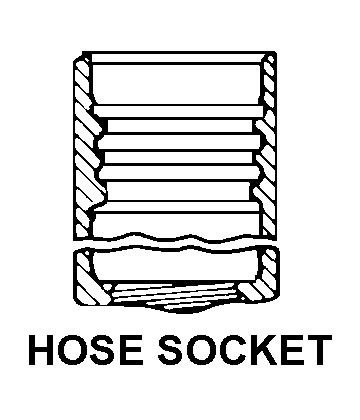

SECOND END STYLE DESIGNATOR	H10 HOSE SOCKET
SECOND END OUTSIDE DIAMETER TUBE ACCOMMODATED	0.125 INCHES NOMINAL
SECOND END THREAD CLASS	3A
SECOND END THREAD DIRECTION	RIGHT-HAND
MEDIA FOR WHICH DESIGNED	AIR OR GAS
TEMP RATING	NOT RATED
CORE ENVIRONMENTAL PROTECTION	CORROSION
COMMERCIAL CORE LENGTH DESIGNATOR	STANDARD
SPRING MATERIAL	STEEL, QQ-S-763, CLASS 303
COMMERCIAL SPRING TENSION RATING	NOT RATED
FURNISHED ITEMS	CAP
SPECIAL FEATURES	2 LOCKWIRE HOLES AND 5000.0 PSI OPERATING PRESSURE
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-6164
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M6164-2

Restrictions/Controls & Freight Information | NSN 4820-00-535-6483

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	658	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable
NMF Description	127220	PRESSURE REG/RED/RELIEF VALVES NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	594	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4820-00-535-6483

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	G	Artillery
Weapons Systems/End Item or Homogeneous Group	GG	Howitzer, 155-mm, M198
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
