NSN 4820-00-518-1172 B3050, 559013, 5590-13
Product Details | RESTRICTOR CHECK VALVE
4820-00-518-1172 A valve having an orifice in the poppet, disk, or the like, to permit restricted fluid flow when the valve is seated. It does not have a stem or provisions for pressure adjustments, and is similar to a VALVE, CHECK with the exception of the orifice which permits fluid flow in more than one direction.
Part Alternates: B3050, 559013, 5590-13, 5590133, 5590-133, 68690101133, 68-690101-133, 7M844, 7M8445, 7M844-5, 4820-00-518-1172, 00-518-1172, 4820005181172, 005181172
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 13 AUG 1974 | 00-518-1172 | 20520 ( VALVE, RESTRICTOR CHECK ) |

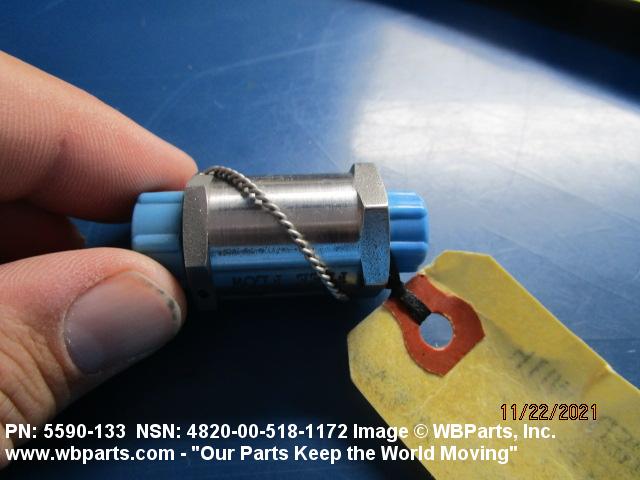

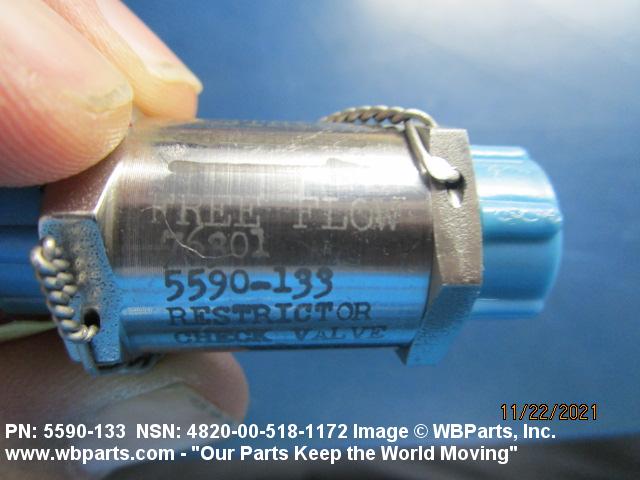

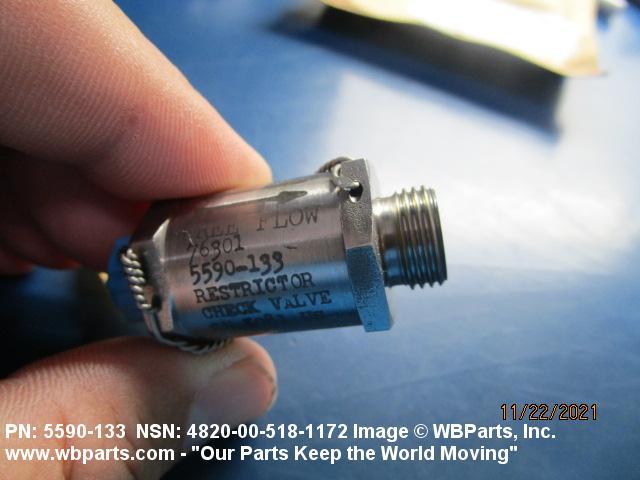

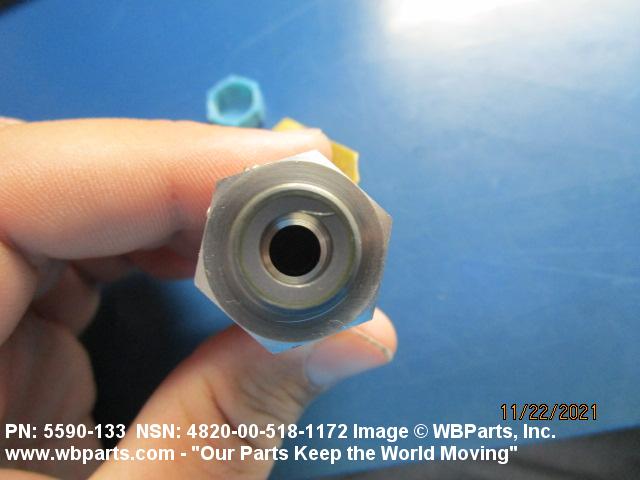

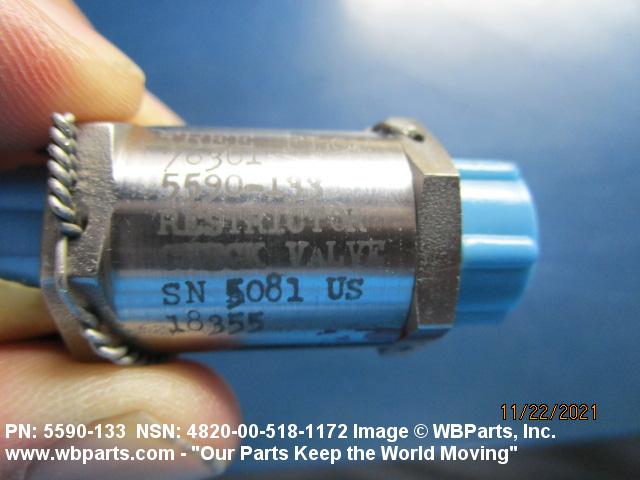

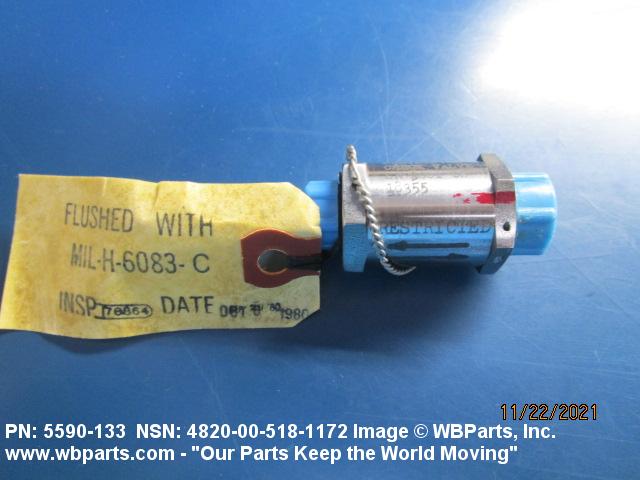

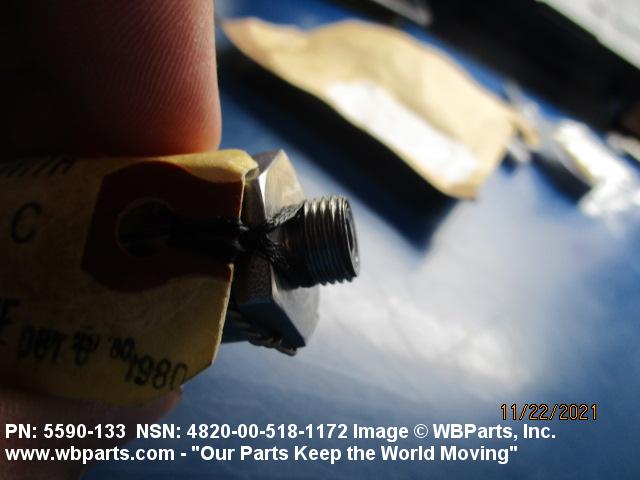

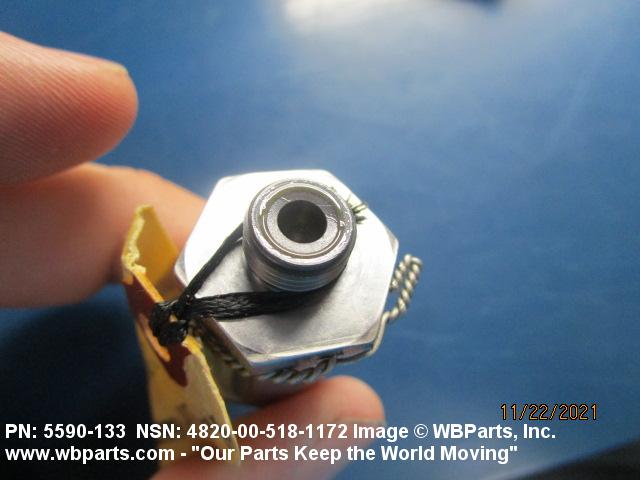

Drawings & Photos | NSN 4820-00-518-1172
Demand History | NSN 4820-00-518-1172
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7M844-5 | 2022-03-60 | 9 | DIBBS |
| B3050 | 2022-03-60 | 9 | DIBBS |
| 7M844-5 | 2021-12-341 | 5 | DIBBS |
| B3050 | 2021-12-341 | 5 | DIBBS |
| 7M844-5 | 2021-11-319 | 5 | DIBBS |
| B3050 | 2021-11-319 | 5 | DIBBS |
| 4820-00-518-1172 | 2021-11-316 | 1 | United States |
| 7M844-5 | 2021-07-197 | 4 | DIBBS |
| B3050 | 2021-07-197 | 4 | DIBBS |
| 7M844-5 | 2021-07-186 | 4 | DIBBS |
| B3050 | 2021-07-186 | 4 | DIBBS |
| 7M844-5 | 2020-12-342 | 4 | DIBBS |
| B3050 | 2020-12-342 | 4 | DIBBS |
| 7M844-5 | 2020-11-329 | 4 | DIBBS |
| B3050 | 2020-11-329 | 4 | DIBBS |
| 7M844-5 | 2019-10-301 | 6 | DIBBS |
| B3050 | 2019-10-301 | 6 | DIBBS |
| 7M844-5 | 2019-10-290 | 6 | DIBBS |
| B3050 | 2019-10-290 | 6 | DIBBS |
Cross Reference | NSN 4820-00-518-1172
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5590-13 | 00286 | CONAIR INC |
| 5590-133 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 68-690101-133 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 7M844 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 7M844-5 | 50276 | PREECE INC DECCA VALVES DIV |
| 7M844-5 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 7M844-5 | 99240 | CRISSAIR, INC. |
| B3050 | 50276 | PREECE INC DECCA VALVES DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-518-1172
Related Products | NSN 4820-00-518-1172
Technical Data | NSN 4820-00-518-1172
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 BODY STEEL COMP 440C FLOW CONTROL DEVICE STEEL COMP 630 SEAT |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE BODY QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE FLOW CONTROL DEVICE AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE SEAT |
| SURFACE TREATMENT | PASSIVATE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC ALL TREATMENT RESPONSES |
| STYLE DESIGNATOR | A3 STRAIGHT THRU |
| FLOW CONTROL DEVICE | POPPET |
| MEDIA FOR WHICH DESIGNED | OIL, HYDRAULIC SINGLE RESPONSE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B46A PLAIN ALL ENDS |
| THREAD SERIES DESIGNATOR | UN 1ST END UNS 2ND END |
| NOMINAL THREAD SIZE | 0.562 INCHES 1ST END 0.438 INCHES 2ND END |
| THREAD QUANTITY PER INCH | 20 1ST END 24 2ND END |
| THREAD CLASS | 2A ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| MOUNTING POSITION | HORIZONTAL OR VERTICAL |
| DISK LOADING METHOD | SPRING |
| FURNISHED ITEMS AND QUANTITY | 1 FILTER SCREEN |
| (NON-CORE DATA) APERTURE DIAMETER | 0.045 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4820-00-518-1172
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-518-1172
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
