NSN 4820-00-516-8438 A84-1, AN62041, AN6204-1
Product Details | HYDRAULIC SYSTEM BLEEDER VALVE
4820-00-516-8438 A metallic, threaded, screw-shaped item used in hydraulic brake cylinders, hydraulic power units, missile launching hydraulic systems, and the like, for the purpose of providing a means of releasing air form and/or flushing a hydraulic system. It may be furnished with or without a dust cap. Excludes spring loaded or automatic type air pressure relief valves, and BOLT, FLUID PASSAGE.
Part Alternates: A84-1, AN62041, AN6204-1, AN62041A, AN6204-1A, F300 0T 015 4415, F3000T0154415, FC6446, 1574584, 15745-84, 203867, 226445, 2-2644-5, 2933, 3X84211, 8176638, 9594781624, A841, 4820-00-516-8438, 00-516-8438, 4840005168438, 4820005168438, 005168438
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-516-8438 | 37648 ( VALVE, BLEEDER, HYDRAULIC SYSTEM ) |

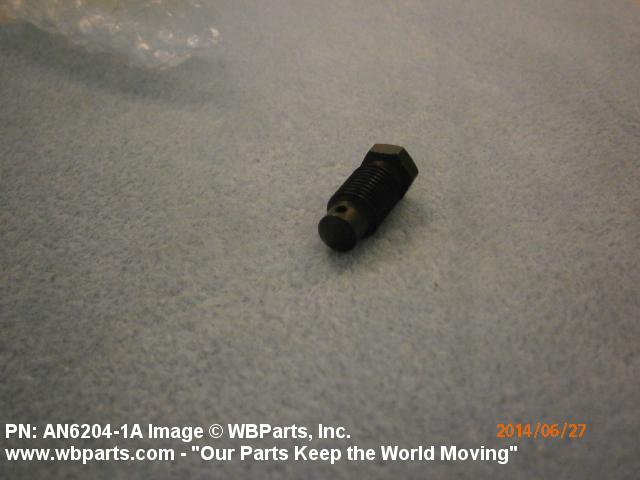

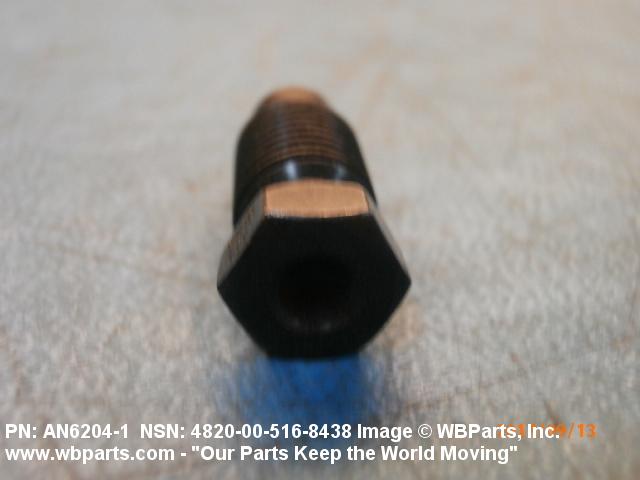

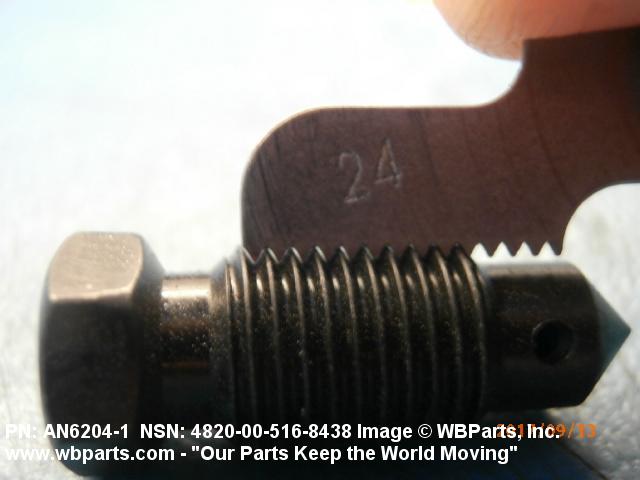

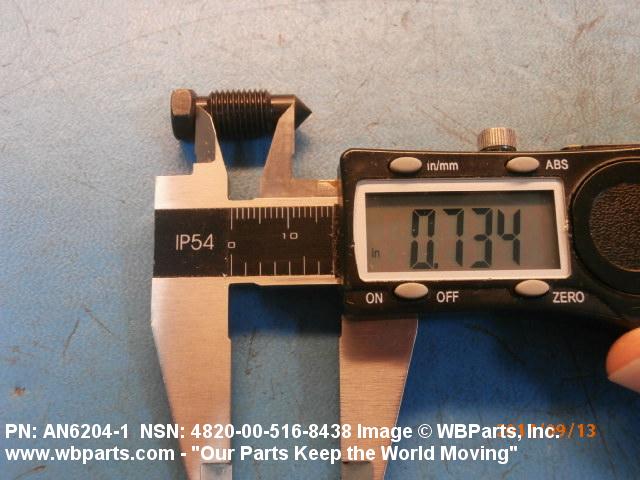

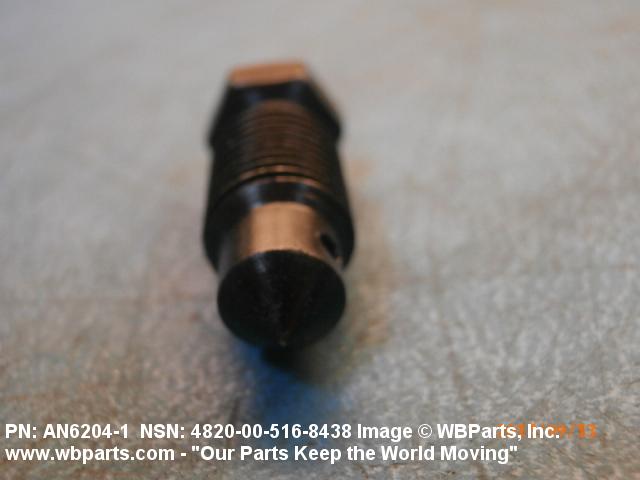

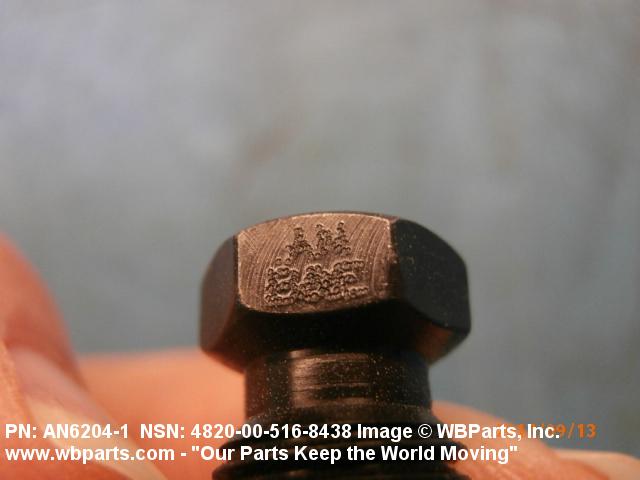

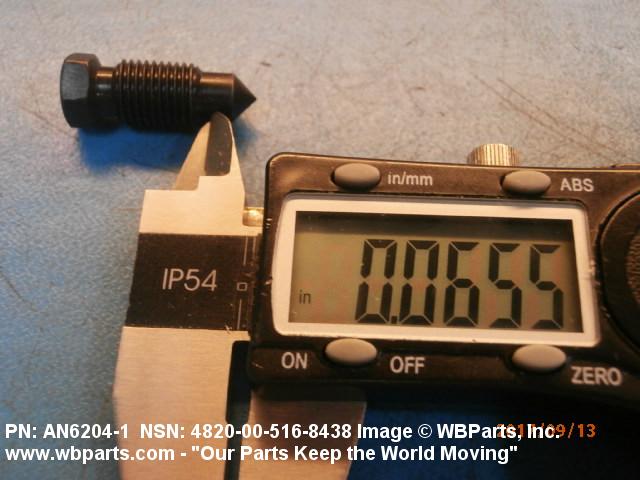

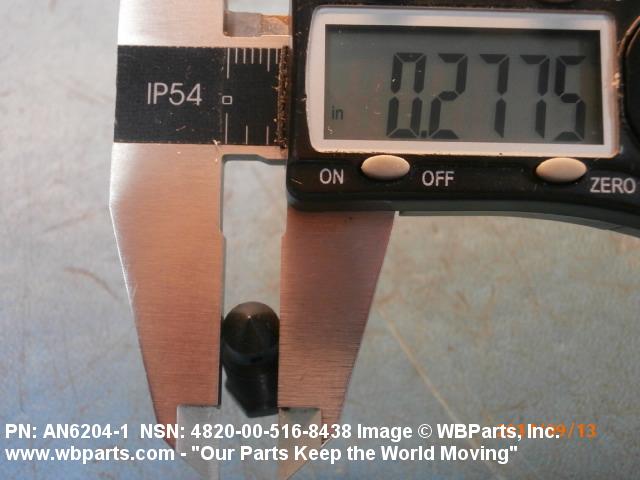

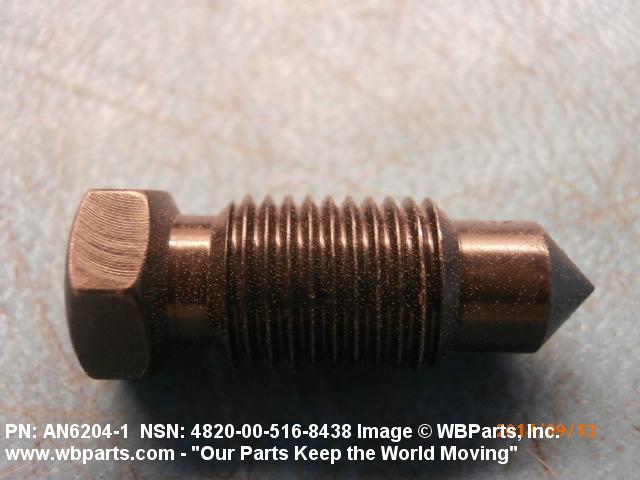

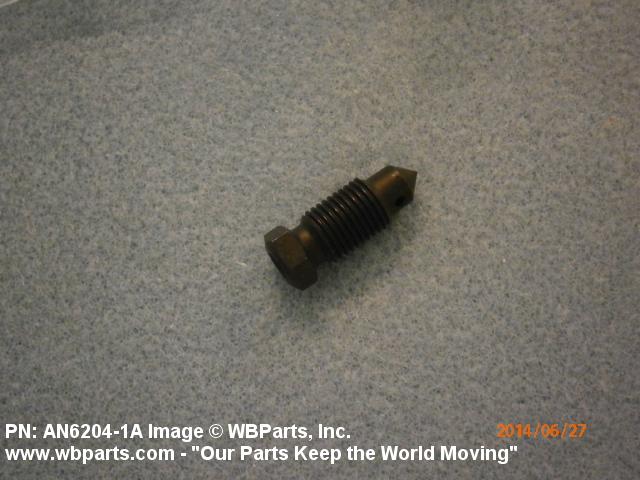

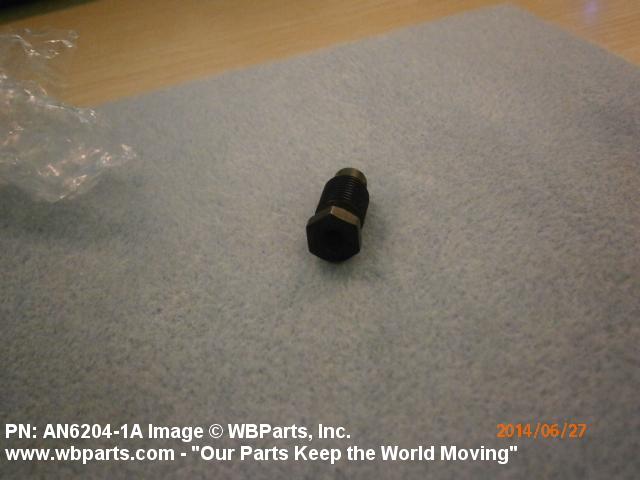

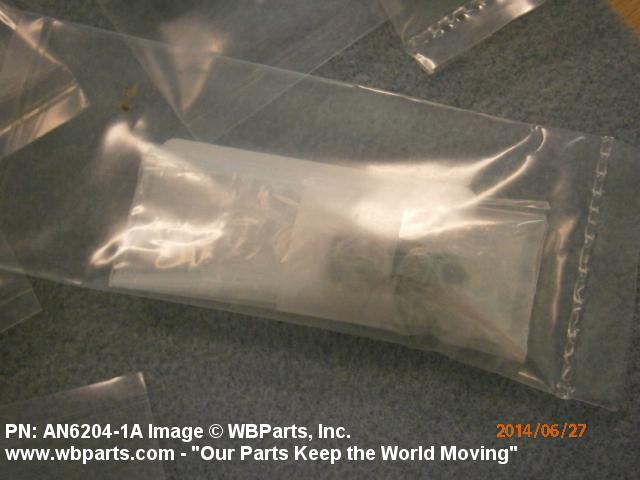

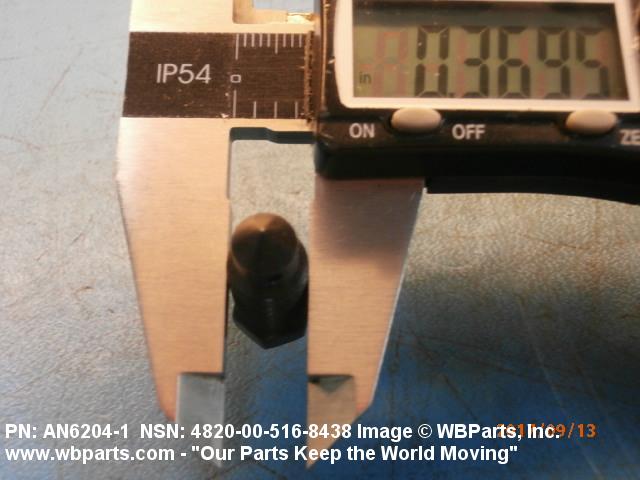

Drawings & Photos | NSN 4820-00-516-8438
Demand History | NSN 4820-00-516-8438
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN62041A | 2024-06-169 | 100 | United States |
| AN62041A | 2024-03-65 | 5 | United States |
| AN62041A | 2024-01-30 | 6 | United States |
| 4820-00-516-8438 | 2020-09-252 | 6 | SA |
| 4820-00-516-8438 | 2019-02-42 | 99 | India |
| 4820-00-516-8438 | 2018-05-128 | 3420 | DIBBS |
| 4820-00-516-8438 | 2018-04-95 | 148 | DIBBS |
| 4820-00-516-8438 | 2018-04-93 | 594 | DIBBS |
| 4820-00-516-8438 | 2018-02-42 | 119 | DIBBS |
| 4820-00-516-8438 | 2018-02-37 | 156 | DIBBS |
| 4820-00-516-8438 | 2018-01-21 | 1732 | DIBBS |
| 4820-00-516-8438 | 2018-01-15 | 1511 | DIBBS |
| 4820-00-516-8438 | 2018-01-03 | 4127 | DIBBS |
| 4820-00-516-8438 | 2017-08-240 | 6 | United States |
| 4820-00-516-8438 | 2017-07-211 | 2776 | DIBBS |
| 4820-00-516-8438 | 2017-05-130 | 1014 | DIBBS |
| 4820-00-516-8438 | 2016-03-84 | 2412 | DIBBS |
| AN62041 | 2015-11-322 | 30 | Philippines |
| 4820-00-516-8438 | 2015-10-291 | 3998 | DIBBS |
| AN62041 | 2015-04-114 | 150 | United States |
| AN62041 | 2015-04-91 | 1 | United States |
| AN62041 | 2015-03-86 | 8 | United States |
| 4820-00-516-8438 | 2014-06-169 | 10 | United States |
| 4820-00-516-8438 | 2014-04-93 | 10 | Taiwan |
| 4820-00-516-8438 | 2013-10-276 | 4236 | DIBBS |
| AN62041 | 2013-07-206 | 151 | United States |
| 4820-00-516-8438 | 2013-04-93 | 1742 | DIBBS |
| AN6204-1 | 2013-02-39 | 4 | US |
| 4820-00-516-8438 | 2013-01-28 | 1137 | DIBBS |
| AN62041 | 2012-11-326 | 20 | US |
| 4820-00-516-8438 | 2012-11-325 | 20 | DE |
| 4820-00-516-8438 | 2012-08-243 | 1398 | DIBBS |
| AN62041 | 2012-05-123 | 100 | United States |
| 4820-00-516-8438 | 2011-01-12 | 1067 | DIBBS |
| AN6204-1 | 2010-11-333 | 132 | |
| 4820-00-516-8438 | 2010-06-172 | 1457 | DIBBS |
| 4820-00-516-8438 | 2009-02-50 | 6 | SV |
| 4820-00-516-8438 | 2007-10-288 | 25 | United States |
| 4820-00-516-8438 | 2007-06-178 | 155 | United States |
Cross Reference | NSN 4820-00-516-8438
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 15745-84 | 29899 | HYDE MARINE, INC. |
| 2-2644-5 | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| 2-2644-5 | 92003 | PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS |
| 203867 | 0KDP7 | KIDDE-FENWAL INC DBA CHEMTRON KIDDE FIRE SYSTEMS |
| 203867 | 96487 | VALCOR ENGINEERING CORP |
| 2933 | 21368 | FAIRBANKS CO THE |
| 3X84211 | 62983 | EATON AEROSPACE LLC |
| 4840005168438 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 8176638 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 8176638 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 9594781624 | S4080 | PILATUS AIRCRAFT LTD |
| A84-1 | 25472 | BFGOODRICH CO THE |
| AN6204-1 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN6204-1 | F6101 | ZODIAC AEROSAFETY SYSTEMS |
| AN6204-1 | FB011 | AERO STOCK |
| AN6204-1A | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| FC6446 | 33269 | PARKER-HANNIFIN CORPORATION DBA PARKER HANNIFIN CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-516-8438
Related Products | NSN 4820-00-516-8438
Restrictions/Controls & Freight Information | NSN 4820-00-516-8438
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-516-8438
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SU | SU:AF SICA RESIDUAL MMAC-OO-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 0 | Non-combat Essential End Item. End items that do not fit the definition of Code 1 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
