NSN 4820-00-508-6096 88355-160-1, 00-508-6096, 883551601
Product Details | TEMPERATURE REGULATING VALVE
4820-00-508-6096 A self-acting valve designed for controlling, by means of a thermostatic element, the flow of liquids or gases therethrough. The thermostatic element is located in liquid or gas whose temperature is controlled by the heat of the liquid or gas flowing through the valve. See also VALVE, RELIEF, PRESSURE AND TEMPERATURE.
Part Alternates: 88355-160-1, 4820-00-508-6096, 00-508-6096, 4820005086096, 883551601, 005086096
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-508-6096 | 05492 ( VALVE, REGULATING, TEMPERATURE ) |
Drawings & Photos | NSN 4820-00-508-6096
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-508-6096
Related Products | NSN 4820-00-508-6096
Technical Data | NSN 4820-00-508-6096
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | ALUMINUM ALLOY |
| SEAT MATERIAL | ALUMINUM ALLOY |
| STEM MATERIAL | ALUMINUM ALLOY |
| END CONNECTION QUANTITY | 4 |

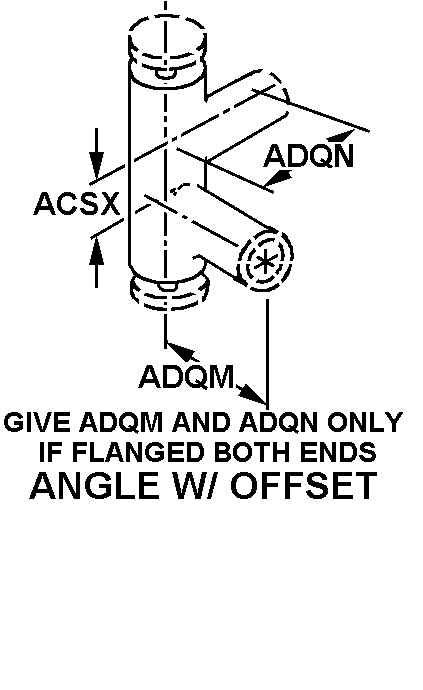

| BODY STYLE | A35 ANGLE W/OFFSET |
| TWO-WAY VALVE ACTION | DIRECT ACTING |
| MOUNTING FACILITY | FLANGE |
| THERMOSTATIC ELEMENT | LIQUID IMMERSION TYPE |
| III FSC APPLICATION DATA | COOLER,LUBRICATING OIL,AIRCRAFT ENGINE |
| MANUFACTURERS CODE | 70210 |
| DESIGN CONTROL REFERENCE | 88355-160-1 |
Restrictions/Controls & Freight Information | NSN 4820-00-508-6096
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 7 | 36 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 188340 | VALVES THEMOSTATIC NOI/THEMOSTATS |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-508-6096
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | GH | HELICOPTERS(H34) |
| Issue Repair, or Requisition | AR | Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | N32 | Naval Inventory Control Point Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 7 | 36 months |
| Purchasing | QTY UOM |
1 EA : Each |
