NSN 4820-00-498-7300 MS2888432, MS28884-32, MS28884A32
Product Details | CHECK VALVE

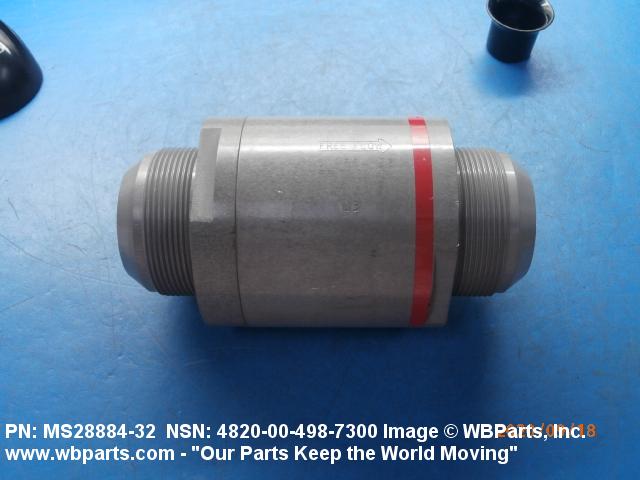

4820-00-498-7300 A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design.
Part Alternates: MS2888432, MS28884-32, MS28884A32, MS28884A-32, MILV7899, MIL-V-7899, 58832D1, 588-32D1, 4820-00-498-7300, 00-498-7300, 4820004987300, 004987300
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 17 OCT 1969 | 00-498-7300 | 05487 ( VALVE, CHECK ) |

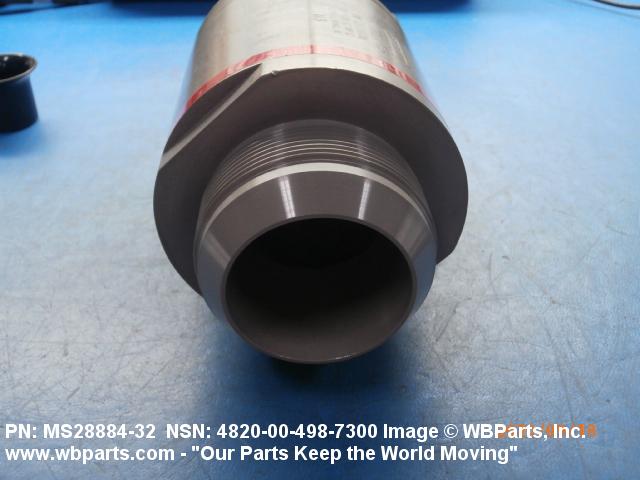

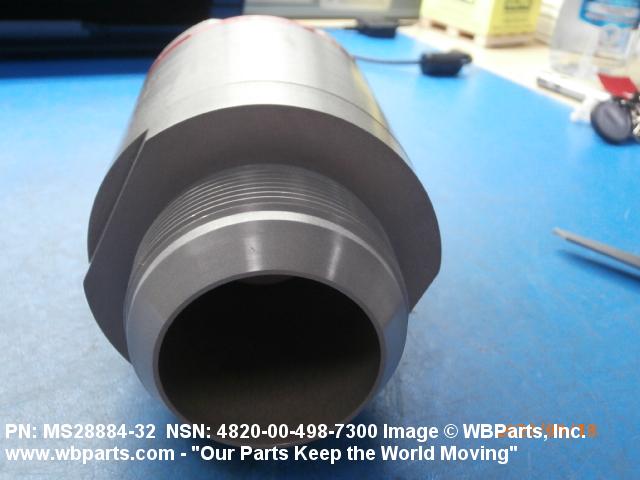

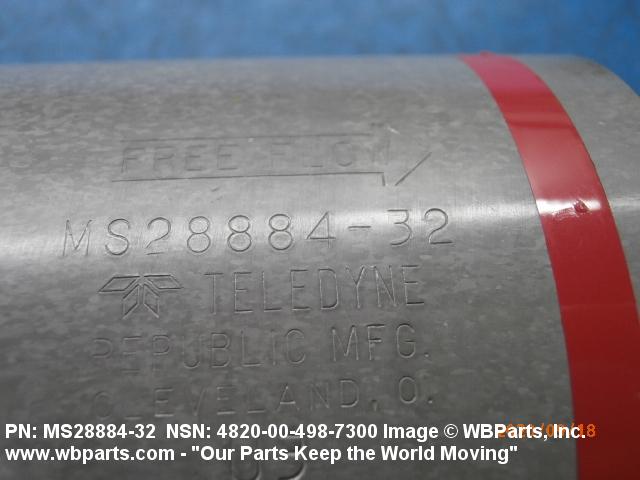

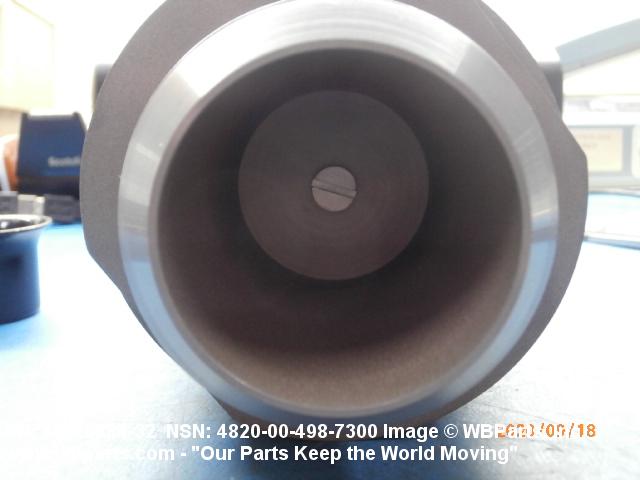

Drawings & Photos | NSN 4820-00-498-7300
Demand History | NSN 4820-00-498-7300
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-498-7300 | 2023-12-340 | 9 | DIBBS |
| 4820-00-498-7300 | 2023-01-29 | 9 | DIBBS |
| 4820-00-498-7300 | 2022-11-318 | 5 | DIBBS |
| 4820-00-498-7300 | 2022-09-262 | 3 | DIBBS |
| 4820-00-498-7300 | 2022-08-243 | 1 | DIBBS |
| 4820-00-498-7300 | 2022-04-96 | 1 | DIBBS |
| 4820-00-498-7300 | 2022-03-72 | 2 | DIBBS |
| 4820-00-498-7300 | 2022-02-44 | 1 | DIBBS |
| 4820-00-498-7300 | 2022-02-32 | 1 | DIBBS |
| 4820-00-498-7300 | 2022-01-31 | 1 | DIBBS |
| 4820-00-498-7300 | 2020-09-254 | 1 | United States |
| 4820-00-498-7300 | 2019-05-148 | 34 | DIBBS |
| 4820-00-498-7300 | 2019-05-136 | 34 | DIBBS |
| 4820-00-498-7300 | 2019-04-104 | 32 | DIBBS |
| 4820-00-498-7300 | 2019-02-35 | 2 | DIBBS |
| 4820-00-498-7300 | 2019-02-34 | 25 | DIBBS |
| 4820-00-498-7300 | 2019-01-24 | 16 | DIBBS |
| 4820-00-498-7300 | 2018-12-350 | 16 | DIBBS |
| 4820-00-498-7300 | 2018-11-326 | 2 | DIBBS |
| 4820-00-498-7300 | 2018-11-319 | 14 | DIBBS |
| 4820-00-498-7300 | 2018-05-140 | 13 | DIBBS |
| 4820-00-498-7300 | 2018-03-84 | 11 | DIBBS |
| 4820-00-498-7300 | 2017-03-61 | 13 | DIBBS |
| 4820-00-498-7300 | 2016-12-356 | 4 | DIBBS |
| 4820-00-498-7300 | 2016-03-67 | 16 | DIBBS |
| 4820-00-498-7300 | 2015-04-112 | 17 | DIBBS |
| 4820-00-498-7300 | 2013-11-310 | 13 | DIBBS |
| 4820-00-498-7300 | 2013-05-121 | 13 | DIBBS |
| 4820-00-498-7300 | 2013-01-13 | 1 | DIBBS |
| 4820-00-498-7300 | 2012-01-03 | 5 | DIBBS |
| 4820-00-498-7300 | 2011-11-308 | 4 | DIBBS |
| 4820-00-498-7300 | 2011-10-304 | 4 | DIBBS |
| 4820-00-498-7300 | 2011-10-285 | 1 | DIBBS |
| 4820-00-498-7300 | 2011-09-273 | 4 | DIBBS |
| 4820-00-498-7300 | 2011-09-259 | 7 | DIBBS |
| 4820-00-498-7300 | 2011-08-238 | 4 | DIBBS |
| 4820-00-498-7300 | 2011-06-180 | 4 | DIBBS |
| 4820-00-498-7300 | 2010-04-113 | 4 | DIBBS |
| 4820-00-498-7300 | 2010-03-67 | 3 | DIBBS |
Cross Reference | NSN 4820-00-498-7300
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 588-32D1 | 09990 | PARKER-HANNIFIN CORPORATION DBA HYDRAULIC VALVE DIV |

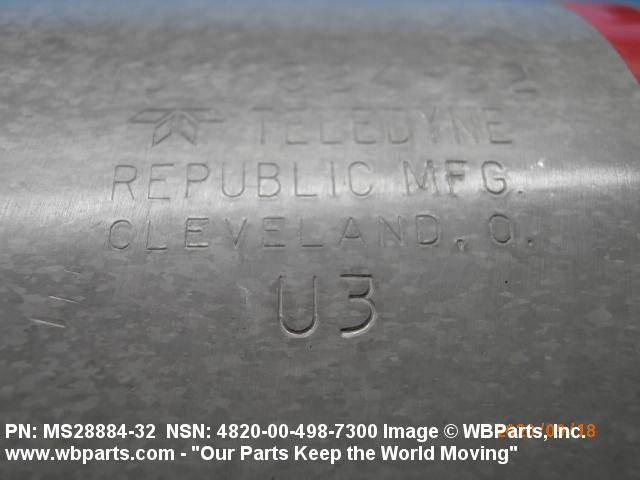

| 588-32D1 | 86768 | TELEDYNE INDUSTRIES INC TELEDYNE FLUID SYSTEMS REPUBLIC |
| MIL-V-7899 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |

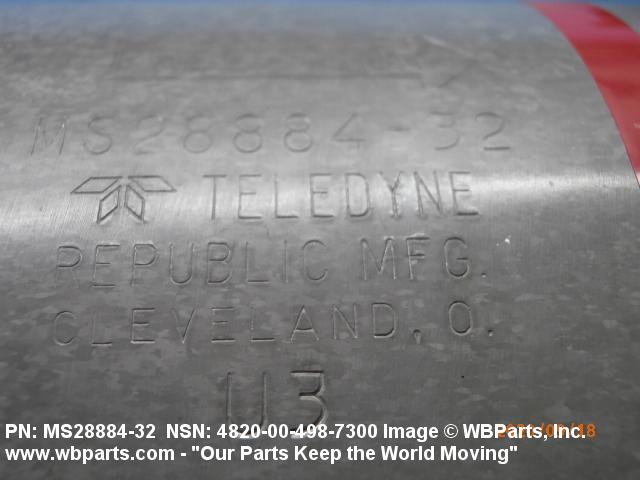

| MS28884-32 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS28884A-32 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-498-7300
Related Products | NSN 4820-00-498-7300
Technical Data | NSN 4820-00-498-7300
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE |
| STYLE DESIGNATOR | A6 STRAIGHT THRU |

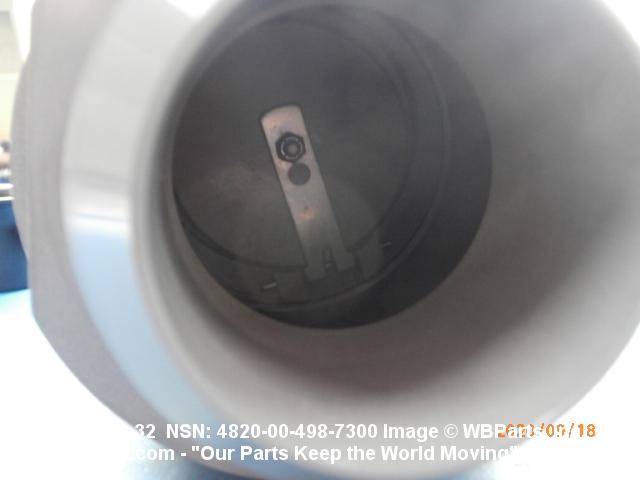

| FLOW CONTROL DEVICE | DISK |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 300.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 160.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B42 FLARED ALL ENDS |
| SEAT ANGLE | 37.0 DEGREES ALL ENDS |
| THREAD SERIES DESIGNATOR | UN ALL ENDS |

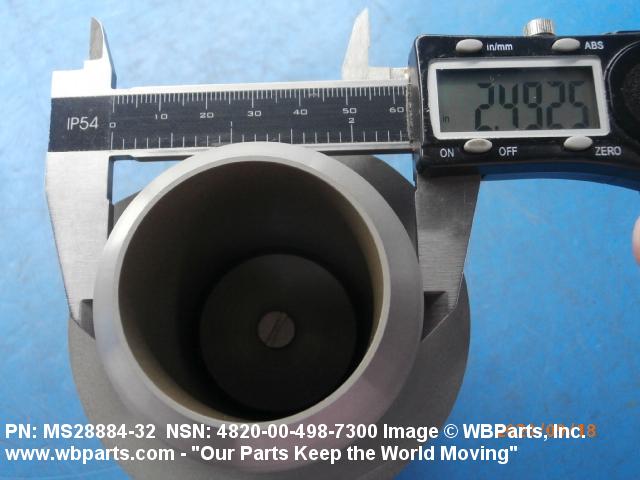

| NOMINAL THREAD SIZE | 2.500 INCHES ALL ENDS |

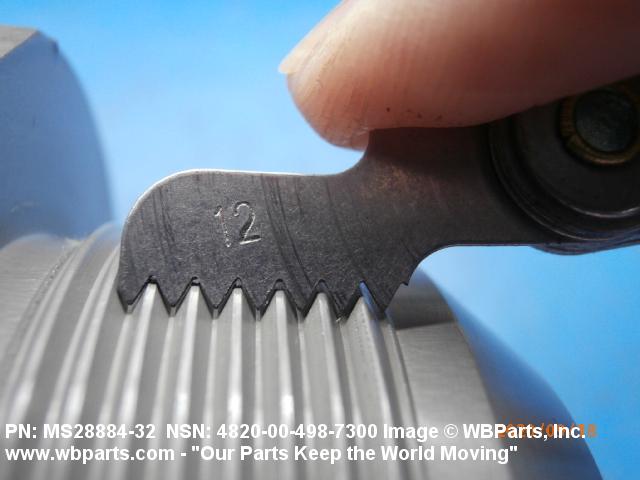

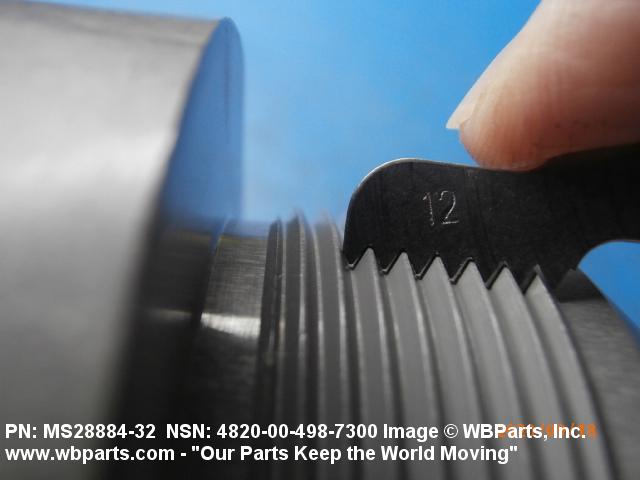

| THREAD QUANTITY PER INCH | 12 ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| MOUNTING POSITION | HORIZONTAL OR VERTICAL |
| DISK LOADING METHOD | SPRING |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-V-7899 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS28884A-32 |
Restrictions/Controls & Freight Information | NSN 4820-00-498-7300
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-498-7300
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
