NSN 4820-00-483-0680 C35299M002, C35299-M002, C35887
Product Details | CHECK VALVE
4820-00-483-0680 A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design.
Part Alternates: C35299M002, C35299-M002, C35887, C-35887 , PL10300-60-2 ITEM 31, PL10300602ITEM31, X35887 3/4IN , X3588734IN, 5299-002 .75IN, 529900275IN, 618466, 6184-66, 8031385721, 803-1385721, 803-1385721 .75IN, 803-1385721 3/4IN, 803-1385721 ADRN-M1, 803138572134IN, 803138572175IN, 8031385721ADRNM1, 810-1385721 3-4IN, 810138572134IN, 10300-60-2 ITEM, 10300602ITEM, 426-WS3/4, 426WS34, 426WS-3-4, 4820-00-483-0680, 00-483-0680, 4820004830680, 004830680
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 12 FEB 1971 | 00-483-0680 | 05487 ( VALVE, CHECK ) |

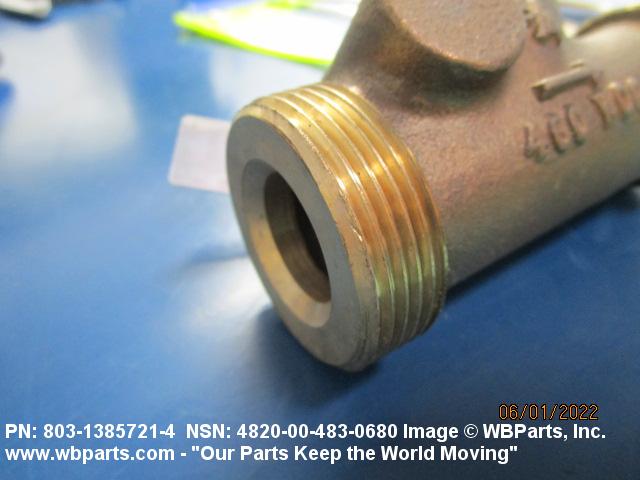

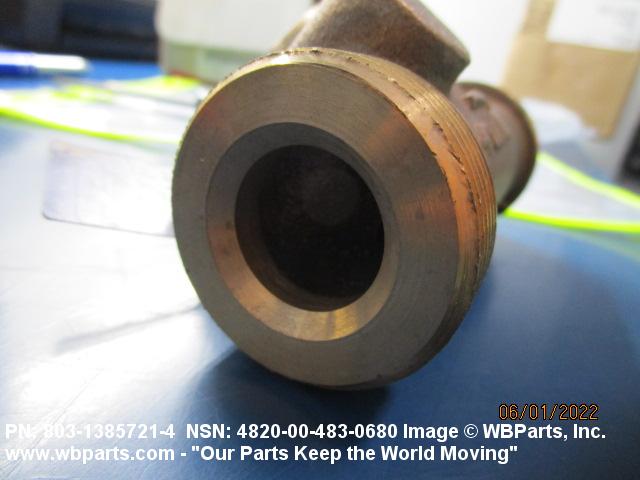

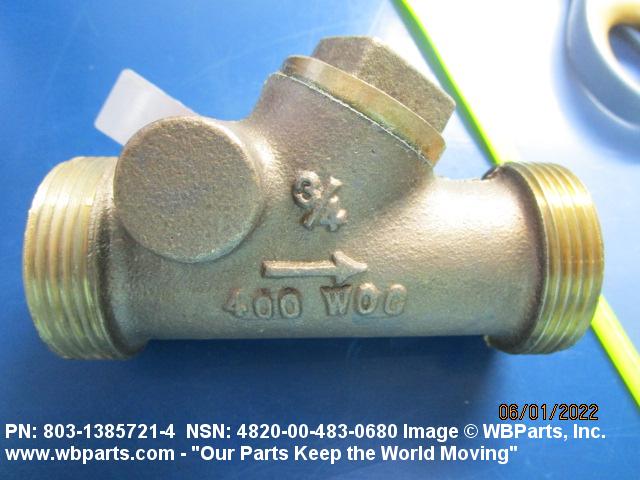

Drawings & Photos | NSN 4820-00-483-0680
Demand History | NSN 4820-00-483-0680
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-483-0680 | 2024-12-345 | 15 | DIBBS |
| 4820-00-483-0680 | 2024-02-39 | 104 | DIBBS |
| 4820-00-483-0680 | 2023-07-187 | 34 | DIBBS |
| 4820-00-483-0680 | 2023-05-131 | 66 | DIBBS |
| 4820-00-483-0680 | 2023-02-52 | 137 | DIBBS |
| 4820-00-483-0680 | 2023-02-40 | 137 | DIBBS |
| 4820-00-483-0680 | 2022-12-361 | 52 | DIBBS |
| 4820-00-483-0680 | 2022-12-349 | 52 | DIBBS |
| 4820-00-483-0680 | 2022-05-143 | 1 | United States |
| 4820-00-483-0680 | 2020-04-114 | 1 | DIBBS-RFPs |
| 4820-00-483-0680 | 2018-10-285 | 1 | AU |
| 4820-00-483-0680 | 2015-09-256 | 117 | DIBBS |
| 4820-00-483-0680 | 2015-08-221 | 55 | DIBBS |
| 4820-00-483-0680 | 2015-06-172 | 100 | DIBBS |
| 4820-00-483-0680 | 2014-11-307 | 101 | DIBBS |
| 4820-00-483-0680 | 2014-10-294 | 101 | DIBBS |
| 4820-00-483-0680 | 2014-07-205 | 42 | DIBBS |
| 4820-00-483-0680 | 2014-07-194 | 42 | DIBBS |
| 4820-00-483-0680 | 2012-05-145 | 11 | Pakistan |
| 8031385721 | 2010-09-257 | 1 | US |
Cross Reference | NSN 4820-00-483-0680
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10300-60-2 ITEM | 01496 | AIR DRY CO OF AMERICA, LLC DIV ESTERLINE |
| 426-WS3/4 | 21961 | WALWORTH INDUSTRIES INC |
| 426WS-3-4 | 90664 | WALWORTH CO MARINE DIV |
| 6184-66 | 01496 | AIR DRY CO OF AMERICA, LLC DIV ESTERLINE |
| 803-1385721 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 803-1385721 .75IN | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 803-1385721 3/4IN | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 803-1385721 ADRN-M1 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 810-1385721 3-4IN | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| C-35887 | 76364 | MILWAUKEE VALVE COMPANY, INC. DBA HAMMOND |
| C35299-M002 | 76364 | MILWAUKEE VALVE COMPANY, INC. DBA HAMMOND |
| PL10300-60-2 ITEM 31 | 01496 | AIR DRY CO OF AMERICA, LLC DIV ESTERLINE |
| X35887 3/4IN | 76364 | MILWAUKEE VALVE COMPANY, INC. DBA HAMMOND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-483-0680
Related Products | NSN 4820-00-483-0680
Technical Data | NSN 4820-00-483-0680
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 836 BODY STEEL CORROSION RESISTING FLOW CONTROL DEVICE |
| STYLE DESIGNATOR | A2 STRAIGHT THRU |
| VALVE SIZE | 0.750 INCHES |
| FLOW CONTROL DEVICE | DISK |
| MEDIA FOR WHICH DESIGNED | STEAM 1ST RESPONSE WATER-OIL-GAS 2ND RESPONSE |
| MAXIMUM OPERATING PRESSURE | 400.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 425.0 DEG FAHRENHEIT 1ST RESPONSE 150.0 DEG FAHRENHEIT 2ND RESPONSE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | THREADED EXTERNAL PIPE ALL ENDS |
| CONNECTION STYLE | B46B PLAIN ALL ENDS |
| THREAD SERIES DESIGNATOR | NPT ALL ENDS |
| NOMINAL THREAD SIZE | 0.750 INCHES ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| MOUNTING POSITION | HORIZONTAL OR VERTICAL |
| SPECIAL FEATURES | SWING CHECK TYPE |
| TEST DATA DOCUMENT | 81349-MIL-S-901 SPECIFICATION |
Restrictions/Controls & Freight Information | NSN 4820-00-483-0680
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-483-0680
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
