NSN 4820-00-482-8907 4DP2080A1 1/4 I, 4DP2080A1 1-4IN, 4DP2080A114I
Product Details | CHECK VALVE
4820-00-482-8907 A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design.
Part Alternates: 4DP2080A1 1/4 I, 4DP2080A1 1-4IN, 4DP2080A114I, 4DP2080A114IN, 8031385721, 803-1385721, 80313857216, 803-1385721-6, 8101385721, 810-1385721, 810-1385721 1-1/4IN, 8101385721114IN, 81013857216, 810-1385721-6, 8101385721REVK, 810-1385721REVK, 1B948 1 1-4IN, 1B948114IN, 419WS1 1-4IN, 419WS114IN, 426WS 1 1-4IN, 426WS114IN, 4820-00-482-8907, 00-482-8907, 4820004828907, 004828907
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 05 FEB 1971 | 00-482-8907 | 05487 ( VALVE, CHECK ) |
Drawings & Photos | NSN 4820-00-482-8907
Demand History | NSN 4820-00-482-8907
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-482-8907 | 2023-12-345 | 131 | DIBBS |
| 4820-00-482-8907 | 2023-11-334 | 131 | DIBBS |
| 4820-00-482-8907 | 2023-11-328 | 60 | DIBBS |
| 4820-00-482-8907 | 2023-11-316 | 60 | DIBBS |
| 4820-00-482-8907 | 2023-08-240 | 38 | DIBBS |
| 4820-00-482-8907 | 2023-08-229 | 38 | DIBBS |
| 4820-00-482-8907 | 2023-04-96 | 24 | DIBBS |
| 4820-00-482-8907 | 2023-03-85 | 24 | DIBBS |
| 4820-00-482-8907 | 2022-03-61 | 1 | US |
| 4820-00-482-8907 | 2021-05-123 | 4 | DIBBS |
| 4820-00-482-8907 | 2021-04-110 | 4 | DIBBS |
| 4820-00-482-8907 | 2021-01-19 | 4 | DIBBS |
| 4820-00-482-8907 | 2021-01-07 | 4 | DIBBS |
| 4820-00-482-8907 | 2020-10-293 | 10 | DIBBS |
| 4820-00-482-8907 | 2020-10-282 | 10 | DIBBS |
| 4820-00-482-8907 | 2020-04-114 | 1 | DIBBS-RFPs |
| 4820-00-482-8907 | 2014-12-356 | 79 | DIBBS |
| 4820-00-482-8907 | 2014-12-343 | 79 | DIBBS |
| 8031385721 | 2010-09-257 | 1 | US |
| 4820-00-482-8907 | 2008-04-117 | 1 | Saudi Arabia |
Cross Reference | NSN 4820-00-482-8907
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1B948 1 1-4IN | 14448 | HAMMOND VALVE CORP |
| 419WS1 1-4IN | 63686 | THE WALWORTH COMPANY |
| 426WS 1 1-4IN | 63686 | THE WALWORTH COMPANY |
| 4DP2080A1 1-4IN | 63686 | THE WALWORTH COMPANY |
| 4DP2080A1 1/4 I | 63686 | THE WALWORTH COMPANY |
| 803-1385721 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 803-1385721-6 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 810-1385721 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 810-1385721 1-1/4IN | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 810-1385721-6 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 810-1385721REVK | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-482-8907
Related Products | NSN 4820-00-482-8907
Technical Data | NSN 4820-00-482-8907
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 922 BODY NICKEL ALLOY R-405 FLOW CONTROL DEVICE COPPER ALLOY 922 SEAT |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-390,ALLOY D4/D/ FED SPEC SINGLE MATERIAL RESPONSE BODY QQ-N-281 FED SPEC SINGLE MATERIAL RESPONSE FLOW CONTROL DEVICE QQ-C-390,ALLOY D4/D/ FED SPEC SINGLE MATERIAL RESPONSE SEAT |
| STYLE DESIGNATOR | A2 STRAIGHT THRU |
| VALVE SIZE | 1.250 INCHES |
| FLOW CONTROL DEVICE | DISK |
| MEDIA FOR WHICH DESIGNED | STEAM 1ST RESPONSE WATER-OIL-GAS 2ND RESPONSE |
| MAXIMUM OPERATING PRESSURE | 200.0 POUNDS PER SQUARE INCH 1ST RESPONSE 400.0 POUNDS PER SQUARE INCH 2ND RESPONSE |
| MAXIMUM OPERATING TEMP | 425.0 DEG FAHRENHEIT 1ST RESPONSE 150.0 DEG FAHRENHEIT 2ND RESPONSE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | UNTHREADED INTERNAL PIPE ALL ENDS |

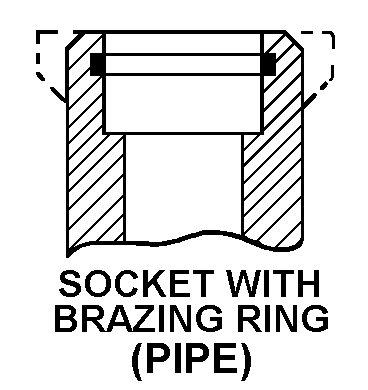

| CONNECTION STYLE | B30B SOCKET W/BRAZING RING ALL ENDS |
| NOMINAL PIPE SIZE ACCOMMODATED | 1.250 INCHES ALL ENDS |
| MOUNTING POSITION | HORIZONTAL OR VERTICAL |
| SPECIAL FEATURES | 1.250 IN. VALVE SIZE,EACH VALVE SHALL HAVE THREEBUNA-N O-RINGS PACKED IN A BAG AND SECURELY ATTACHED WITH INSTRUCTIONS O-RINGS FOR OIL SERVICE ONLY |
| TEST DATA DOCUMENT | 03950-ACID NO.882037045 SPECIFICATION |
Restrictions/Controls & Freight Information | NSN 4820-00-482-8907
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-482-8907
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
