NSN 4820-00-415-1313 SS70905K4C, SS70-905K4C, SS70905K4J
Product Details | CHECK VALVE
4820-00-415-1313 A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design.
Part Alternates: SS70905K4C, SS70-905K4C, SS70905K4J, SS70-905K-4J, SS70905K4L, SS70-905K-4L, 2C70904J, 2C7090-4J, SS70, 4820-00-415-1313, 00-415-1313, 4820004151313, 004151313
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 02 DEC 1970 | 00-415-1313 | 05487 ( VALVE, CHECK ) |
Drawings & Photos | NSN 4820-00-415-1313
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-415-1313
Related Products | NSN 4820-00-415-1313
Technical Data | NSN 4820-00-415-1313
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING AND STEEL COMP 303 AND STEEL COMP 304 AND STEEL COMP 316 AND STEEL COMP 321 BODY STEEL COMP 440C AND STEEL COMP 630 FLOW CONTROL DEVICE STEEL CORROSION RESISTING AND STEEL COMP 303 AND STEEL COMP 304 AND STEEL COMP 316 AND STEEL COMP 321 SEAT |
| MATERIAL DOCUMENT AND CLASSIFICATION | FED STD 66,AISI 302/SAE30302 FED STD 1ST MATERIAL RESPONSE AND FED STD 66,AISI 303/SAE 30303 FED STD 2ND MATERIAL RESPONSE AND FED STD 66,AISI 304/SAE 30304 FED STD 3RD MATERIAL RESPONSE AND FED STD 66,AISI 316/SAE 30316 FED STD 4TH MATERIAL RESPONSE AND FED STD 66,AISI 321/SAE 30321 FED STD 5TH MATERIAL RESPONSE BODY QQ-S-763,CLASS 440C FED SPEC 1ST MATERIAL RESPONSE AND AMS 5643 ASSN STD 2ND MATERIAL RESPONSE FLOW CONTROL DEVICE FED STD 66,AISI 302/SAE 30302 FED STD 1ST MATERIAL RESPONSE AND FED STD 66,AISI 303/SAE 30303 FED STD 2ND MATERIAL RESPONSE AND FED STD 66,AISI 304/SAE 30304 FED SPEC 3RD MATERIAL RESPONSE AND FED STD 66,AISI 316/SAE 30316 FED SPEC 4TH MATERIAL RESPONSE AND FED STD 66,AISI 321/SAE 30321 FED SPEC 5TH MATERIAL RESPONSE SEAT |
| SURFACE TREATMENT | PASSIVATE |

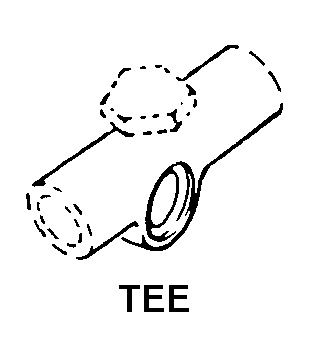

| STYLE DESIGNATOR | A7 TEE |
| FLOW CONTROL DEVICE | POPPET |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON 1ST RESPONSE REFRIGERANT, HALOGENATED 2ND RESPONSE OIL, LUBRICATING, DIESTER BASE 3RD RESPONSE HYDRAULIC FLUID, PETROLEUM BASE 4TH RESPONSE |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B45 FLARELESS ALL ENDS |
| SEAT ANGLE | 12.0 DEGREES 1ST END |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS |
| NOMINAL THREAD SIZE | 0.438 INCHES ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| MOUNTING POSITION | HORIZONTAL OR VERTICAL |
| DISK LOADING METHOD | SPRING |
Restrictions/Controls & Freight Information | NSN 4820-00-415-1313
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-415-1313
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
