NSN 4820-00-337-7913 23020060, 230-20060, 4110570
Product Details | POPPET DRAIN COCK
4820-00-337-7913 An item designed to drain fluids from fuel systems, tanks, filters, or similar items. It has a mounting end, a free flowing end, and a quick-acting nonmetallic sealed closure, usually spring loaded, that holds it in an "off" position. It requires no lubrication other than from the fluid being drained.
Part Alternates: 23020060, 230-20060, 4110570, 4820-00-337-7913, 00-337-7913, 4820003377913, 003377913
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-337-7913 | 16989 ( COCK, POPPET DRAIN ) |
Drawings & Photos | NSN 4820-00-337-7913
Demand History | NSN 4820-00-337-7913
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-337-7913 | 2017-06-153 | 5 | DIBBS |
| 4820-00-337-7913 | 2017-05-138 | 5 | DIBBS |
| 4820-00-337-7913 | 2014-03-85 | 4 | US |
| 23020060 | 2012-09-256 | 1 | US |
| 23020060 | 2012-05-136 | 1 | us |
| 4820-00-337-7913 | 2012-05-129 | 2 | CA |
| 4820-00-337-7913 | 2012-05-129 | 6 | CA |
| 23020060 | 2011-09-262 | 4 | US |
| 23020060 | 2011-02-42 | 2 | US |
| 4820-00-337-7913 | 2009-11-328 | 7 | us |
| 4820-00-337-7913 | 2009-11-328 | 7 | us |
| 23020060 | 2009-11-308 | 10 | US |
| 4110570 | 2009-10-302 | 5 | Canada |
| 230-20060 | 2009-05-146 | 8 | United States |
| 4820-00-337-7913 | 2009-04-106 | 8 | DIBBS |
Cross Reference | NSN 4820-00-337-7913
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-337-7913
Related Products | NSN 4820-00-337-7913
Technical Data | NSN 4820-00-337-7913
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY BODY |
| SURFACE TREATMENT | ANODIZE |
| FLOW CONTROL DEVICE | POPPET |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | THREADED EXTERNAL BOSS 1ST END |

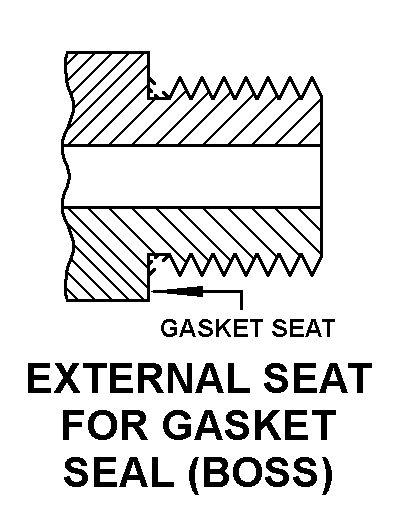

| CONNECTION STYLE | B50 EXTERNAL SEAT FOR GASKET SEAL 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNF 1ST END |
| NOMINAL THREAD SIZE | 0.875 INCHES 1ST END |
| THREAD QUANTITY PER INCH | 14 1ST END |
| THREAD CLASS | 3A 1ST END |
| THREAD DIRECTION | RIGHT-HAND 1ST END |
| MANUFACTURERS CODE | 14798 |
| DESIGN CONTROL REFERENCE | 230-20060 |
Restrictions/Controls & Freight Information | NSN 4820-00-337-7913
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-337-7913
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
