NSN 4820-00-322-7679 D106352 ITEM NO 12, D106352ITEMNO12, 1468E8
Product Details | PNEUMATIC TANK VALVE
4820-00-322-7679 A valve, designed for attachment to pressure tanks and/or mechanical equipment for the purpose of permitting an increase, decrease, and the gaging of pressure (similar to tire valves) within a confining chamber carrying compressed air, gases or oil.
Part Alternates: D106352 ITEM NO 12, D106352ITEMNO12, 1468E8, 2MP3308, 42937701, 429377-01, 4X14741Y MARK NO 8, 4X14741YMARKNO8, 4X15940 MK 8, 4X15940MK8, 8134514, 4820-00-322-7679, 00-322-7679, 4820003227679, 003227679
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-322-7679 | 06509 ( VALVE, PNEUMATIC TANK ) |
Drawings & Photos | NSN 4820-00-322-7679
Cross Reference | NSN 4820-00-322-7679
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1468E8 | 27783 | SCHRADER-BRIDGEPORT INTERNATIONAL INC |
| 1468E8 | 53477 | SCOVILL INC SCHRADER BELLOWS DIV |
| 2MP3308 | 30359 | USX CORP CHRISTY PARK WKS |
| 2MP3308 | 48899 | CP INDUSTRIES HOLDINGS, INC. |
| 2MP3308 | 61497 | UNITED STATES STEEL CORPORATION |
| 429377-01 | 07690 | BAE SYSTEMS CONTROLS INC |
| 4X14741Y MARK NO 8 | 61497 | UNITED STATES STEEL CORPORATION |
| 4X15940 MK 8 | 48899 | CP INDUSTRIES HOLDINGS, INC. |
| 8134514 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| D106352 ITEM NO 12 | 61497 | UNITED STATES STEEL CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-322-7679
Related Products | NSN 4820-00-322-7679
Technical Data | NSN 4820-00-322-7679
| Characteristic | Specifications |
|---|---|
| BODY STYLE | D2 STRAIGHT THRU |
| BODY MATERIAL | BRASS |
| OUTSIDE SURFACE TREATMENT | NICKEL PLATED |
| FLOW CONTROL DEVICE | CORE |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |

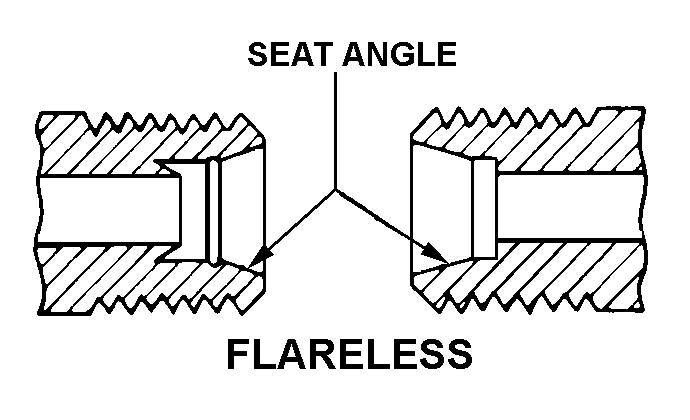

| FIRST END STYLE DESIGNATOR | J5 FLARELESS |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.302 MILLIMETERS NOMINAL |
| FIRST END THREAD CLASS | 2A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END SEAT ANGLE IN DEG | 45.0 |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL PIPE |
| SECOND END STYLE DESIGNATOR | J6 PLAIN |
| SECOND END NOMINAL PIPE SIZE ACCOMMODATED | 0.125 INCHES |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| MEDIA FOR WHICH DESIGNED | AIR |
| TEMP RATING | NOT RATED |
| CORE ENVIRONMENTAL PROTECTION | HEAT, DRY |
| COMMERCIAL CORE LENGTH DESIGNATOR | STANDARD |
| SPRING MATERIAL | STEEL, CORROSION RESISTING |
| COMMERCIAL SPRING TENSION RATING | HIGH |
| FURNISHED ITEMS | CAP |
| SPECIAL FEATURES | FIRST END CONNECTION PITCH DIA IAW TIRE AND RIM ASSN |
Restrictions/Controls & Freight Information | NSN 4820-00-322-7679
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-322-7679
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
