NSN 4820-00-293-3659 U8767, 00-293-3659, 002933659
Product Details | FOOT VALVE
4820-00-293-3659 A valve used on the free end of a suction line permitting flow in only one direction. It is always equipped with a strainer at the inlet end. See also VALVE, CHECK.
Part Alternates: U8767, 4820-00-293-3659, 00-293-3659, 4820002933659, 002933659
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 07 AUG 1980 | 00-293-3659 | 13762 ( VALVE, FOOT ) |
Drawings & Photos | NSN 4820-00-293-3659
Cross Reference | NSN 4820-00-293-3659
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| U8767 | 28193 | HENRY TECHNOLOGIES INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-293-3659
Related Products | NSN 4820-00-293-3659
Technical Data | NSN 4820-00-293-3659
| Characteristic | Specifications |
|---|---|

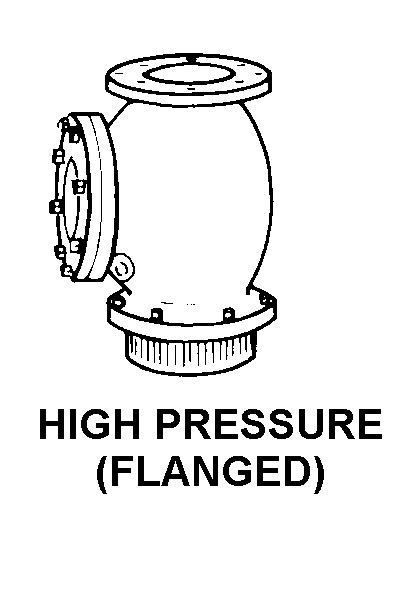

| BODY STYLE | F4 HIGH PRESSURE |
| BODY MATERIAL | BRONZE |
| FLOW CONTROL DEVICE | PLUG AND CLOSURE |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | UNTHREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | H7 PLAIN |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 2.250 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | UNTHREADED INTERNAL TUBE |
| SECOND END STYLE DESIGNATOR | H7 PLAIN |
| SECOND END OUTSIDE DIAMETER TUBE ACCOMMODATED | 2.375 INCHES NOMINAL |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 28193 |
| DESIGN CONTROL REFERENCE | U8767 |
Restrictions/Controls & Freight Information | NSN 4820-00-293-3659
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4820-00-293-3659
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | S | Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
