NSN 4820-00-288-8371 DA866P12200NF, DA866P12-200NF, MILR16743
Product Details | FLUID PRESSURE REGULATING VALVE
4820-00-288-8371 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: DA866P12200NF, DA866P12-200NF, MILR16743, V46CS, V46CS3, V46CS-3, 4820-00-288-8371, 00-288-8371, 4820002888371, 002888371
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-288-8371 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |

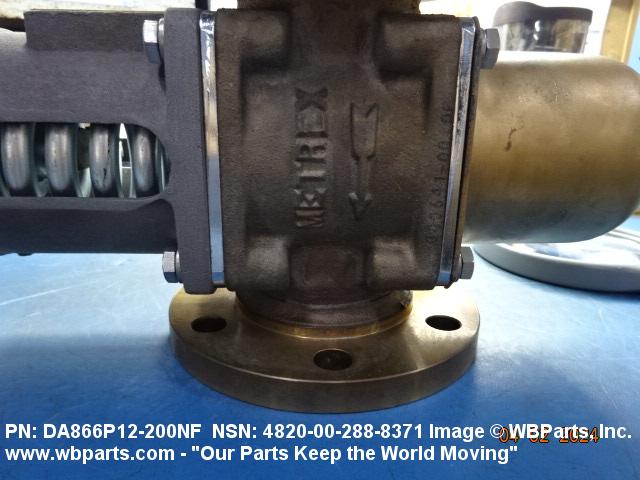

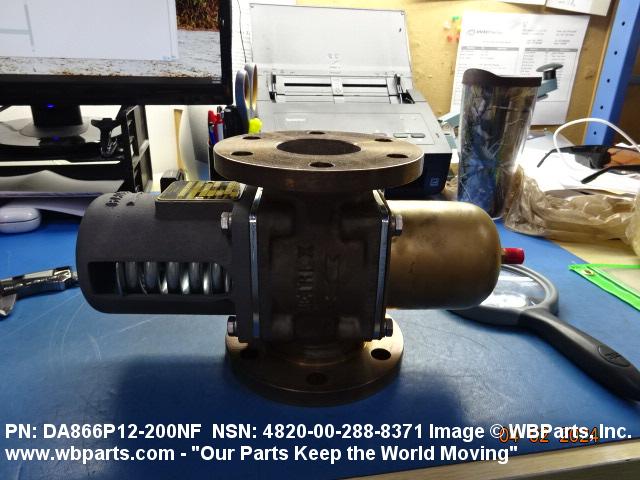

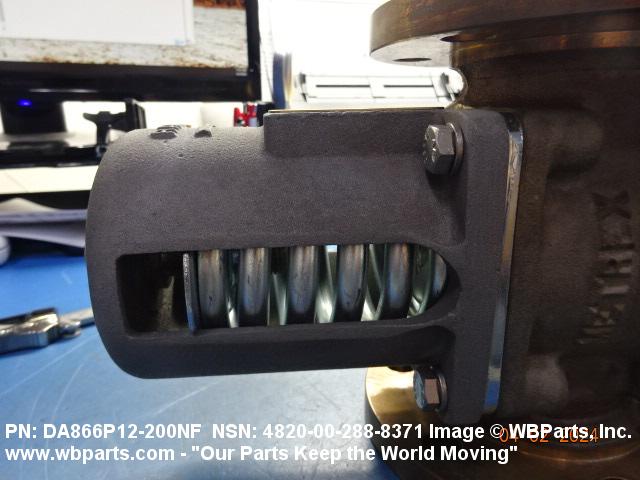

Drawings & Photos | NSN 4820-00-288-8371
Demand History | NSN 4820-00-288-8371
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-288-8371 | 2024-03-79 | 2 | United States |
| DA866P12-200NF | 2019-06-178 | 1 | DIBBS |
| V46CS | 2019-06-178 | 1 | DIBBS |
| V46CS-3 | 2019-06-178 | 1 | DIBBS |
| DA866P12-200NF | 2019-05-142 | 1 | DIBBS |
| V46CS | 2019-05-142 | 1 | DIBBS |
| V46CS-3 | 2019-05-142 | 1 | DIBBS |
| DA866P12-200NF | 2019-04-115 | 2 | DIBBS |
| V46CS | 2019-04-115 | 2 | DIBBS |
| V46CS-3 | 2019-04-115 | 2 | DIBBS |
| DA866P12-200NF | 2019-04-108 | 1 | DIBBS |
| V46CS | 2019-04-108 | 1 | DIBBS |
| V46CS-3 | 2019-04-108 | 1 | DIBBS |
| 4820-00-288-8371 | 2018-12-347 | 2 | DIBBS |
| 4820-00-288-8371 | 2018-08-235 | 1 | DIBBS |
| 4820-00-288-8371 | 2016-09-251 | 11 | DIBBS |
| 4820-00-288-8371 | 2014-04-105 | 9 | DIBBS |
| 4820-00-288-8371 | 2013-10-275 | 6 | DIBBS |
| 4820-00-288-8371 | 2013-02-50 | 6 | DIBBS |
| 4820-00-288-8371 | 2012-08-243 | 14 | DIBBS |
| 4820-00-288-8371 | 2012-06-153 | 7 | DIBBS |
| 4820-00-288-8371 | 2012-02-39 | 16 | DIBBS |
| 4820-00-288-8371 | 2011-08-213 | 5 | DIBBS |
| 4820-00-288-8371 | 2010-06-159 | 3 | DIBBS |
| 4820-00-288-8371 | 2010-03-81 | 4 | DIBBS |
| 4820-00-288-8371 | 2010-01-16 | 1 | DIBBS |
| 4820-00-288-8371 | 2009-12-345 | 4 | DIBBS |
| 4820-00-288-8371 | 2009-10-300 | 5 | DIBBS |
| 4820-00-288-8371 | 2009-09-265 | 1 | DIBBS |
| 4820-00-288-8371 | 2009-09-244 | 5 | DIBBS |
| 4820-00-288-8371 | 2008-11-331 | 4 | DIBBS |
| 4820-00-288-8371 | 2008-11-318 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-288-8371
Related Products | NSN 4820-00-288-8371
Technical Data | NSN 4820-00-288-8371
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRONZEMIL-B-16541 |
| SEAT MATERIAL | NICKEL COPPERQQ-N-281 |
| STEM MATERIAL | NICKEL COPPERQQ-N-281 |
| FLOW CONTROL DEVICE | DISK, FLAT |
| FLOW CONTROL DEVICE MATERIAL | RUBBER, SYNTHETIC |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | PLAIN FACE FLANGE |
| FIRST END STYLE DESIGNATOR | G1 PLAIN |
| FIRST END FLANGE SHAPE STYLE | 3 ROUND |
| FIRST END BOLT HOLE QUANTITY | 6 |
| FIRST END FLANGE OUTSIDE DIAMETER | 5.562 INCHES NOMINAL |
| FIRST END FLANGE THICKNESS | 0.500 INCHES NOMINAL |
| FIRST END BOLT HOLE DIAMETER | 0.562 INCHES NOMINAL |
| FIRST END BOLT CIRCLE DIAMETER | 4.438 INCHES NOMINAL |
| FIRST END NOMINAL PIPE SIZE ACCOMMODATED | 2.000 INCHES |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| BODY STYLE | A1 STRAIGHT THRU |
| FACE TO FACE DISTANCE | 6.375 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | WATER, SALT |
| RENEWABLE SEAT RING TYPE | THREADED |
| REGULATION TYPE | AUTOMATIC SINGLE STAGE |
| VALVE STEM DESIGN | SINGLE SEAT |
| VALVE LOADING METHOD | SPRING |
| REMOTE ACTUATION METHOD | BELLOWS |
| MAXIMUM INLET PRESSURE RATING | 150.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE RANGE | 70.0 TO 170.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE ACCURACY RATING | NOT RATED |
| FILTER | NOT INCLUDED |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILR16743 |
| MANUFACTURERS CODE | 21013 |
| DESIGN CONTROL REFERENCE | DA866P12-200NF |
Restrictions/Controls & Freight Information | NSN 4820-00-288-8371
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-288-8371
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
