NSN 4820-00-273-7172 N10487, N10552, 0XN330
Product Details | CHECK VALVE
4820-00-273-7172 A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design.
Part Alternates: N10487, N10552, 0XN330, 4820-00-273-7172, 00-273-7172, 4820002737172, 002737172
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-273-7172 | 05487 ( VALVE, CHECK ) |
Drawings & Photos | NSN 4820-00-273-7172
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-273-7172
Related Products | NSN 4820-00-273-7172
Technical Data | NSN 4820-00-273-7172
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BODY |

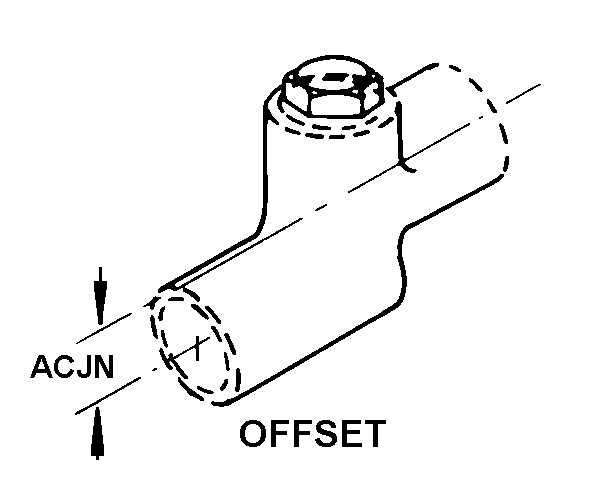

| STYLE DESIGNATOR | A5 OFFSET |
| OFFSET DISTANCE | 0.625 INCHES |
| FLOW CONTROL DEVICE | DISK |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | UNTHREADED INTERNAL PIPE 1ST END |

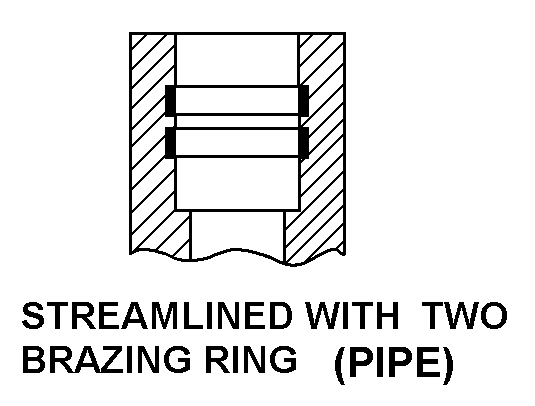

| CONNECTION STYLE | B22B STREAMLINED W/TWO BRAZING RINGS 1ST END |
| NOMINAL PIPE SIZE ACCOMMODATED | 0.375 INCHES 1ST END |
| MOUNTING POSITION | HORIZONTAL OR VERTICAL |
| DISK LOADING METHOD | SPRING |
| SPECIAL FEATURES | REQUIRES SPECIAL CLEANING AND PACKAGING FOR OXYGEN AND NITROGEN SERVICE |
| CRITICALITY CODE JUSTIFICATION | FEAT |
Restrictions/Controls & Freight Information | NSN 4820-00-273-7172
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | S | The item is a non-aviation Critical Safety Item (CSI) whose failure will result in serious damage to equipment or serious injury or death to personnel. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-273-7172
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | CP | An item that requires special cleaning and packaging for oxygen/nitrogen service (e.g, valves, piping systems, generators). |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
