NSN 4820-00-270-6198 N1534, V9 1-2, V912
Product Details | GLOBE VALVE
4820-00-270-6198 A valve with one inlet and one outlet connection with outlet flow parallel to inlet flow. The flow is controlled by the action of a stem which lifts the disk perpendicularly off the center axis of its seat. The stem is at a 90 degree (1.5708 radians) angle to axis of flow. Excludes VALVE, STOP-CHECK; COCK, SHUTOFF, SCREW STEM; and VALVE, SOLENOID.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: N1534, V9 1-2, V912, 1334MFG12, 1334MFG1-2, 1924MFG12, 1924MFG1-2, 4213721, 421372-1, 4820-00-270-6198, 00-270-6198, 4820002706198, 002706198
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 28 JUL 1973 | 00-270-6198 | 05485 ( VALVE, GLOBE ) |

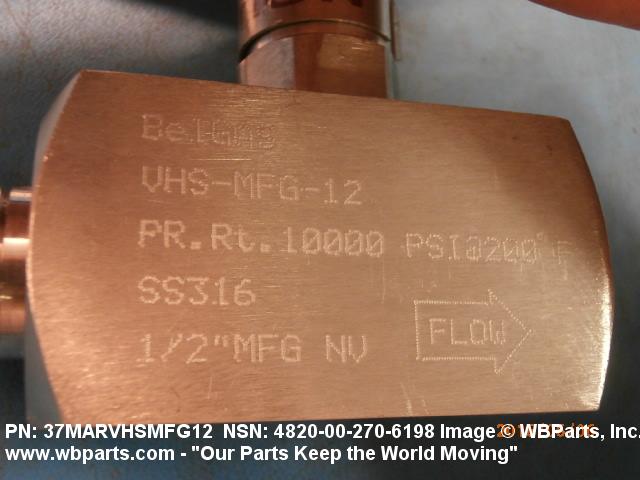

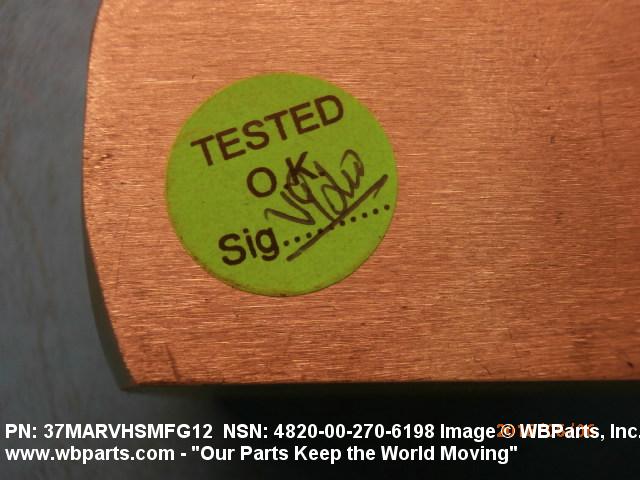

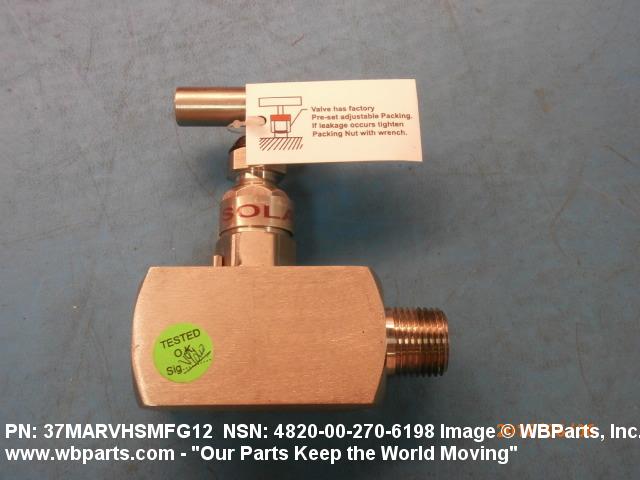

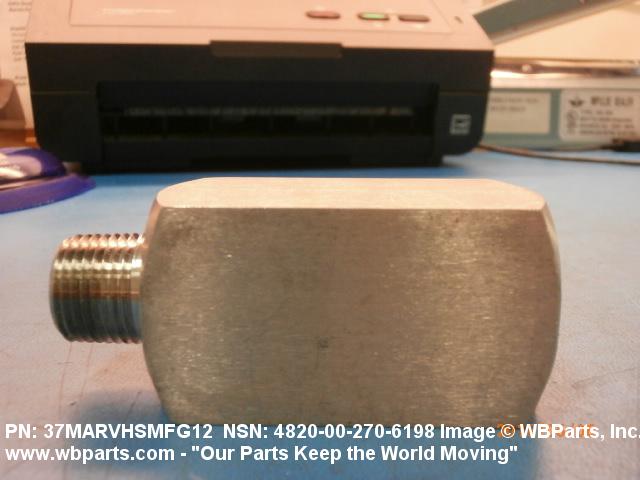

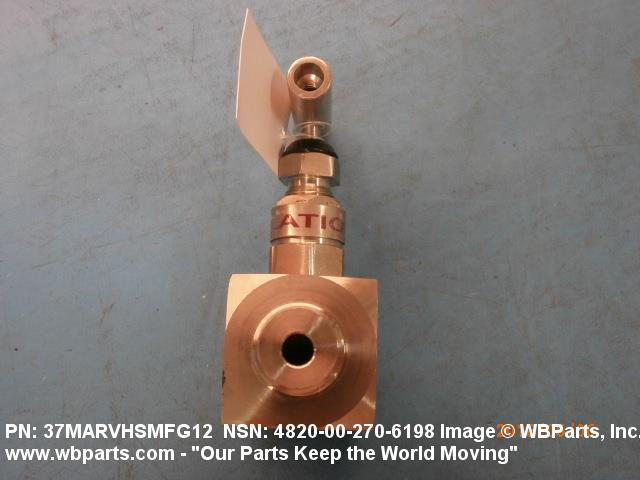

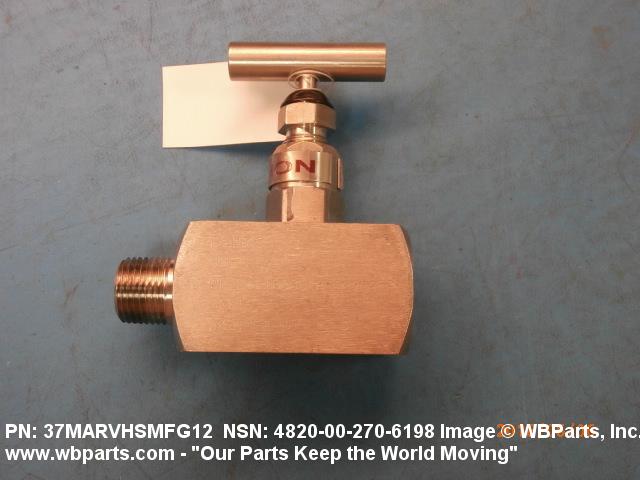

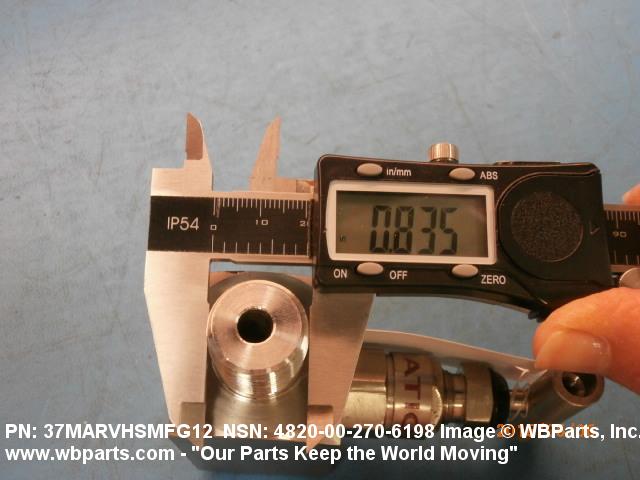

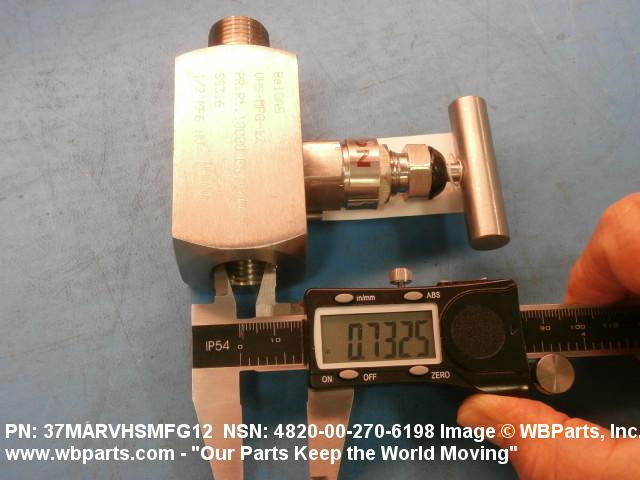

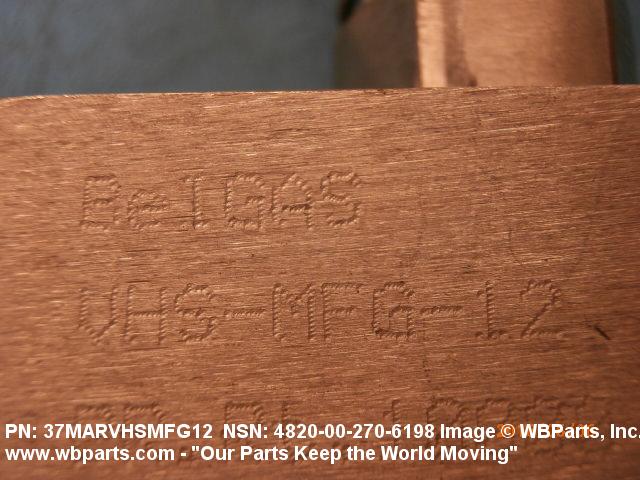

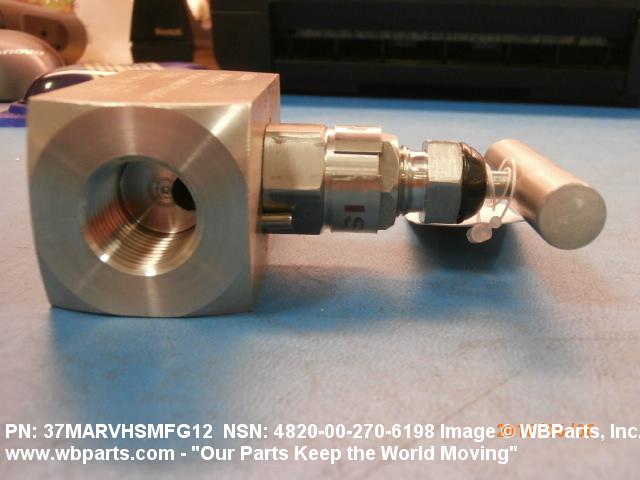

Drawings & Photos | NSN 4820-00-270-6198
Demand History | NSN 4820-00-270-6198
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-270-6198 | 2023-06-166 | 9 | DIBBS |
| 4820-00-270-6198 | 2019-07-211 | 11 | DIBBS |
| 4820-00-270-6198 | 2016-07-202 | 30 | DIBBS |
| 4820-00-270-6198 | 2016-05-147 | 8 | United States |
| 4820-00-270-6198 | 2015-10-292 | 21 | DIBBS |
| 4820-00-270-6198 | 2015-03-69 | 5 | DIBBS |
| 4820-00-270-6198 | 2012-11-335 | 11 | DIBBS |
| 4820-00-270-6198 | 2012-11-334 | 11 | DIBBS |
| 4820-00-270-6198 | 2012-05-136 | 10 | DIBBS |
| 4820-00-270-6198 | 2010-02-42 | 4 | DIBBS |
| 4820-00-270-6198 | 2009-04-93 | 8 | DIBBS |
Cross Reference | NSN 4820-00-270-6198
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1334MFG1-2 | 01170 | BELLOFRAM CORPORATION DBA MARSH-BELLOFRAM |
| 1334MFG1-2 | 38508 | DESCO CORP MARSH BELLOFRAM DIV |
| 1924MFG1-2 | 38508 | DESCO CORP MARSH BELLOFRAM DIV |
| 421372-1 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| N1534 | 38508 | DESCO CORP MARSH BELLOFRAM DIV |
| V9 1-2 | 26952 | ACTUANT CORP DBA ENERPAC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-270-6198
Related Products | NSN 4820-00-270-6198
Technical Data | NSN 4820-00-270-6198
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 416 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | A1 STRAIGHT THRU |
| FLOW CONTROL DEVICE | NEEDLE |
| MEDIA FOR WHICH DESIGNED | WATER-OIL-GAS SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 10000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 500.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | THREADED INTERNAL PIPE 1ST END THREADED EXTERNAL PIPE 2ND END |
| CONNECTION STYLE | G9 PLAIN 1ST END G46B PLAIN 2ND END |
| NOMINAL PIPE SIZE ACCOMMODATED | 0.500 INCHES 1ST END 0.500 INCHES 2ND END |
| THREAD SERIES DESIGNATOR | NPT 1ST END NPT 2ND END |
| NOMINAL THREAD SIZE | 0.500 INCHES 1ST END 0.500 INCHES 2ND END |
| THREAD QUANTITY PER INCH | 14 2ND END |
| THREAD DIRECTION | RIGHT-HAND 1ST END RIGHT-HAND 2ND END |
| BONNET TYPE | INSIDE SCREW |
| BONNET ATTACHMENT METHOD | THREADED |

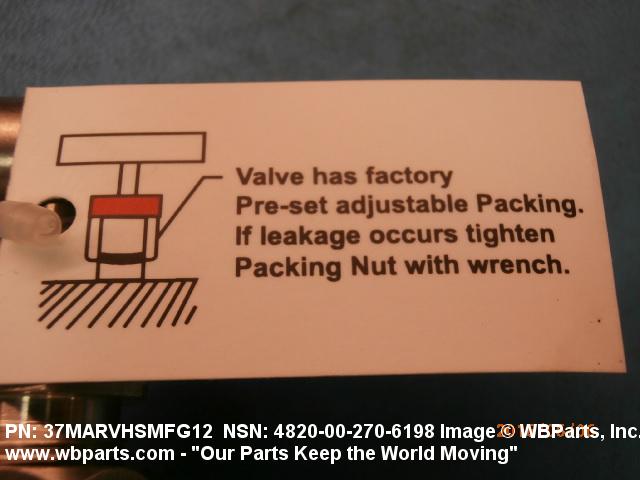

| FEATURES PROVIDED | BONNET PACKING |
Restrictions/Controls & Freight Information | NSN 4820-00-270-6198
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-270-6198
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
