NSN 4820-00-270-4675 158, 1581IN, 158-1IN
Product Details | PLUG COCK
4820-00-270-4675 An item that controls the flow of a fluid by rotation of a ported plug within a suitable ported seat. It must not have any lubrication other than from the fluid controlled, nor contain any nonmetallic seal between plug and seat. See also VALVE, SEATLESS and VALVE, PLUG.
Part Alternates: 158, 1581IN, 158-1IN, 35502, 4820-00-270-4675, 00-270-4675, 4820002704675, 002704675
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-270-4675 | 16991 ( COCK, PLUG ) |
Drawings & Photos | NSN 4820-00-270-4675
Demand History | NSN 4820-00-270-4675
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 158 | 2012-12-348 | 1 | United States |
| 158 | 2008-03-85 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-270-4675
Technical Data | NSN 4820-00-270-4675
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON CAST BODY COPPER ALLOY FLOW CONTROL DEVICE COPPER ALLOY STEM |

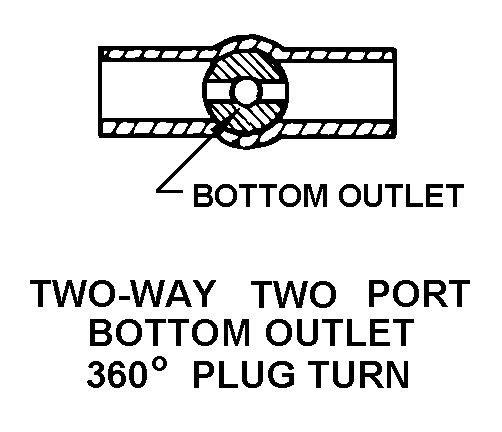

| FLOW STYLE | A8 TWO-WAY TWO PORT BOTTOM OUTLET 360 DEGREE PLUG TURN |
| MEDIA FOR WHICH DESIGNED | AIR SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 125.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | THREADED INTERNAL PIPE ALL ENDS |
| CONNECTION STYLE | B9 PLAIN ALL ENDS |
| THREAD SERIES DESIGNATOR | NPT ALL ENDS |
| NOMINAL THREAD SIZE | 1.000 INCHES ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| FEATURES PROVIDED | NONADJUSTABLE ROTATION |
Restrictions/Controls & Freight Information | NSN 4820-00-270-4675
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-270-4675
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
