NSN 4820-00-269-0011 268, 00-269-0011, 002690011
Product Details | PLUG COCK
4820-00-269-0011 An item that controls the flow of a fluid by rotation of a ported plug within a suitable ported seat. It must not have any lubrication other than from the fluid controlled, nor contain any nonmetallic seal between plug and seat. See also VALVE, SEATLESS and VALVE, PLUG.
Part Alternates: 268, 4820-00-269-0011, 00-269-0011, 4820002690011, 002690011
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 20 JUL 1973 | 00-269-0011 | 16991 ( COCK, PLUG ) |
Drawings & Photos | NSN 4820-00-269-0011
Cross Reference | NSN 4820-00-269-0011
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 268 | 14959 | CRANE CO DIV VALVE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-269-0011
Technical Data | NSN 4820-00-269-0011
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BODY COPPER ALLOY FLOW CONTROL DEVICE COPPER ALLOY STEM |

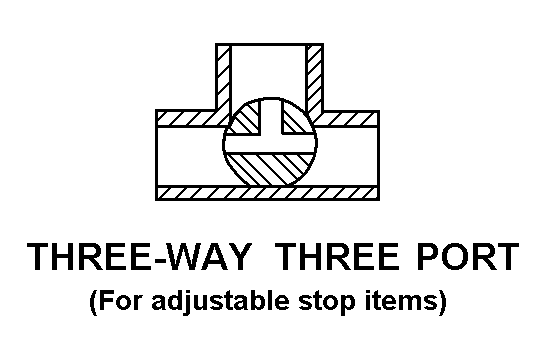

| FLOW STYLE | A32 THREE-WAY THREE PORT |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | THREADED INTERNAL PIPE 1ST END THREADED INTERNAL PIPE 3RD END |
| CONNECTION STYLE | B9 PLAIN 1ST END B9 PLAIN 3RD END |
| NOMINAL PIPE SIZE ACCOMMODATED | 1.000 INCHES 3RD END |
| THREAD SERIES DESIGNATOR | NPT 1ST END |
| NOMINAL THREAD SIZE | 1.000 INCHES 1ST END |
| THREAD QUANTITY PER INCH | 11-1/2 1ST END |
| THREAD DIRECTION | RIGHT-HAND 3RD END |
Restrictions/Controls & Freight Information | NSN 4820-00-269-0011
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
