NSN 4820-00-202-5939 MS28882A6, MS28882A-6, HE7126

Product Details | CHECK VALVE

4820-00-202-5939 A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design.

Part Alternates: MS28882A6, MS28882A-6, HE7126, HE712-6, MILDTL7899, MIL-DTL-7899 , MILV7899, MIL-V-7899, 5936D1, 593-6D1, 1111539014, 1111-539014, 3145075, 3-1450-75, 3145077, 3-1450-77, 37F65051, 4104977, 4-1049-77, 4820-00-202-5939, 00-202-5939, 4820002025939 , 002025939

Valves | Valves, Nonpowered

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
48	01 JAN 1963	00-202-5939	05487 ( VALVE, CHECK )

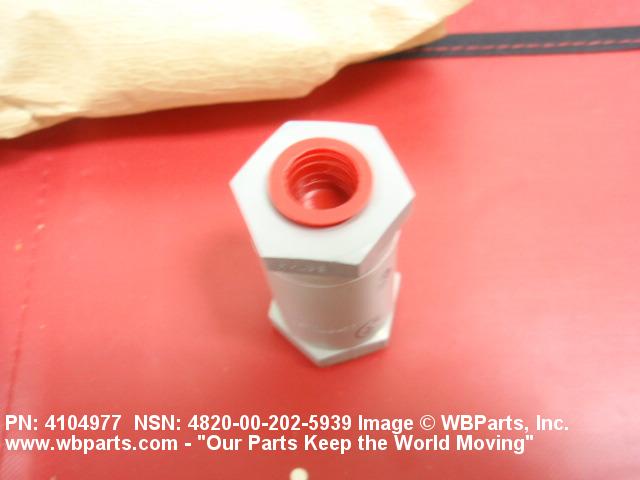

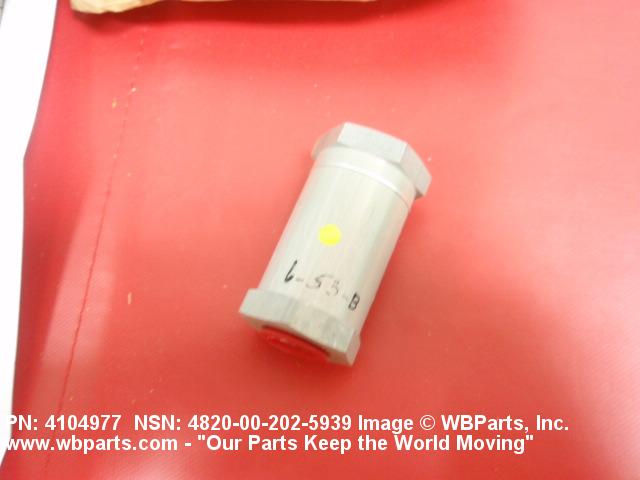

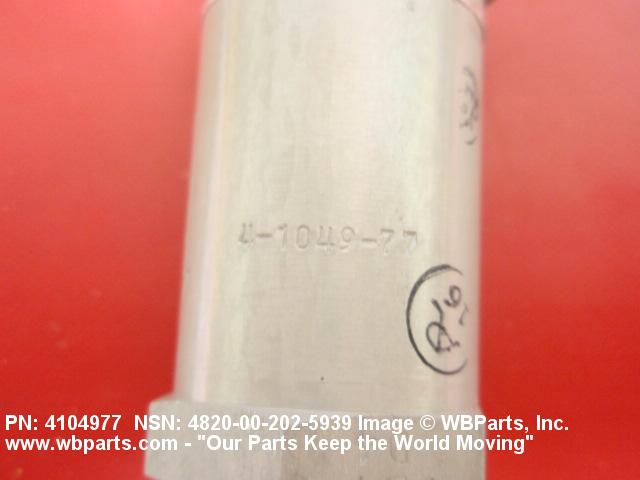

Drawings & Photos | NSN 4820-00-202-5939

Part Number	Request Date	QTY	Origin
5936D1	2024-07-213	6	United States
4820-00-202-5939	2023-09-271	13	DIBBS
4820-00-202-5939	2022-03-90	9	DIBBS
4820-00-202-5939	2021-08-228	5	DIBBS
4820-00-202-5939	2021-08-216	5	DIBBS
4820-00-202-5939	2019-09-269	10	United States
4820-00-202-5939	2019-05-139	30	DIBBS
3145075	2018-07-186	1	US
4820-00-202-5939	2017-08-213	15	Malaysia
MS28882A6	2016-11-328	50	South Korea
4820-00-202-5939	2014-09-273	35	Turkey
4820-00-202-5939	2014-03-69	40	DIBBS
4820-00-202-5939	2013-10-275	22	DIBBS
4820-00-202-5939	2013-03-72	22	DIBBS
4820-00-202-5939	2012-11-320	184	DIBBS
4820-00-202-5939	2012-10-290	31	DIBBS
4820-00-202-5939	2012-08-244	132	DIBBS
4820-00-202-5939	2012-08-226	16	DIBBS
4820-00-202-5939	2012-08-215	5	DIBBS
4820-00-202-5939	2012-06-173	52	DIBBS
4104977	2010-10-277	1	United States
MS28882A6	2010-10-277	1	United States
4820-00-202-5939	2010-04-118	120	Turkey
4820-00-202-5939	2010-04-112	120	Turkey
4820-00-202-5939	2010-04-95	184	DIBBS

Cross Reference | NSN 4820-00-202-5939

Part Number	Cage Code	Manufacturer
1111-539014	09990	PARKER-HANNIFIN CORPORATION DBA HYDRAULIC VALVE DIV
1111-539014	45681	PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS
1111-539014	92003	PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS
3-1450-75	45681	PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS
3-1450-75	86768	TELEDYNE INDUSTRIES INC TELEDYNE FLUID SYSTEMS REPUBLIC
3-1450-75	92003	PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS
3-1450-77	45681	PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS
3-1450-77	86768	TELEDYNE INDUSTRIES INC TELEDYNE FLUID SYSTEMS REPUBLIC
3-1450-77	92003	PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS
37F65051	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
4-1049-77	45681	PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS
4-1049-77	86768	TELEDYNE INDUSTRIES INC TELEDYNE FLUID SYSTEMS REPUBLIC
4-1049-77	92003	PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS
4820002025939	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
593-6D1	09990	PARKER-HANNIFIN CORPORATION DBA HYDRAULIC VALVE DIV
593-6D1	86768	TELEDYNE INDUSTRIES INC TELEDYNE FLUID SYSTEMS REPUBLIC
HE712-6	72914	GRIMES AEROSPACE COMPANY DBA HONEYWELL
MIL-V-7899	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS28882A-6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4820-00-202-5939

Compare

Related Products | NSN 4820-00-202-5939

4820-00-202-6009, 4820-00-202-6011, 4820-00-202-6014, 4820-00-202-6015, 4820-00-202-6250

Technical Data | NSN 4820-00-202-5939

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY OVERALL
SURFACE TREATMENT	ANODIZE
STYLE DESIGNATOR	A3 STRAIGHT THRU
FLOW CONTROL DEVICE	DISK
MEDIA FOR WHICH DESIGNED	FUEL/OIL, HYDROCARBON SINGLE RESPONSE
MAXIMUM OPERATING PRESSURE	75.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
MAXIMUM OPERATING TEMP	-67.0 DEG FAHRENHEIT 1ST RESPONSE 160.0 DEG FAHRENHEIT 2ND RESPONSE
CONNECTION TYPE	THREADED INTERNAL TUBE ALL ENDS
CONNECTION STYLE	B10A INVERTED FLARE ALL ENDS
SEAT ANGLE	60.0 DEGREES ALL ENDS
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.375 INCHES ALL ENDS
THREAD SERIES DESIGNATOR	UNF ALL ENDS
NOMINAL THREAD SIZE	0.562 INCHES ALL ENDS
THREAD CLASS	3B ALL ENDS
THREAD DIRECTION	RIGHT-HAND ALL ENDS
MOUNTING POSITION	HORIZONTAL
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-V-7899
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS28882A-6

Restrictions/Controls & Freight Information | NSN 4820-00-202-5939

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	051080	FAUCETS,BIBCOCKS,GATES VALVES
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4820-00-202-5939

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
