NSN 4820-00-200-0745 MSS SP-80, MSSSP80, T-413-Y 1 1-2IN FPT

Product Details | CHECK VALVE

4820-00-200-0745 A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design.

Part Alternates: MSS SP-80, MSSSP80, T-413-Y 1 1-2IN FPT, T413Y112INFPT, UA011490991, UA-011490-99-1., UA-011490-99-1-50 IN, UA01149099150IN, WWV51, WWV51E, WW-V-51E, EA15919, IB949112, IB949-1-1-2, 510A2236 ITEM 3, 510A2236ITEM3, 76E112, 76E-1-1-2, 801, B345, 103, 3412 1 1/2IN, 3412112IN, 36, 420, 461H, 481212, 4812-12, 4820-00-200-0745, 00-200-0745, 4820002000745, 002000745

Valves | Valves, Nonpowered

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
48	01 JAN 1963	00-200-0745	05487 ( VALVE, CHECK )

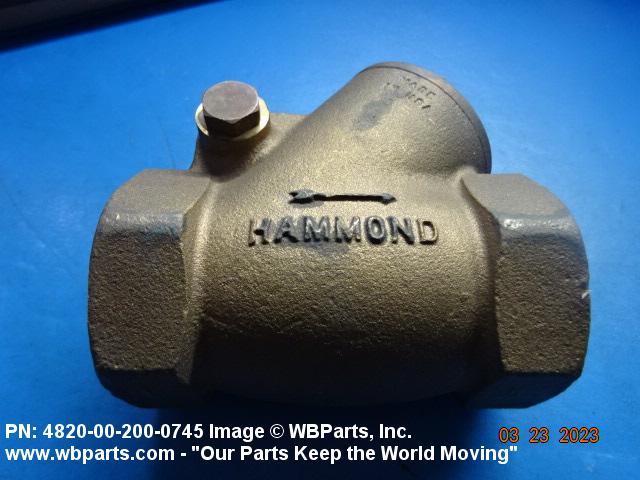

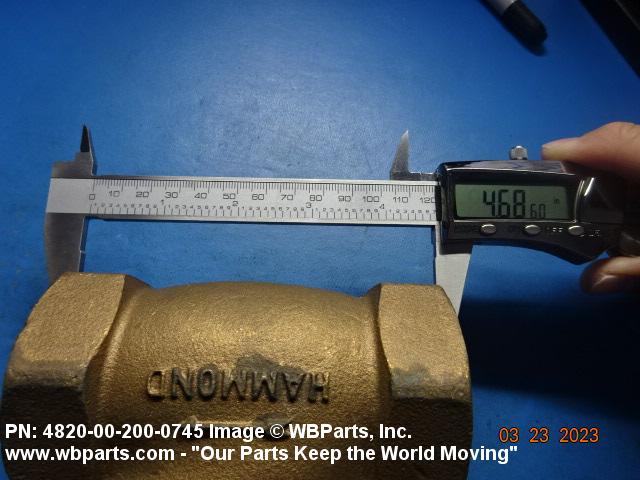

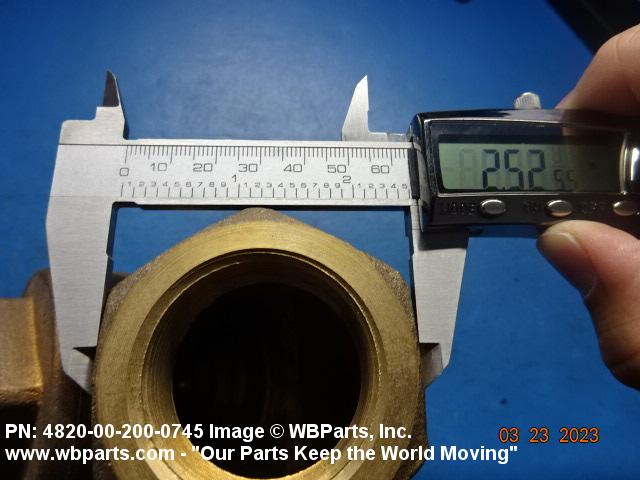

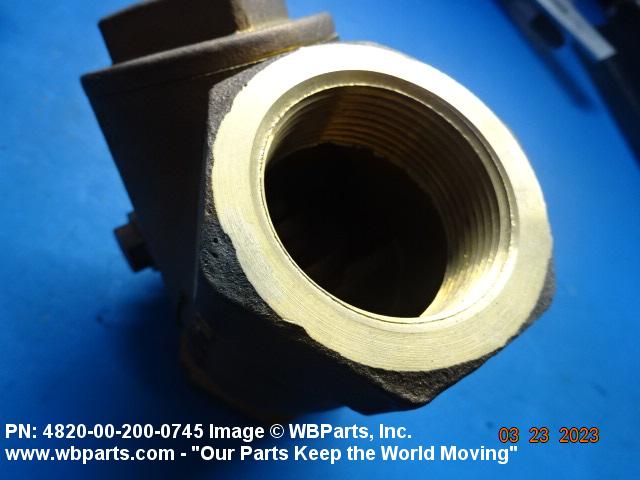

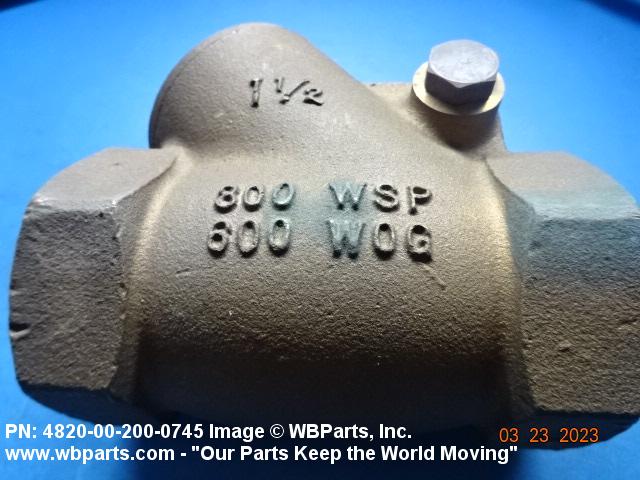

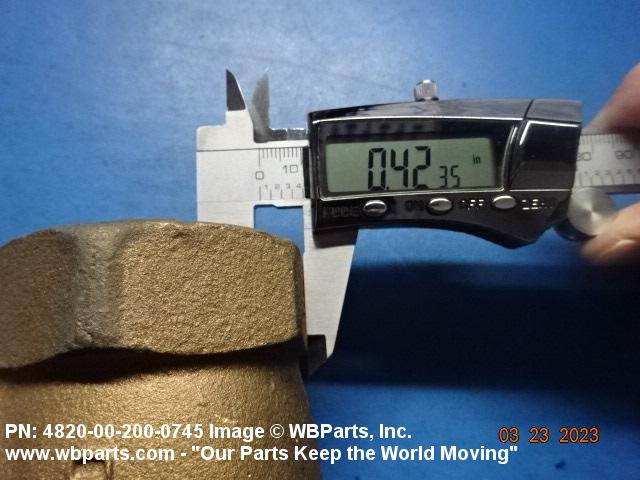

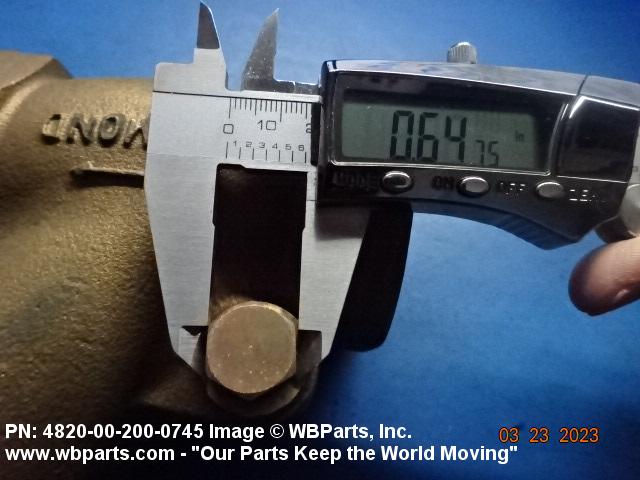

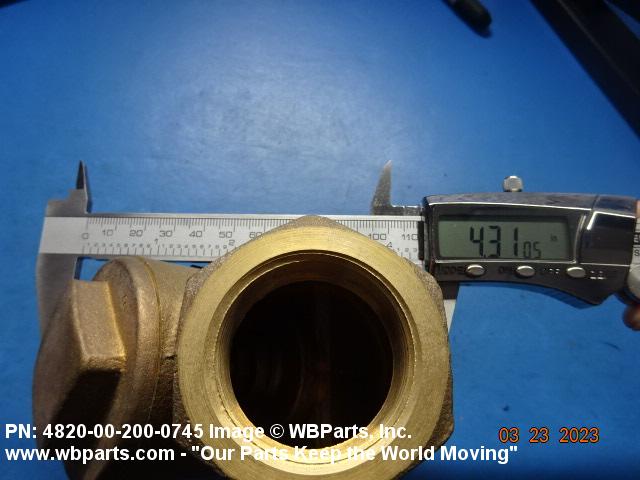

Drawings & Photos | NSN 4820-00-200-0745

Part Number	Request Date	QTY	Origin
4820-00-200-0745	2024-08-228	52	DIBBS
4820-00-200-0745	2024-08-217	52	DIBBS
103	2024-07-206	15	United States
4820-00-200-0745	2023-01-27	1	United States
4820-00-200-0745	2022-06-174	7	DIBBS
4820-00-200-0745	2022-05-128	7	DIBBS
103	2022-03-62	1	us
4820-00-200-0745	2021-03-67	25	DIBBS
4820-00-200-0745	2021-02-56	25	DIBBS
801	2019-10-275	3	UK
4820-00-200-0745	2018-10-288	42	DIBBS
4820-00-200-0745	2015-10-301	63	DIBBS
4820-00-200-0745	2015-06-165	42	DIBBS
4820-00-200-0745	2015-02-36	21	DIBBS
4820-00-200-0745	2013-08-217	36	DIBBS
420	2013-02-47	25
B345	2011-12-364	7
4820-00-200-0745	2011-03-67	7	DIBBS
4820-00-200-0745	2011-02-54	22	DIBBS
4820-00-200-0745	2011-01-21	17	DIBBS

Cross Reference | NSN 4820-00-200-0745

Part Number	Cage Code	Manufacturer
103	33216	KENNEDY VALVE DIV OF ITT GRINNELL VALVE CO INC
3412 1 1/2IN	63686	THE WALWORTH COMPANY
36	14959	CRANE CO DIV VALVE DIV
420	90664	WALWORTH CO MARINE DIV
461H	02271	WOLVERINE BRASS INC
4812-12	03670	TYCO FIRE PRODUCTS, LP DBA TYCO FIRE SUPPRESSION & BUILDING
510A2236 ITEM 3	03670	TYCO FIRE PRODUCTS, LP DBA TYCO FIRE SUPPRESSION & BUILDING
76E-1-1-2	14959	CRANE CO DIV VALVE DIV
801	78113	SCOTT VALVE MFG CO
B345	82666	STOCKHAM VALVES AND FITTINGS INC
EA15919	14959	CRANE CO DIV VALVE DIV
IB949-1-1-2	14448	HAMMOND VALVE CORP
MSS SP-80	59646	MANUFACTURERS STANDARDIZATION SOCIETY OF THE VALVE AND FITTINGS
T-413-Y 1 1-2IN FPT	12168	NORTHERN INDIANA BUSINESS SERVICES
UA-011490-99-1-50 IN	03670	TYCO FIRE PRODUCTS, LP DBA TYCO FIRE SUPPRESSION & BUILDING
UA-011490-99-1.	14959	CRANE CO DIV VALVE DIV
WW-V-51E	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
WWV51	14448	HAMMOND VALVE CORP
WWV51	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4820-00-200-0745

Compare

Related Products | NSN 4820-00-200-0745

4820-00-200-0778, 4820-00-200-0779, 4820-00-200-0822, 4820-00-200-0823, 4820-00-200-0824

Technical Data | NSN 4820-00-200-0745

Characteristic	Specifications
MATERIAL	COPPER ALLOY 836 BODY PLASTIC POLYTETRAFLUOROETHYLENE FLOW CONTROL DEVICE COPPER ALLOY 836 SEAT
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM B-62 ASSN STD SINGLE MATERIAL RESPONSE BODY ASTM B-62 ASSN STD SINGLE MATERIAL RESPONSE SEAT
STYLE DESIGNATOR	A4 STRAIGHT THRU
FLOW CONTROL DEVICE	DISK
MEDIA FOR WHICH DESIGNED	STEAM 1ST RESPONSE WATER-OIL-GAS 2ND RESPONSE
MAXIMUM OPERATING PRESSURE	200.0 POUNDS PER SQUARE INCH 1ST RESPONSE 400.0 POUNDS PER SQUARE INCH 2ND RESPONSE
MAXIMUM OPERATING TEMP	406.0 DEG FAHRENHEIT 1ST RESPONSE 100.0 DEG FAHRENHEIT 2ND RESPONSE
VALVE OPERATION METHOD	AUTOMATIC
CONNECTION TYPE	THREADED INTERNAL PIPE ALL ENDS
CONNECTION STYLE	B9 PLAIN ALL ENDS
THREAD SERIES DESIGNATOR	NPT ALL ENDS
NOMINAL THREAD SIZE	1.500 INCHES ALL ENDS
THREAD DIRECTION	RIGHT-HAND ALL ENDS
MOUNTING POSITION	HORIZONTAL OR VERTICAL
DISK LOADING METHOD	SPRING
SPECIAL FEATURES	SWING CHECK TYPE
SPECIFICATION/STANDARD DATA	59646-MSS AP-80 MANUFACTURERS STANDARD
NONDEFINITIVE SPEC/STD DATA	200 CLASS AND NPT END AND 1-1/2IN. SIZE AND 3 TYPE

Restrictions/Controls & Freight Information | NSN 4820-00-200-0745

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	051080	FAUCETS,BIBCOCKS,GATES VALVES
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4820-00-200-0745

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
