NSN 4820-00-155-7187 2837216, 00-155-7187, 001557187
Product Details | BALL VALVE
4820-00-155-7187 A multi-ported, nonlubricated valve designed to provide straight through flow or ability to direct a number of flows or pressure through a single valve. The flow is controlled by the rotation of a ported ball within a suitable ported seat(s). The ball is usually engaged by a stem. It is normally operated in an open or closed position. Excludes VALVE, CHECK.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 2837216, 4820-00-155-7187, 00-155-7187, 4820001557187, 001557187
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 17 JAN 1973 | 00-155-7187 | 20962 ( VALVE, BALL ) |
Drawings & Photos | NSN 4820-00-155-7187
Cross Reference | NSN 4820-00-155-7187
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2837216 | 12204 | DAIMLER CHRYSLER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-155-7187
Technical Data | NSN 4820-00-155-7187
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY |
| SURFACE TREATMENT | CADMIUM |

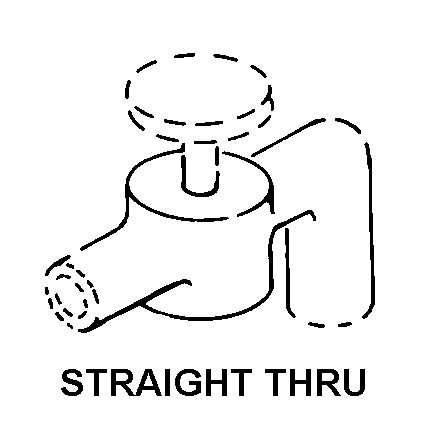

| STYLE DESIGNATOR | A20 STRAIGHT THRU |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | UNTHREADED EXTERNAL HOSE ALL ENDS |

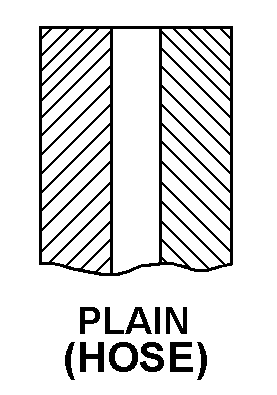

| CONNECTION STYLE | G60C PLAIN ALL ENDS |
| NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED | 0.625 INCHES ALL ENDS |
Restrictions/Controls & Freight Information | NSN 4820-00-155-7187
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-155-7187
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
