NSN 4820-00-148-4993 825479, 00-148-4993, 001484993
Product Details | FLUID PRESSURE REGULATING VALVE
4820-00-148-4993 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 825479, 4820-00-148-4993, 00-148-4993, 4820001484993, 001484993
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 29 SEP 1971 | 00-148-4993 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
Drawings & Photos | NSN 4820-00-148-4993
Cross Reference | NSN 4820-00-148-4993
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 825479 | 21292 | KELSEY-HAYES CO FABCO DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-148-4993
Technical Data | NSN 4820-00-148-4993
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | ALUMINUM ALLOY |
| SEAT MATERIAL | STEEL |
| STEM MATERIAL | STEEL |
| FLOW CONTROL DEVICE | STEM AND INTEGRAL DISK |
| FLOW CONTROL DEVICE MATERIAL | STEEL |
| OUTSIDE SURFACE TREATMENT | ANODIZED |
| END CONNECTION QUANTITY | 4 |
| FIRST END CONNECTION TYPE | UNTHREADED EXTERNAL HOSE |

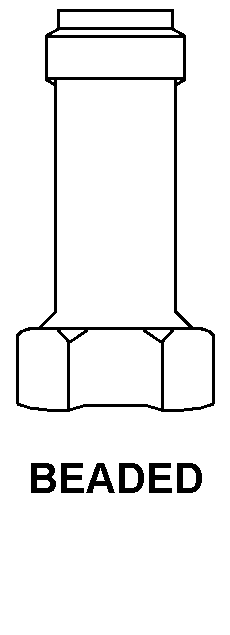

| FIRST END STYLE DESIGNATOR | E4 BEADED |
| FIRST END OUTSIDE DIAMETER HOSE ACCOMMODATED | 0.375 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| THIRD END RELATIONSHIP WITH PRECEDING ENDS | IDENTICAL WITH FIRST END |
| FOURTH END RELATIONSHIP WITH PRECEDING ENDS | NOT IDENTICAL WITH FIRST, SECOND OR THIRD END |
| FOURTH END CONNECTION TYPE | UNTHREADED EXTERNAL HOSE |
| FOURTH END STYLE DESIGNATOR | E4 BEADED |
| FOURTH END OUTSIDE DIAMETER HOSE ACCOMMODATED | 0.250 INCHES NOMINAL |

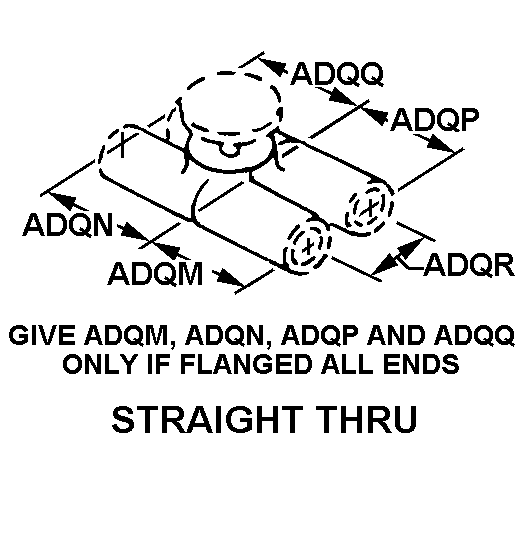

| BODY STYLE | A31 STRAIGHT THRU |
| CENTER TO CENTER DISTANCE | 0.938 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | HYDROCARBON FUELS AND OILS |
| MOUNTING FACILITY | INTERNAL THREAD |
| REGULATION TYPE | AUTOMATIC DOUBLE STAGE |
| VALVE STEM DESIGN | SINGLE SEAT |
| VALVE LOADING METHOD | SPRING |
| MAXIMUM INLET PRESSURE RATING | NOT RATED |
| OUTLET PRESSURE ACCURACY RATING | NOT RATED |
| FILTER | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 4820-00-148-4993
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127200 | PRESSURE REDCNG WATER RELIEF VALVE |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-148-4993
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
